Description
Overview:

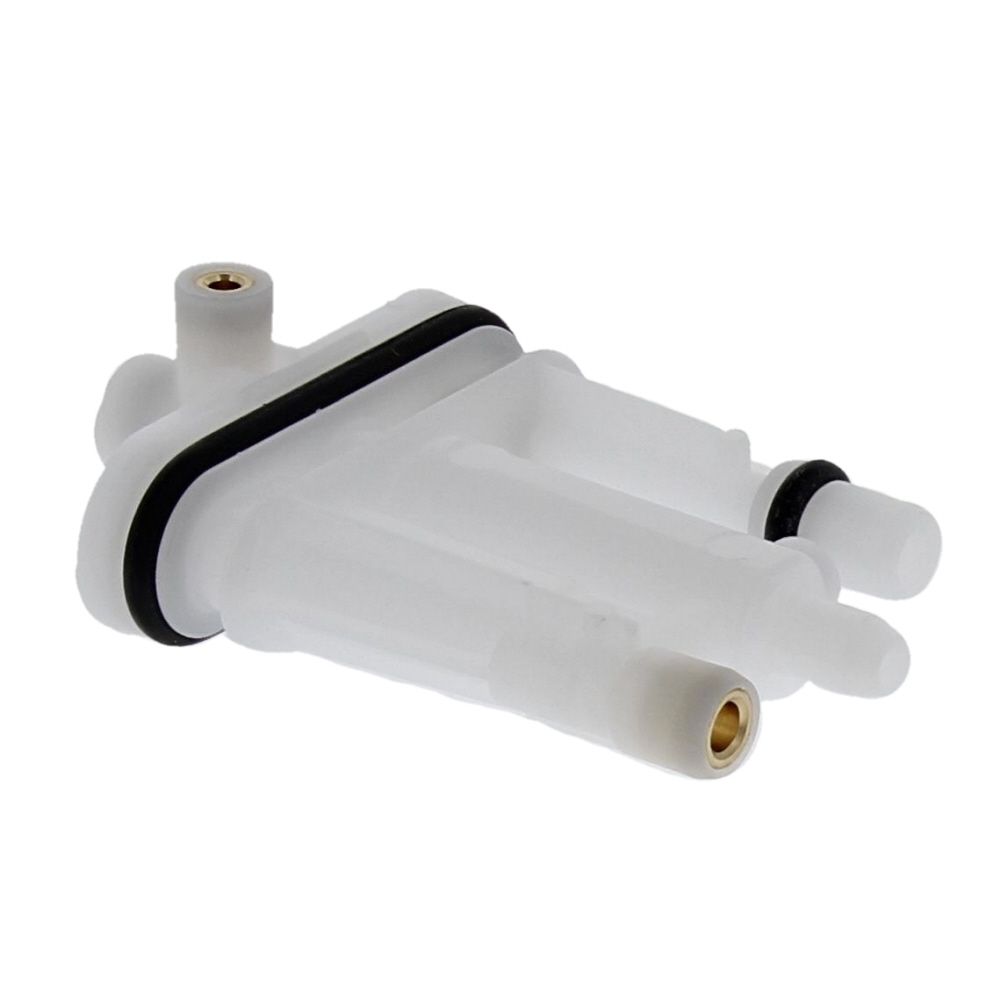

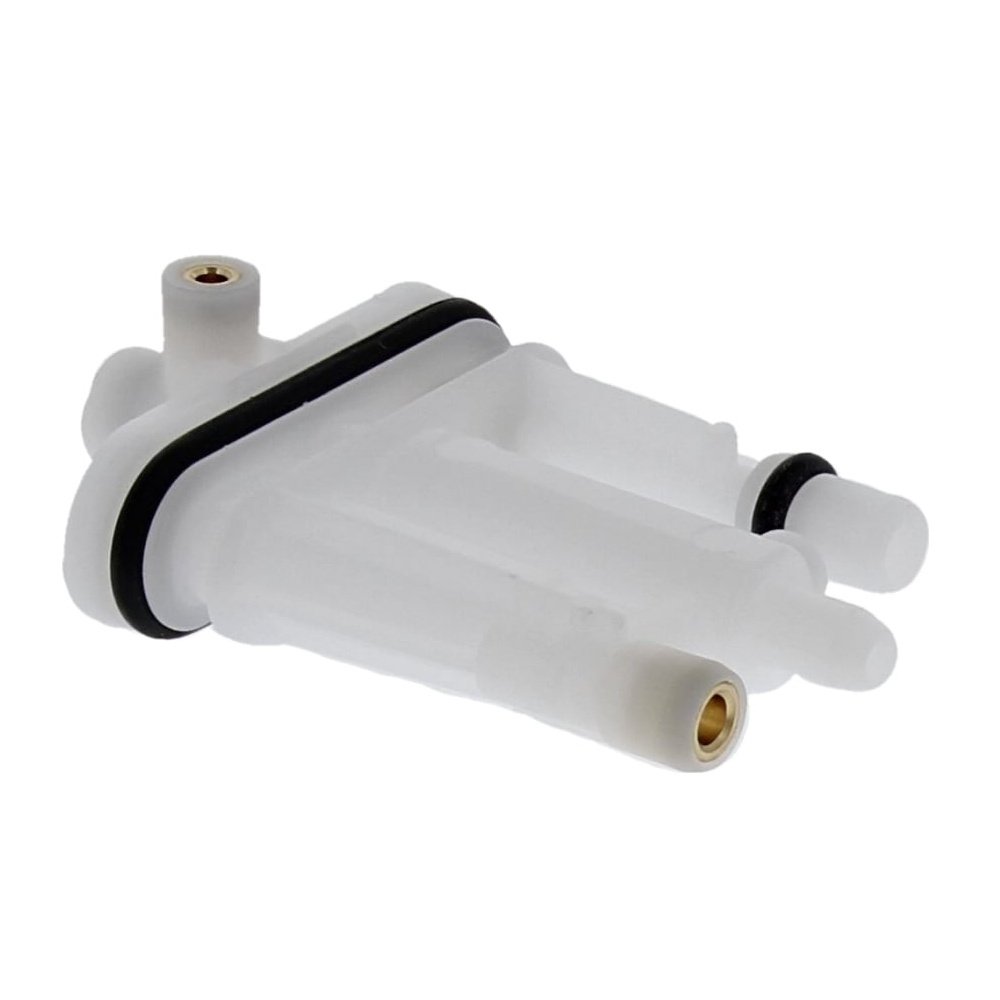

The Module, Fuel Assembly 596523 is a genuine Briggs & Stratton OEM part designed for 500C Series engines commonly fitted to walk‐behind lawn mowers and compact garden machines. Built with a robust polymer housing and corrosion‐resistant internal components, it manages and delivers petrol to the engine for reliable starting and smooth running. As a direct replacement for the original fuel module, it helps restore correct fuel flow and metering, supporting performance and fuel efficiency. Suitable for tradespeople and DIY users, this assembly is engineered to match factory specifications for the 500C Series, ensuring the right fit and function without modification. Genuine Briggs & Stratton build quality provides consistency over time, making it a practical choice for routine maintenance or repair to keep equipment dependable across the season.
Key Features:
- Genuine Briggs & Stratton OEM fuel module for 500C Series engines
- Direct replacement for OEM No. 596523 for straightforward like‐for‐like fitting
- Durable polymer construction with components designed to resist fuel and wear
- Calibrated to support reliable starting, idle stability, and smooth acceleration
- Aids consistent fuel delivery to maintain engine performance and efficiency
- Helps reduce downtime by restoring proper operation on ageing or hard‐starting engines
- Compatible with typical unleaded petrol used in small engines
- Designed for easy installation with standard hand tools, minimising setup time
Typical Applications:
Used on Briggs & Stratton 500C Series engines powering walk‐behind lawn mowers, small garden equipment, and selected light construction tools using the same engine platform. Ideal when resolving fuel‐related issues such as poor starting, uneven running, or loss of power, or when servicing engines as part of seasonal maintenance to ensure dependable operation.
Also known as:
Fuel module, fuel assembly, fuel delivery module, carburettor fuel module, fuel system module, fuel pack. These names refer to the same assembly responsible for managing and delivering petrol to the engine on compatible Briggs & Stratton small engines.
Fits Models:
Briggs & Stratton 500C Series
Alternate Part Numbers:
596523, BS596523
Product Specifications
| L&S Part No. | BS596523 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Briggs & Stratton |
| OEM No. | 596523 |
| Unit of Sale | 1 |
| Machine Type | Engines |
