Description
Overview:

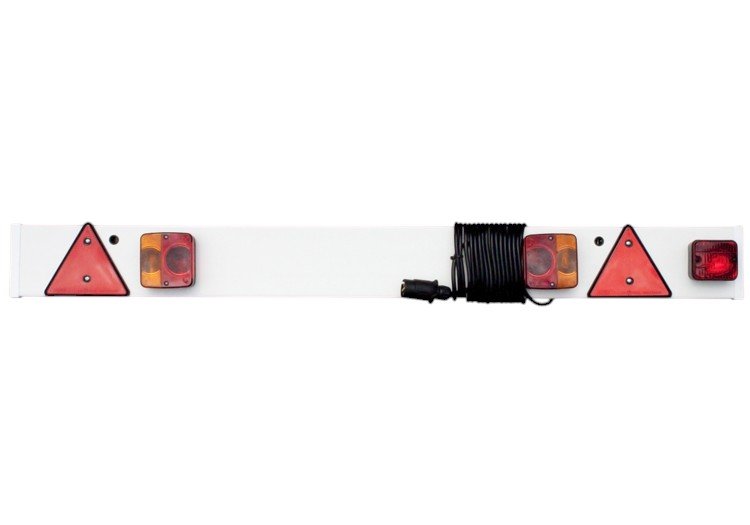

This 1.2 m trailer light board with 10 m cable and fog lamp (MPN 763 901) is a ready-wired rear lighting assembly for towed equipment. It provides stop, tail, indicator and number plate illumination via two 4-function rear lamps, with an additional rear fog lamp for low-visibility conditions. The board is supplied pre-fitted with a standard 7-pin 12 V plug for quick connection to the tow vehicle. Two triangular red reflectors are integrated to meet road visibility requirements. The 1.2 m length (approx. 47.2 in) suits small to medium trailers, while the 10 m lead (approx. 32 ft 10 in) offers ample reach for long drawbars or rear-mounted sockets on vans and pickups. E-mark approved and manufactured in the UK, it arrives bagged with a barcode for easy stores handling.
Key Features:
- Board length: approx. 1.2 m (47.2 in)
- Cable length: approx. 10 m (32 ft 10 in)
- 7-pin 12 V trailer plug fitted (Maypole MP21B)
- Two 4-function rear lamps: stop/tail/indicator/number plate (Maypole MP17B)
- Dedicated rear fog lamp included (Maypole MP22B)
- Two triangular red reflectors (Maypole MP16B)
- E-mark approved for road use
- Manufactured in the UK
- Supplied polybagged with barcode
Typical Applications:
General-purpose lighting board for small plant trailers, utility and goods trailers, boat and camping trailers, and cycle carriers. Suitable as a permanent fit or temporary replacement when fixed trailer lights are damaged. Connects to tow vehicles with a standard 7-pin 12 V socket; not suitable for 24 V systems.
Also known as:
Trailer Lighting Board With Fog
1.2 m Light Board With 10 m Cable
7-Pin Trailer Board 12 V
Maypole part number MP256P4F10M
Product Specifications
| L&S Part No. | 763 901 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
