Description
Overview:

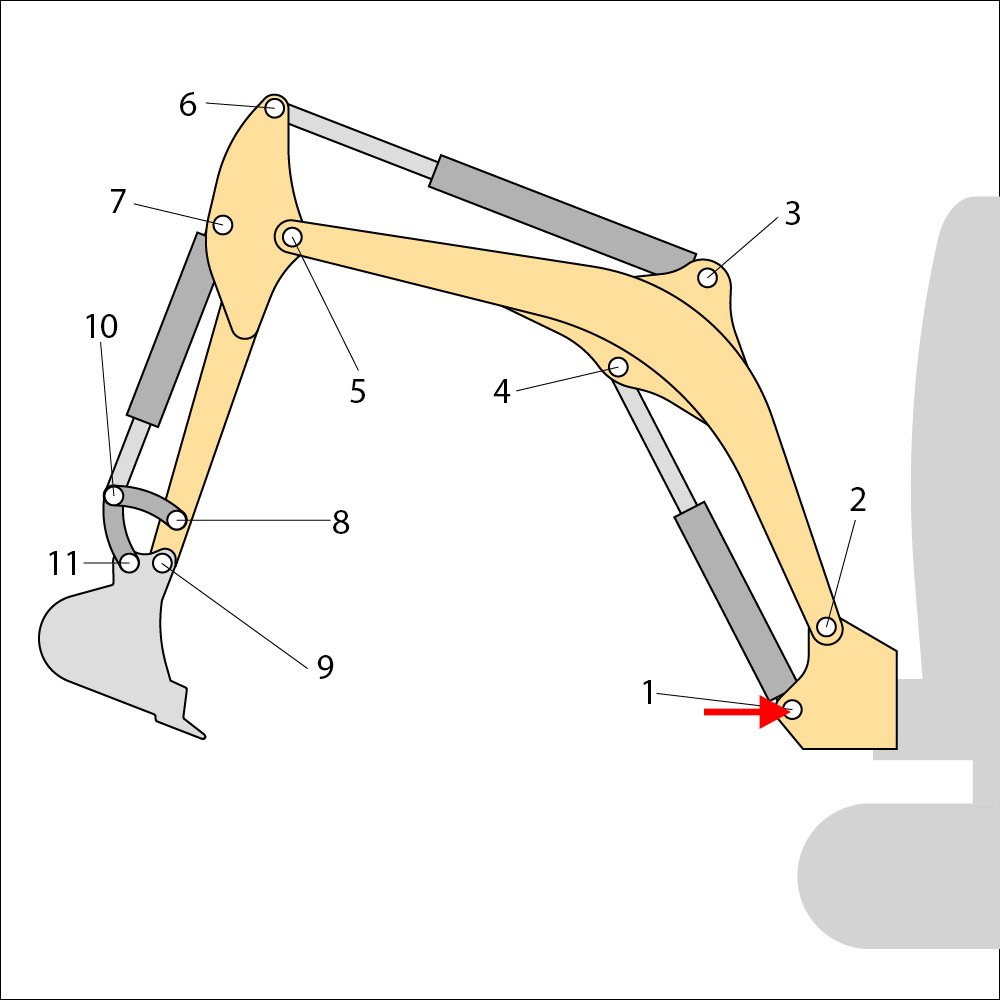

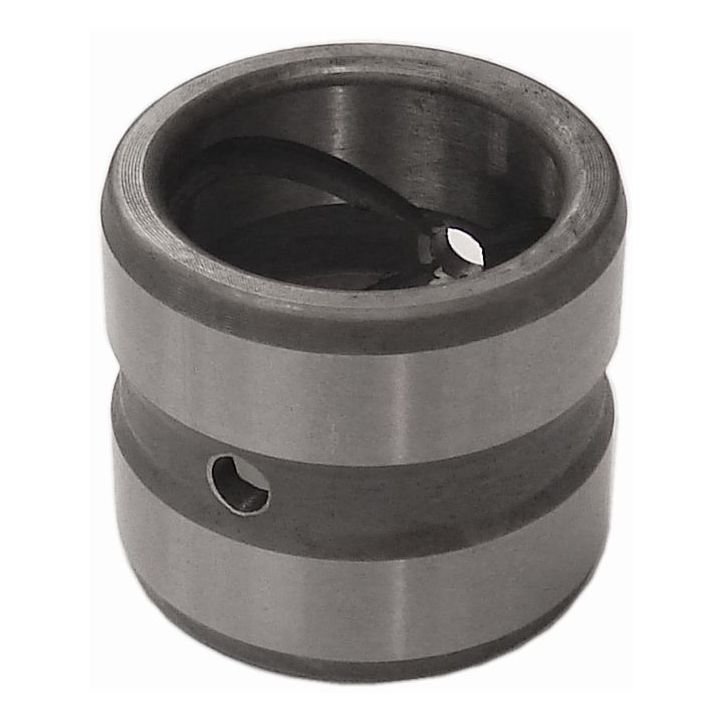

This non-genuine Bush (Position 1) is a plain bearing sleeve for JCB 8018 SUPER mini excavators. Made from a durable bronze alloy, it supports a rotating pin and creates a smooth bearing surface between the pin and the housing, helping to reduce friction and wear in high-load pivot points. The bush measures 30 mm inner diameter, 40 mm outer diameter, and 34 mm length, matching common JCB linkage dimensions for straightforward maintenance. Supplied under MPN 202 1453, it is a cost-effective, like-for-like size replacement that helps keep your machine working accurately. Suitable for routine service or refurbishments on the JCB 8018 SUPER and 8018SUPER, it is designed for press-fit installation into a correctly sized bore and use with a 30 mm pin.
Key Features:
- Non-genuine replacement part for cost-effective maintenance
- Bronze alloy construction for reliable wear resistance and smooth running
- Dimensions: 30 mm I/D x 40 mm O/D x 34 mm length for direct-size replacement
- Helps minimise play and wear at pivot points and linkages
- Supports rotating shafts and reduces friction between pin and housing
- Simple press-fit installation into a 40 mm bore with a 30 mm pin
- Suitable for greased pivot assemblies on compact excavators
- A practical choice to restore accuracy and protect bores and pins
- Matches MPN 202 1453 for easy identification
Typical Applications:
Used at pivot joints on mini excavators where a 30 mm pin runs in a 40 mm bore, such as linkages and other rotating points. Ideal when refurbishing worn joints to restore smooth movement, reduce noise, and extend service life. Suitable for scheduled maintenance or reactive repairs to keep the 8018 SUPER operating efficiently.
Also known as:
Plain bush, sleeve bearing, plain bearing, pivot bush, shaft bush, bearing sleeve, linkage bush, excavator pivot liner.
Fits Models:
8018 SUPER, 8018SUPER
Product Specifications
L&S Part No. | 202 1453 |
---|---|
Part Type | Non Genuine Part |
Unit of Sale | 1 |
Size | I/D: 30 x O/D: 40 x Length: 34mm |
Applications | 8018 Super, 8018SUPER |
Machine Type | Excavators |
Fits Brands | JCB |
Fits Models | 8018 Super |
