Description
Overview:
This Bush (Position 3 Ram) is a durable metal sleeve designed for the hydraulic ram pivot on JCB 16C-1 mini excavators, also suitable for the closely related 16C1 model. It supports the ram eye and pin, helping to control play, maintain alignment, and reduce wear on mating components. The part is engineered for consistent sizing so it fits accurately in the cylinder or bracket bore, restoring smooth movement in the linkage. Built for worksite use, it withstands shock loads and abrasive conditions typically found in construction and landscaping. This is a Non-Genuine Part, offering a cost-effective replacement for routine maintenance or repairs while keeping your machine productive and responsive.
Key Features:
- Non-genuine replacement for budget-friendly maintenance without compromising function
- Robust metal construction for long service in tough site conditions
- Precision sizing to help minimise play and protect pins and housings
- Supports hydraulic cylinder alignment for smoother boom and dipper operation

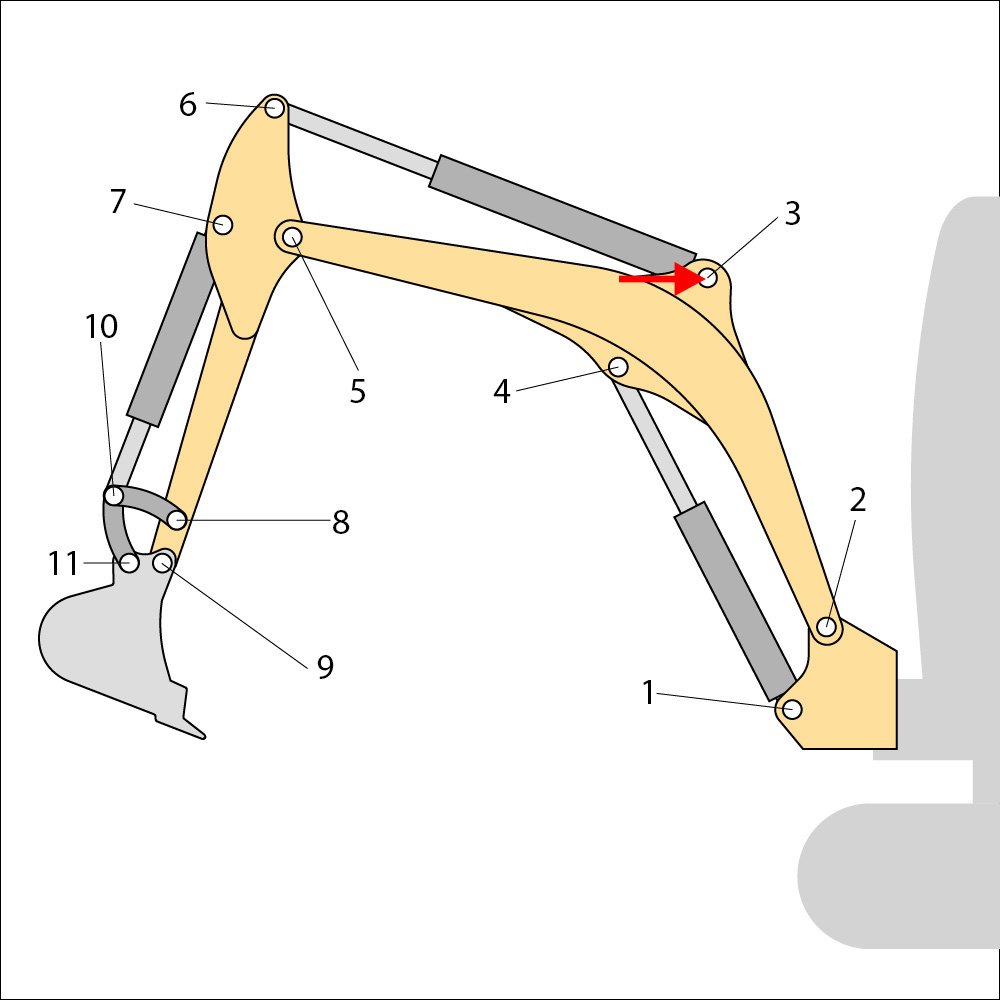

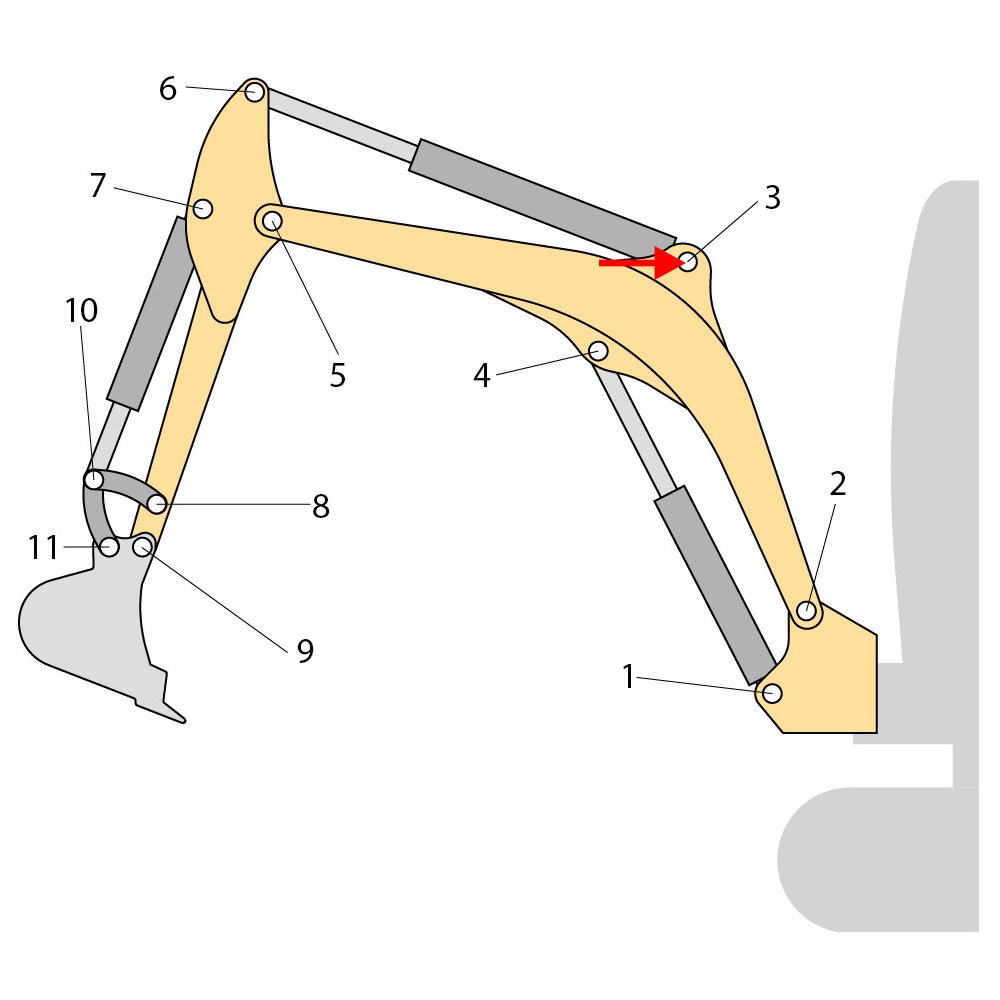

- Suitable for JCB 16C-1 and 16C1 mini excavators at the Position 3 ram location
- Designed for straightforward fitting with standard workshop tools
- Helps extend the life of pins, seals, and related pivot components
- Stable press-fit style installation when fitted to a clean, correctly sized bore
- Ideal for scheduled overhauls or quick fixes to reduce downtime
Typical Applications:
Used when the ram pivot develops noticeable play, pin wear, or noise. Common during refurbishment of the boom or dipper hydraulic cylinder connections on mini excavators working on trenching, footings, utilities, landscaping, or site clearance. Restores tight, controlled movement and helps maintain precise bucket and attachment control.
Also known as:
Hydraulic ram bush, position 3 bushing, hydraulic cylinder bushing, cylinder eye bush, ram pivot bush, pivot sleeve, boom/dipper ram bush, excavator ram bearing sleeve.
Fits Models:
16C-1, 16C1
Product Specifications
| L&S Part No. | 202 1036 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 16C-1, 16C1 |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 16C-1 |
