Description
Overview:

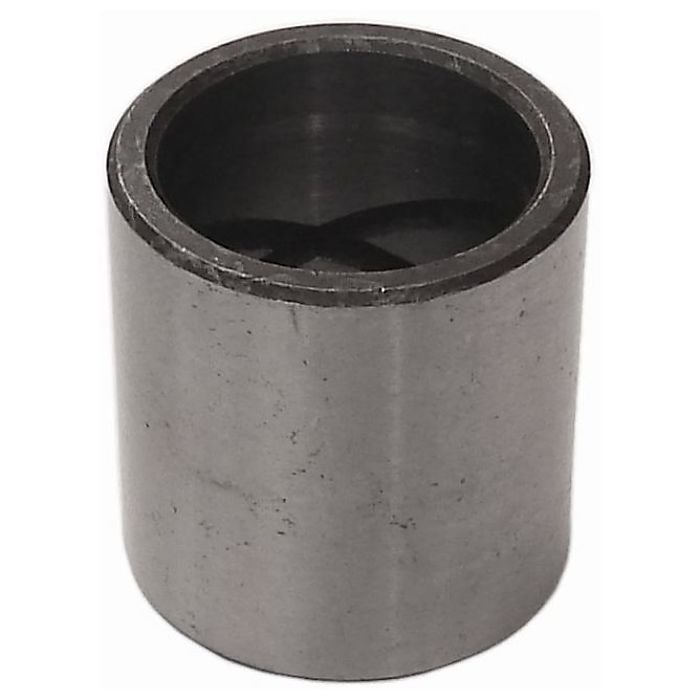

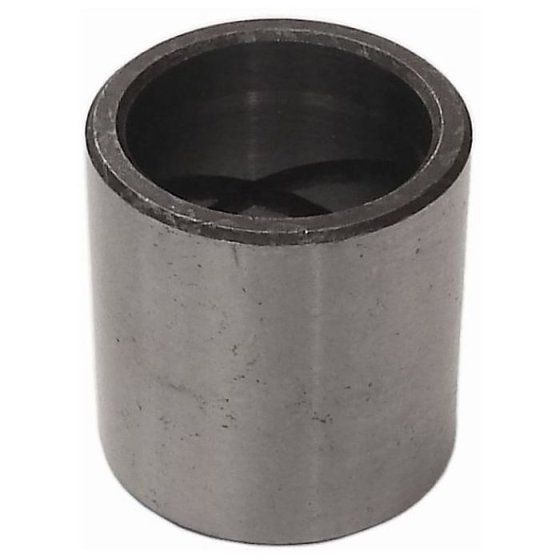

The Bush (Position 5) is a non-genuine replacement part for JCB 8016 SUPER mini excavators. It is a durable, precision-machined metal sleeve designed to provide rotational support at pivot joints, helping to reduce friction, play, and wear during daily operation. With an internally lubricated design, it supports smooth movement under load and helps maintain consistent performance in tough site conditions. Key dimensions are 30 mm internal diameter, 38 mm outer diameter, and 40 mm length, allowing a proper press-fit in the housing and correct clearance on the mating pin. Suitable for JCB 8016 Super and 8016SUPER machines, this bush helps restore tight joint tolerances and is well suited to routine maintenance or planned overhaul work where reliability and ease of fitting are important.
Key Features:

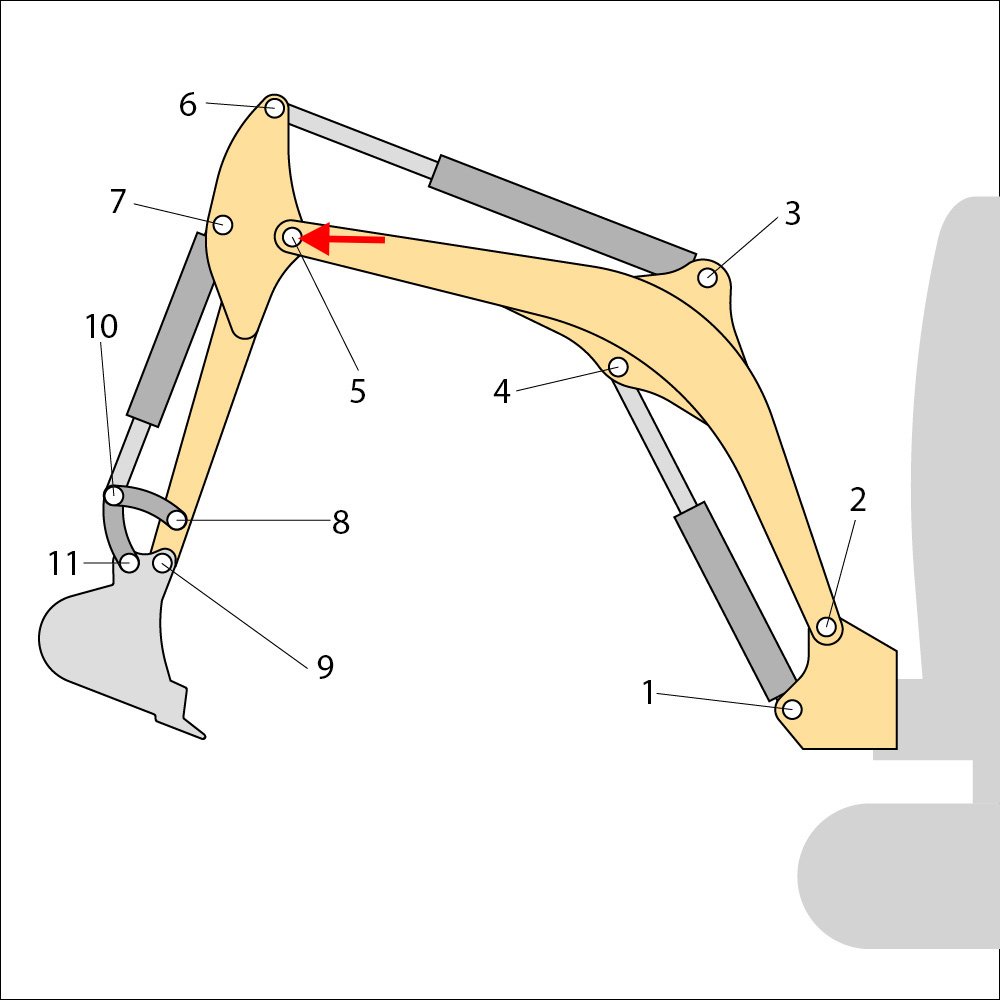

- Non-genuine compatible bush for JCB 8016 SUPER mini excavators, often referenced as Position 5 in parts diagrams
- Dimensions: 30 mm internal diameter, 38 mm outer diameter, 40 mm length
- Internally lubricated design for consistent grease distribution and reduced maintenance
- Precision-machined bearing surface for smooth rotation and reduced joint play
- Robust metal construction to handle shock loads and abrasive on-site conditions
- Helps reduce friction and wear, extending the life of pins and linkages
- Straightforward replacement; suitable for press-fit installation with correct tools
- Supports efficient operation where frequent articulation and load cycles are present
- Suitable for use during routine service schedules or component overhauls
Typical Applications:
Used at pivot points and linkages on the 8016 platform where a rotating pin runs in a housing, such as boom, dipper, bucket, or frame-mounted joints. Ideal for restoring smooth articulation, reducing backlash, and protecting mating components on compact excavators working in construction, landscaping, utilities, and hire fleets.
Also known as:
Plain bearing, bearing bush, pivot sleeve, wear sleeve, liner, bearing insert, rotary sleeve, journal bush, pivot bearing.
Fits Models:
8016 Super, 8016SUPER
Alternate Part Numbers:
809 00108, 809-00108, 809/00108, 80900108
Product Specifications
| L&S Part No. | 202 1524 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 8016 Super, 8016SUPER |
| Machine Type | Excavators |
| Fits Brands | JCB, Kubota |
| Fits Models | 8016 Super |
