Description
Overview:

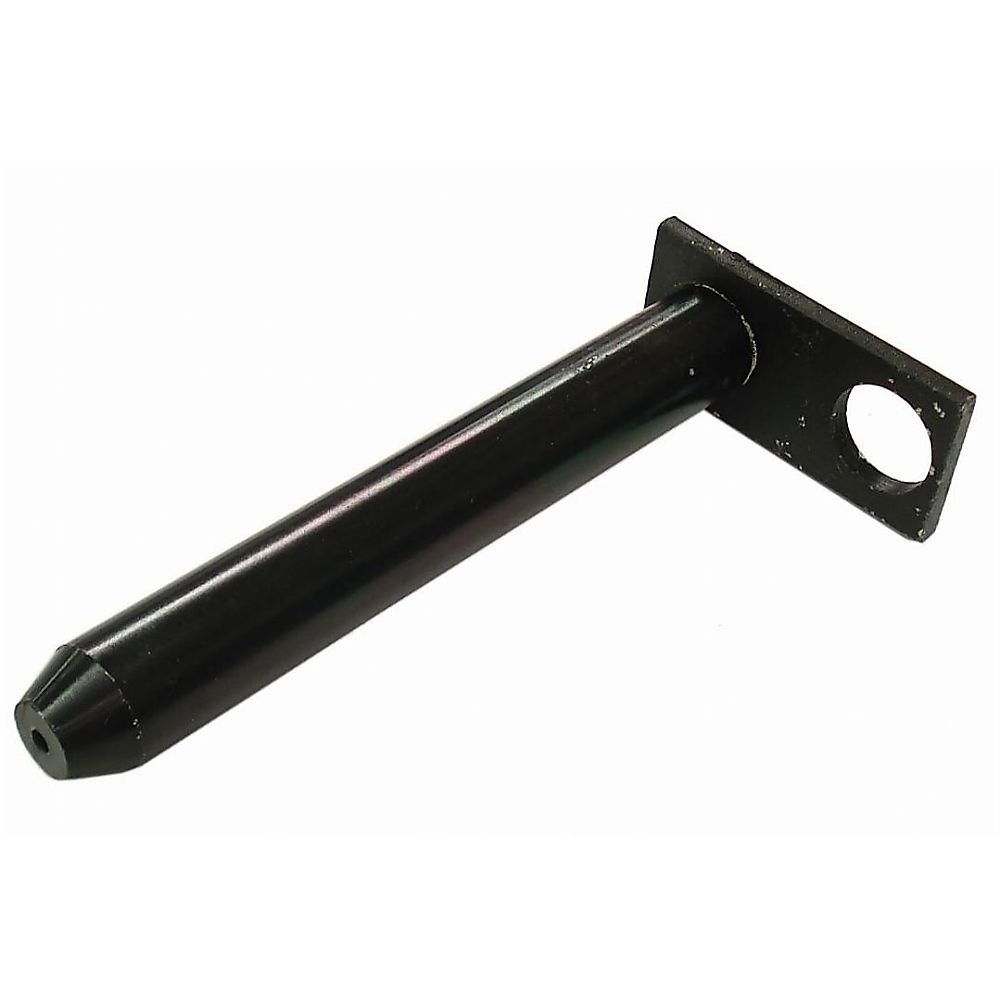

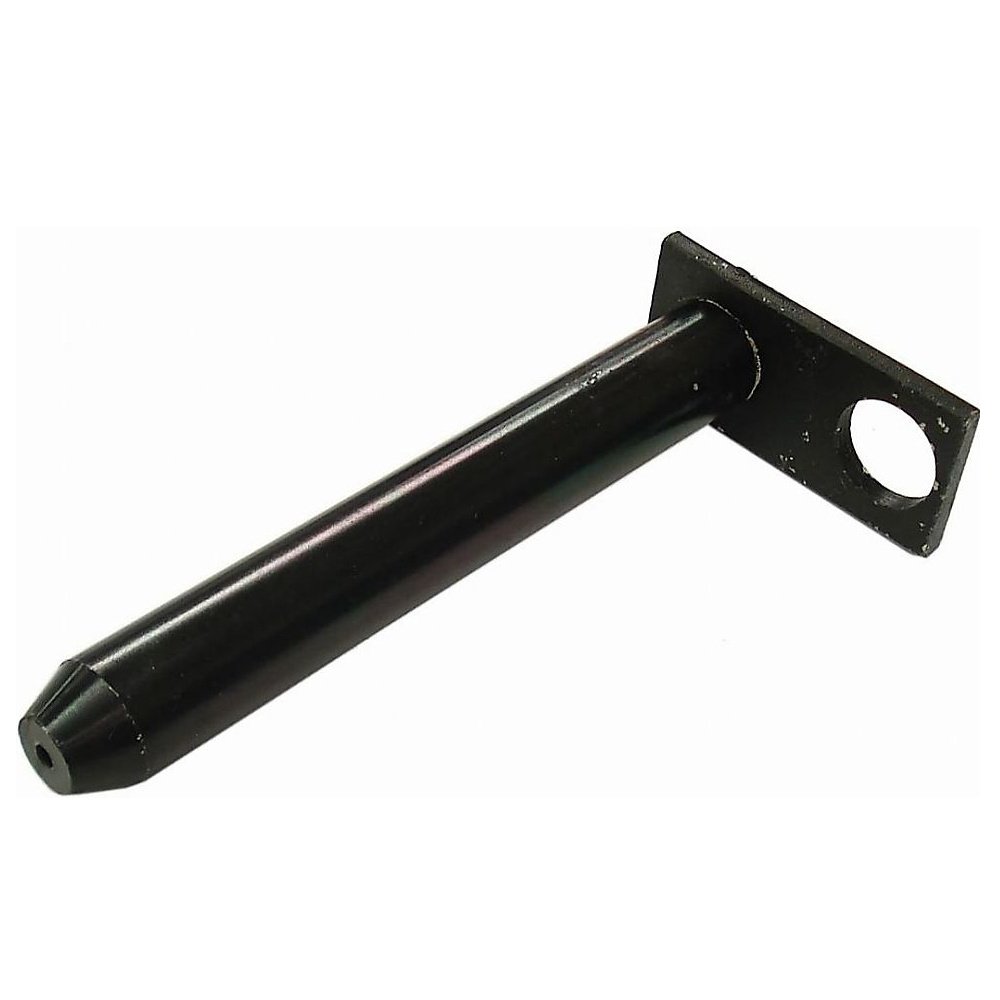

This Pin (Position 11) is a non-genuine replacement part for JCB mini excavators, built for the arm or linkage point specified as Position 11. Engineered from durable steel with an integral stop plate, it helps keep the arm movement accurate and controlled, reducing play and wear in service. It suits the JCB 801.6 and 8016 models and is a practical choice for routine maintenance or timed replacement. Key dimensions are: overall pin length 180 mm (7.09 inches), through-hole diameter 25 mm (0.98 inches), and plate size 80 x 40 mm (3.15 x 1.57 inches). The part cross-references MPN 202 1464 and offers reliable fitment where the original specification is required, while providing a cost-effective, Non Genuine Part option.
Key Features:
- Non Genuine Part offering good value without compromising fit
- Steel construction with integral plate for robust service life
- Pin length 180 mm (7.09 inches) for correct seating in the joint
- 25 mm (0.98 inches) hole diameter for precise alignment
- Plate 80 x 40 mm (3.15 x 1.57 inches) for positive retention
- Helps restore smooth arm and linkage movement
- Reduces play to protect bushes and mating components
- Made to suit the Position 11 location on the assembly
- Compatible with JCB 801.6 and 8016 mini excavators
- Easy to install using standard workshop tools
Typical Applications:
Used to replace worn or damaged arm/linkage pins on JCB mini excavators, restoring accurate pivoting of the boom, dipper, or bucket linkage. Ideal during scheduled maintenance, after bushing renewal, or when addressing excessive play, vibration, or uneven wear to maintain digging accuracy and reduce downtime on site or in the yard.
Also known as:
Pivot pin, arm pivot pin, bucket linkage pin, boom linkage pin, mounting pin, arm retaining pin, linkage pivot, machine pin, JCB mini digger pin, arm connection pin.
Fits Models:
801.6, 8016
Alternate Part Numbers:
333/S7610, 333S7610
Product Specifications
| L&S Part No. | 202 1464 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 801.6, 8016 |
| Machine Type | Excavators |
| Fits Brands | Case, JCB, Kubota |
| Fits Models | 801.6 |
