Description
Overview:

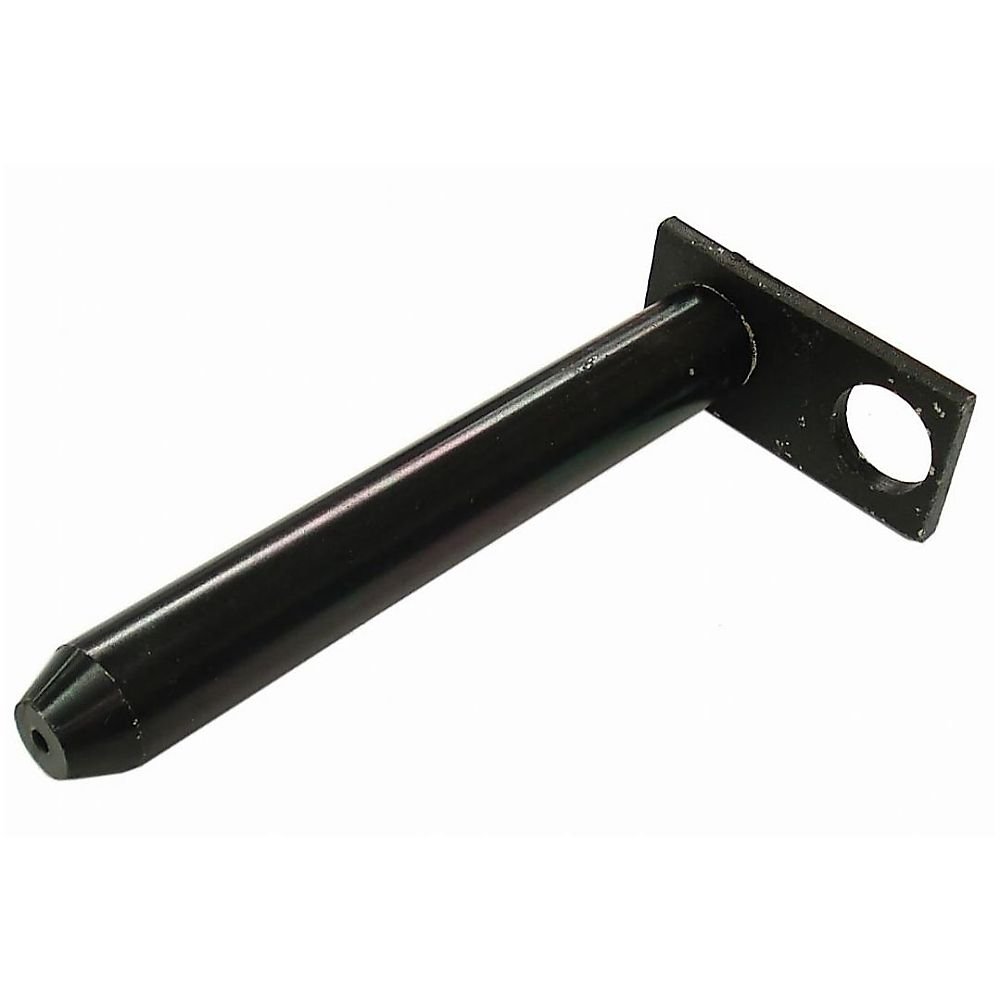

This Position 11 pin is a direct-fit replacement for JCB 8018 CTS mini excavators. Built from high-strength steel, it supports accurate alignment and smooth articulation at the pivot point it serves, helping to reduce play and premature wear across the linkage. Precision-machined surfaces allow consistent fit with mating bushes and brackets, aiding reliable operation in demanding site conditions. Key dimensions are Pin Length 180 mm (7.09 inches), Hole Diameter 25 mm (0.98 inches), and Plate size 80 mm x 40 mm (3.15 inches x 1.57 inches). It is designed to replace a worn or damaged pin during routine maintenance or rebuilds, restoring correct geometry and helping protect associated parts on the JCB 8018 CTS.
Key Features:
- Direct replacement for Position 11 on JCB 8018 CTS, supporting correct alignment and load transfer
- High-strength steel construction suited to frequent pivoting and shock loads
- Precision-machined for a snug fit, helping minimise play and vibration in the linkage
- Easy to fit for straightforward maintenance and reduced downtime
- Pin length: 180 mm (7.09 inches) for correct stack-up in the assembly
- Hole diameter: 25 mm (0.98 inches) for proper mating with the corresponding fixing or bush
- Plate dimensions: 80 mm x 40 mm (3.15 inches x 1.57 inches) for secure retention and seating
- Helps extend service life of bushes and brackets by maintaining proper alignment
- Suitable for daily site use, lifting, grading, and trenching tasks typical of compact excavators
Typical Applications:

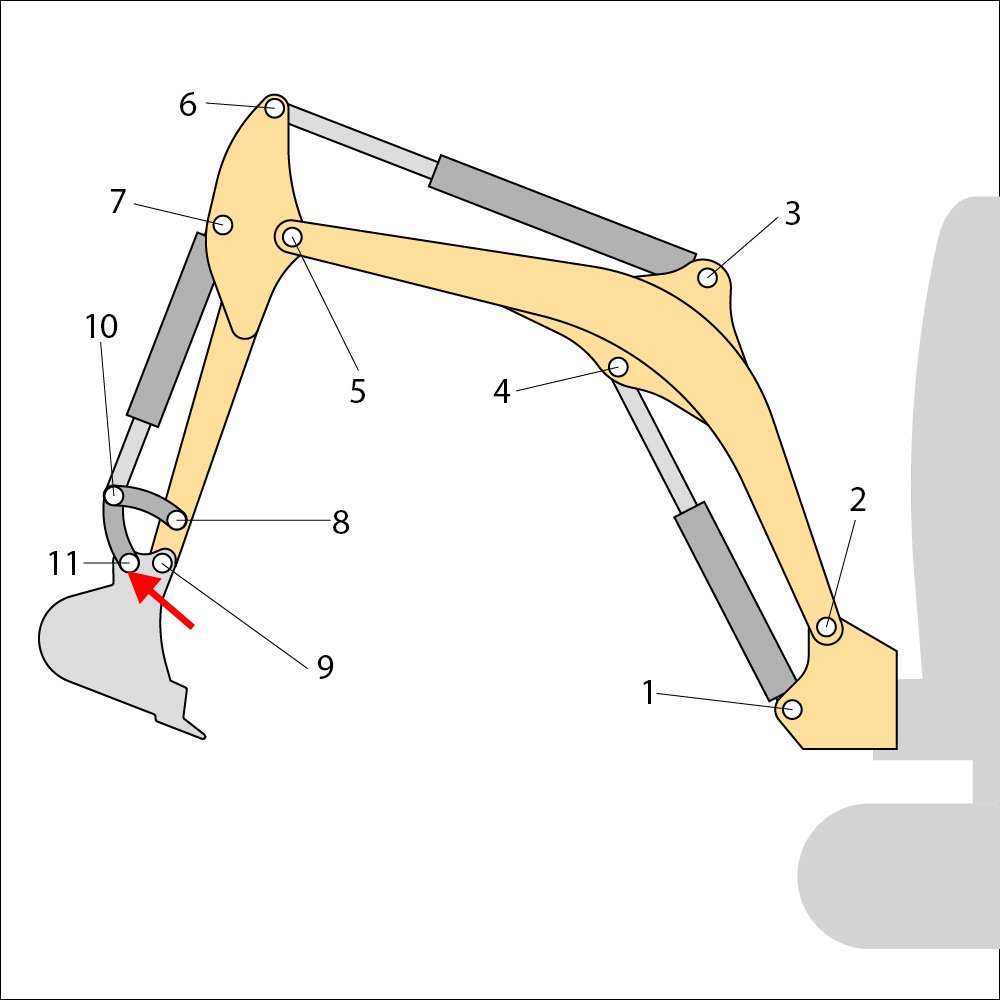

Used at the specified pivot point on the JCB 8018 CTS to restore or maintain smooth movement in the boom, dipper, or bucket linkage (as per Position 11 in the assembly). Ideal during pin-and-bush overhauls, collision repairs, or scheduled maintenance to reduce slack, improve digging accuracy, and protect adjoining components.
Also known as:
Excavator linkage pin, bucket linkage pin, dipper pin, machine pivot pin, JCB 8018 pin, replacement pivot pin for mini excavators, Position 11 pivot pin.
Fits Models:
JCB 8018 CTS
JCB 8018CTS
Alternate Part Numbers:
333/S7610, 333S7610
Product Specifications
| L&S Part No. | 202 1084 |
|---|---|
| Unit of Sale | 1 |
| Applications | 8018 CTS, 8018CTS |
| Machine Type | Excavators |
| Fits Brands | Case, JCB, Kubota |
| Fits Models | 8018 CTS |
