Description
Overview:

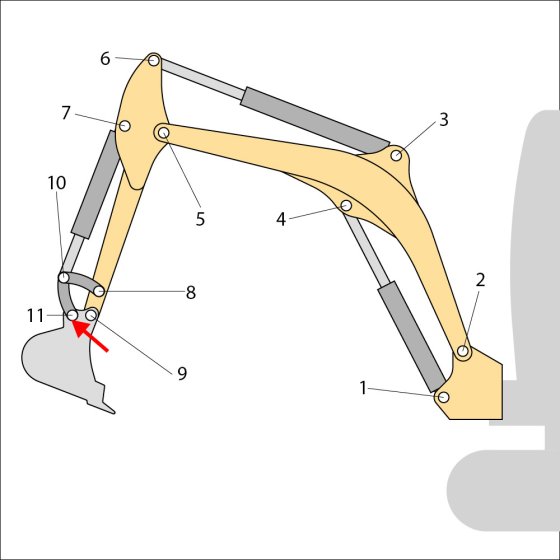

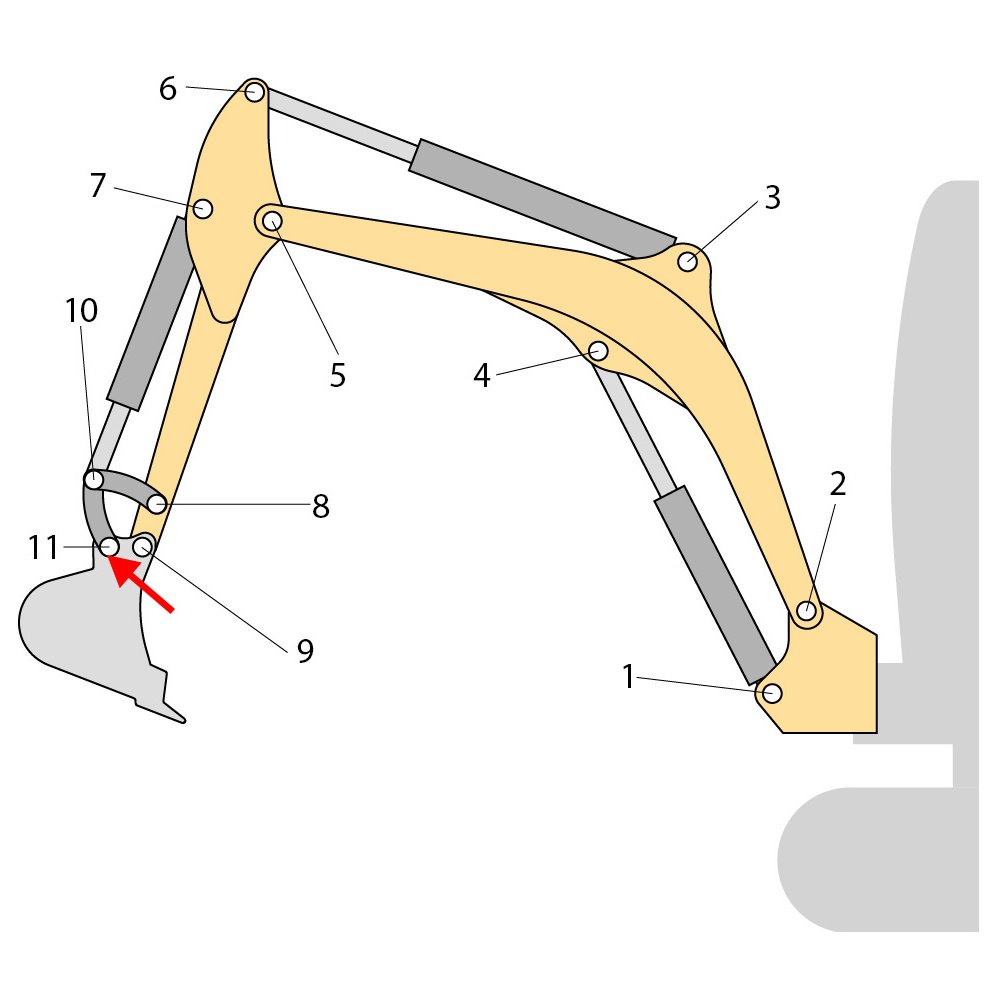

The Pin (Position 11) for JCB 86C-1 mini excavators is a heavy‐duty cylindrical linkage pin used in the front working gear of the machine. Manufactured from high‐strength steel and precision machined, it supports smooth pivoting and accurate control across the arm assembly. Fitted wherever the parts diagram shows Position 11, it links components such as the boom, dipper or bucket linkage, depending on the build. This is a Non Genuine Part that offers a reliable and cost‐effective option for routine maintenance on JCB 86C-1 and 86C1 models. When installed with the correct bushes, shims and seals, it helps minimise play, reduce wear and keep the excavator responsive under load. Suitable for trade users and DIY repairs, it fits using standard workshop tools and normal service procedures.
Key Features:
- Non Genuine Part compatible with JCB 86C-1 and 86C1
- High‐strength steel construction for durability under heavy loads
- Precision‐machined surfaces for an accurate fit in OEM housings
- Supports smooth articulation when correctly greased and bushed
- Designed to work with the original retention method on the machine
- Straightforward replacement to reduce downtime on site
- Helps restore tightness in worn pivots and reduce knocking
- Cost‐effective alternative to an OEM pin for regular maintenance
Typical Applications:
Used during arm and linkage overhauls, routine servicing, and repairs of worn pivot points on JCB 86C-1 mini excavators. Suitable when a pin is bent, scored or undersize, after bush replacement, or to correct excessive play at the boom, dipper, crowd or bucket linkages. Useful as a service spare for workshop or field repairs.
Also known as:
Excavator arm pin, linkage pin, pivot pin, dipper pin, boom pin, bucket linkage pin, Position 11 hinge pin, JCB 86C-1 arm pin, mini excavator linkage pin.
Fits Models:
86C-1
86C1
Product Specifications
| L&S Part No. | 202 1489 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Key Features | - Compatible with JCB 86C-1 and 86C1 models - High-strength steel for durability under heavy loads - Precision-machined for accurate fit in OEM housings - Supports smooth articulation with correct greasing - Cost-effective alternative to OEM pin for maintenance |
| Fits Models | 86C-1 |
