Description
Overview:

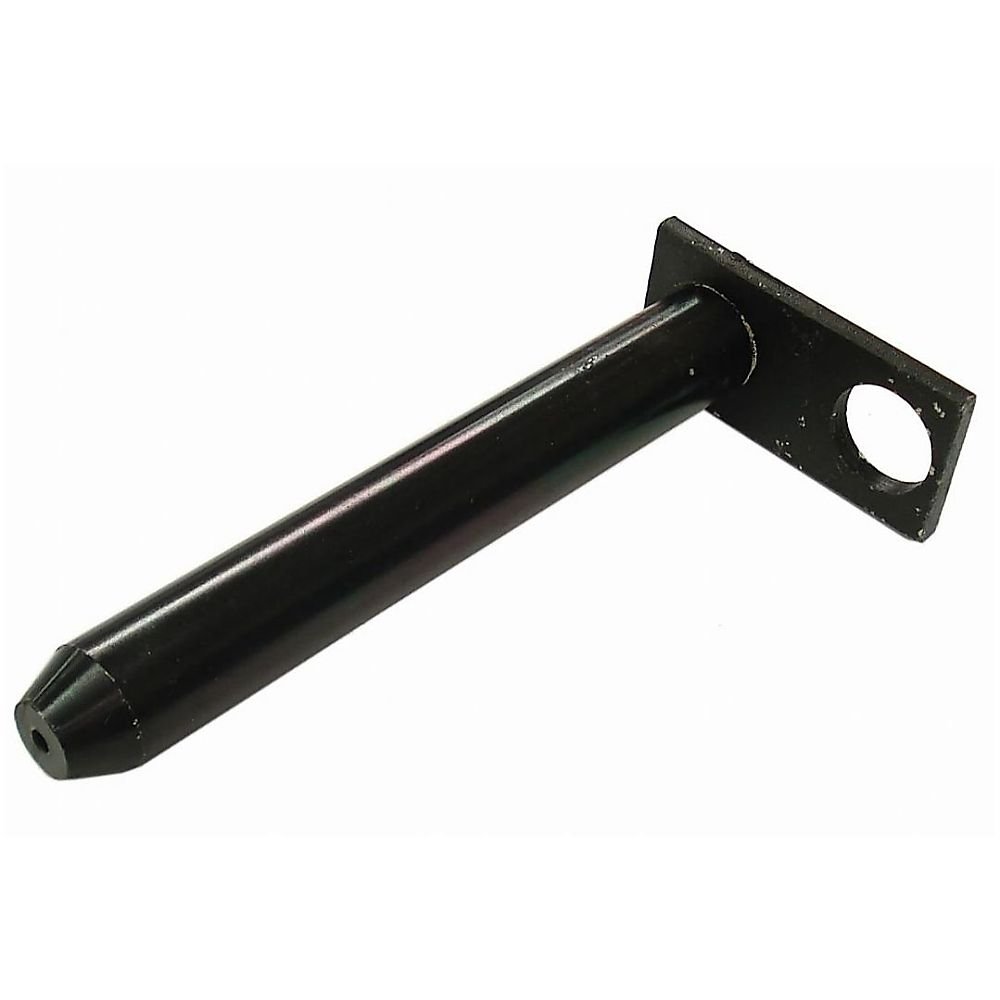

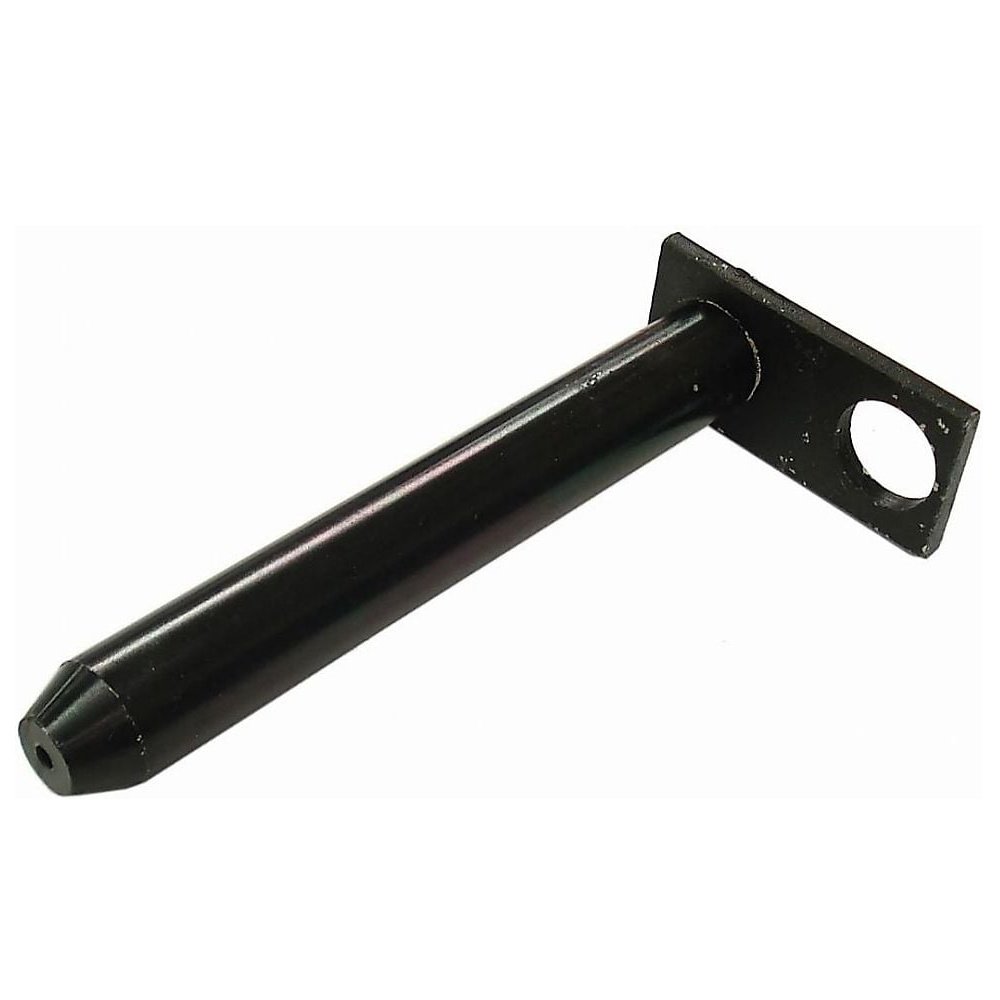

This Pin (Position 9) is a non-genuine replacement part for JCB 801.6 and 8016 mini excavators. Manufactured from robust steel, it is used to locate and secure components so that linkages remain correctly aligned under load. The pin includes a rectangular mounting plate for positive location where a plate-retained pin is specified in the parts diagram (position 9). Key dimensions are: pin length 180 mm (7.09 inches), mounting hole diameter 25 mm (0.98 inches), and plate size 80 x 40 mm (3.15 x 1.57 inches). Built for site use, it helps restore smooth, precise movement when the original pin has worn oval or corroded, supporting reliable operation of front-end equipment and associated brackets on your JCB mini excavator.
Key Features:
- Non-genuine replacement compatible with JCB 801.6 and 8016 models
- Strong steel construction designed for demanding jobsite conditions
- Accurate dimensions: 180 mm (7.09 inches) pin length; 25 mm (0.98 inches) hole diameter; 80 x 40 mm (3.15 x 1.57 inches) plate
- Helps maintain correct alignment of pins, bushings, and linkages for smooth operation
- Machined for a consistent fit to reduce play and premature wear
- Suitable replacement when the original pin is bent, worn, or seized
- Straightforward to fit with standard hand tools; no modifications typically required
- Supports reliable attachment retention where a plate-retained pin is specified
- Cost-effective way to extend service life of the linkage assembly
Typical Applications:
Used to secure and align linkage points and brackets on JCB mini excavators where a position 9 plate-retained pin is specified. Commonly fitted around working equipment linkages to restore tightness and prevent excessive play, improving control when digging, grading, or handling attachments.
Also known as:
Excavator pivot pin, linkage pin, boom pin, dipper arm pin, mounting pin, retention pin, fixing pin, plate-retained pin.
Fits Models:
801.6, 8016
Alternate Part Numbers:
333/S7610, 333S7610
Product Specifications
| L&S Part No. | 202 1463 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 801.6, 8016 |
| Machine Type | Excavators |
| Fits Brands | Case, JCB, Kubota |
| Fits Models | 801.6 |
