Description
Overview:

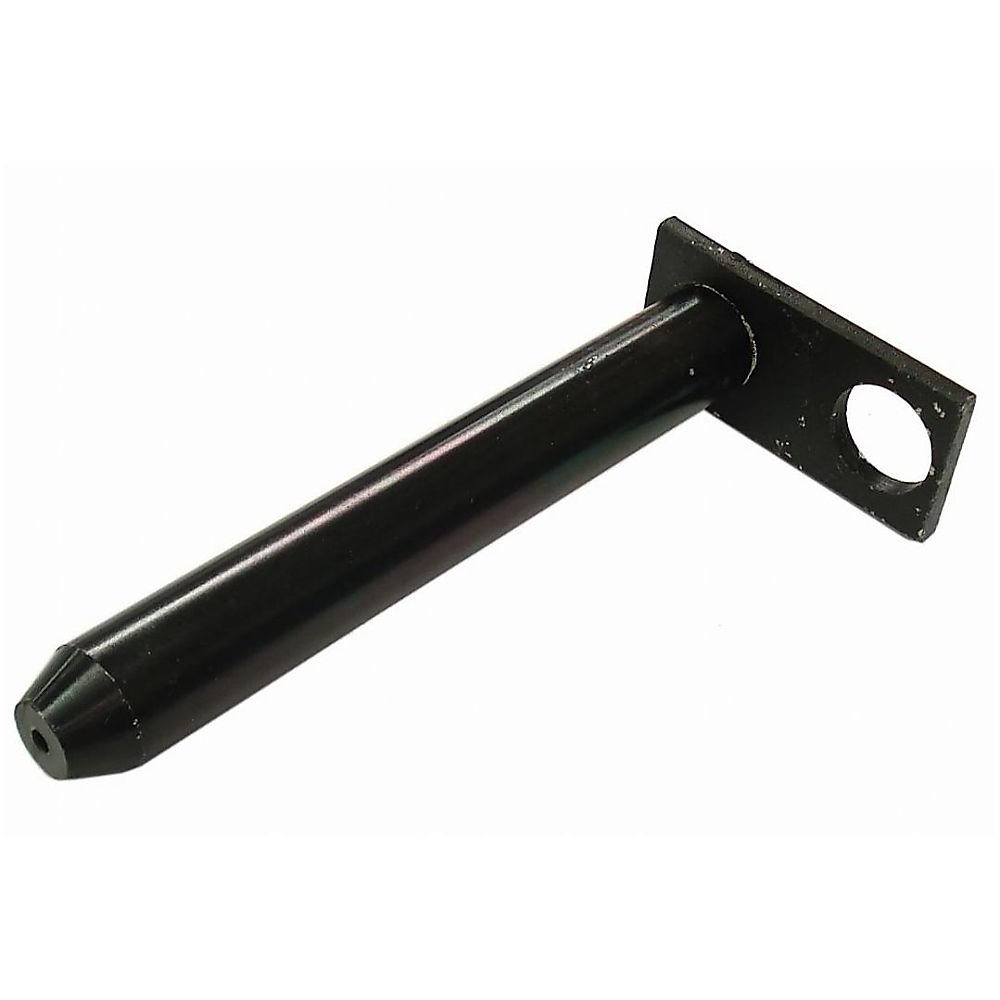

This steel Pin (Position 9) is a direct replacement part for the arm linkage on JCB mini excavators, helping to restore a tight, safe pivot where wear has developed. Supplied with a matching retention plate, it is designed for reliable service in harsh site conditions. The pin measures 180 mm (7.09 inches) in length with a 25 mm (0.98 inches) cross-drilled hole, and the plate is 80 mm (3.15 inches) by 40 mm (1.57 inches) with a 25 mm (0.98 inches) hole. It is suitable for JCB 8018 CTS models and corresponds to MPN 202 1083. Use it to maintain correct alignment of the excavator arm components, reduce play in the joint, and keep the linkage operating smoothly.
Key Features:
- Steel construction for strength and wear resistance in daily site use
- Length: 180 mm (7.09 inches) for correct reach and engagement
- Pin/plate hole diameter: 25 mm (0.98 inches) for a consistent, secure fit
- Matching plate: 80 mm x 40 mm (3.15 inches x 1.57 inches) for positive retention
- Accurate sizing to help minimise play and maintain smooth articulation

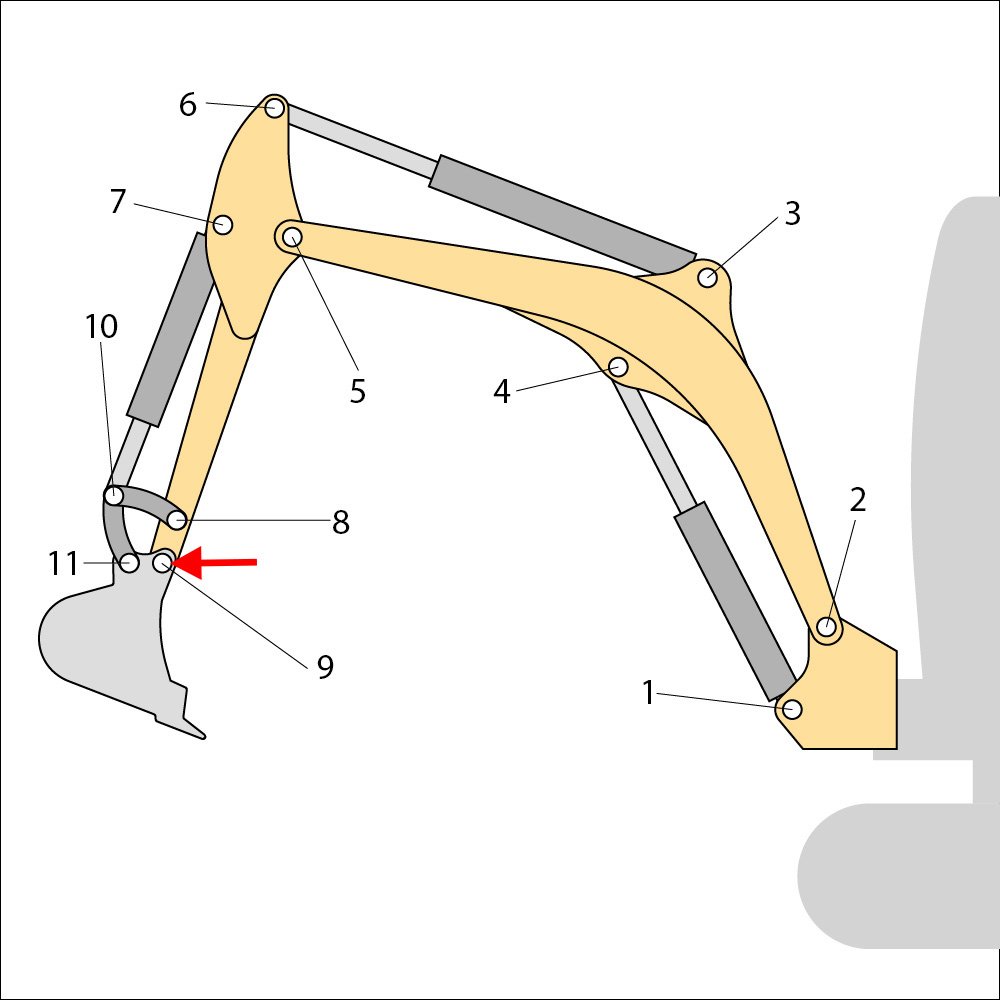

- Direct replacement for Position 9 on JCB 8018 CTS arm linkage
- Helps protect surrounding bores and bushings by keeping the joint correctly located
- Simple to fit using standard workshop tools, reducing downtime
- Corrosion-resistant finish to support long service life
- References MPN 202 1083 for easy identification
Typical Applications:
Used at the arm linkage on JCB 8018 CTS mini excavators to secure a pivot point, typically in the dipper or bucket linkage area. Ideal during routine servicing, pin-and-bush renewals, or when wear, bending, or damage is found on the original pin.
Also known as:
Pivot pin, linkage pin, boom pin, dipper pin, bucket pin, retaining pin, arm pin, JCB pivot pin.
Fits Models:
8018 CTS, 8018CTS
Alternate Part Numbers:
333/S7610, 333S7610
Product Specifications
| L&S Part No. | 202 1083 |
|---|---|
| Unit of Sale | 1 |
| Applications | 8018 CTS, 8018CTS |
| Machine Type | Excavators |
| Fits Brands | Case, JCB, Kubota |
| Fits Models | 8018 CTS |
