Description
Overview:

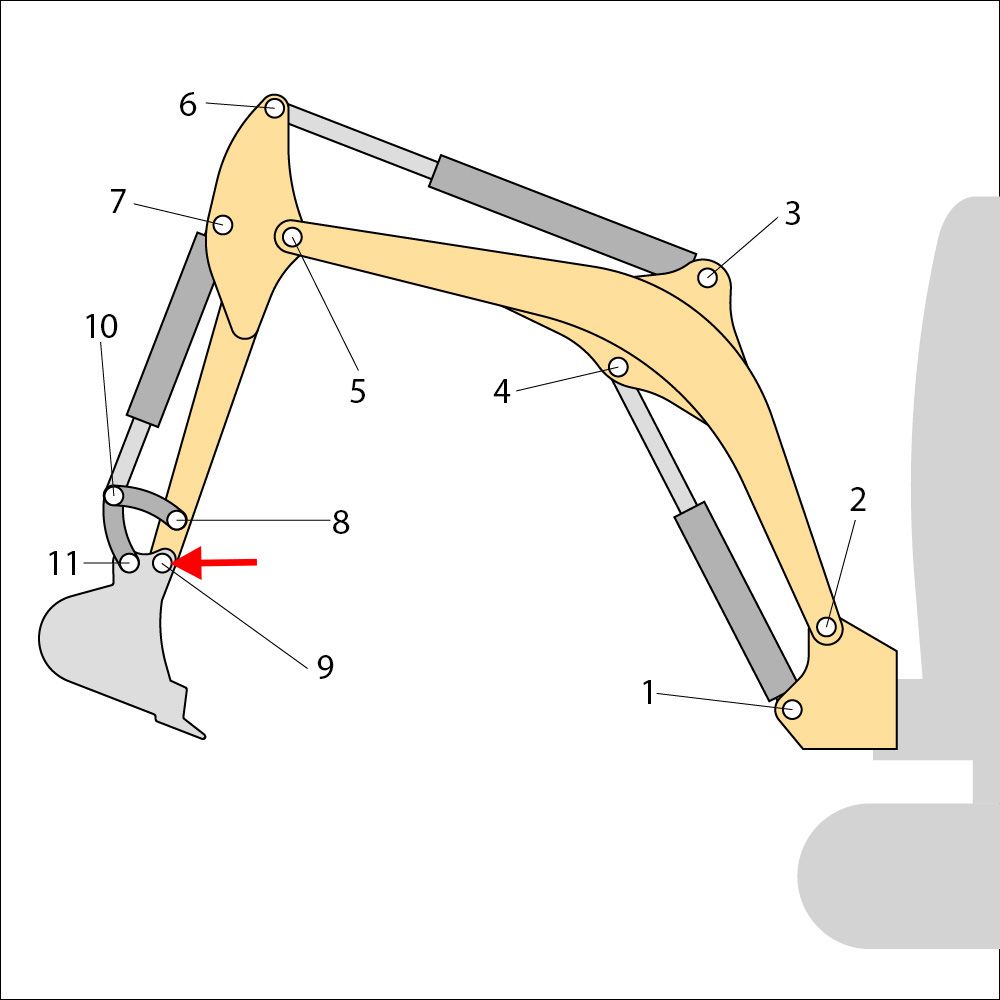

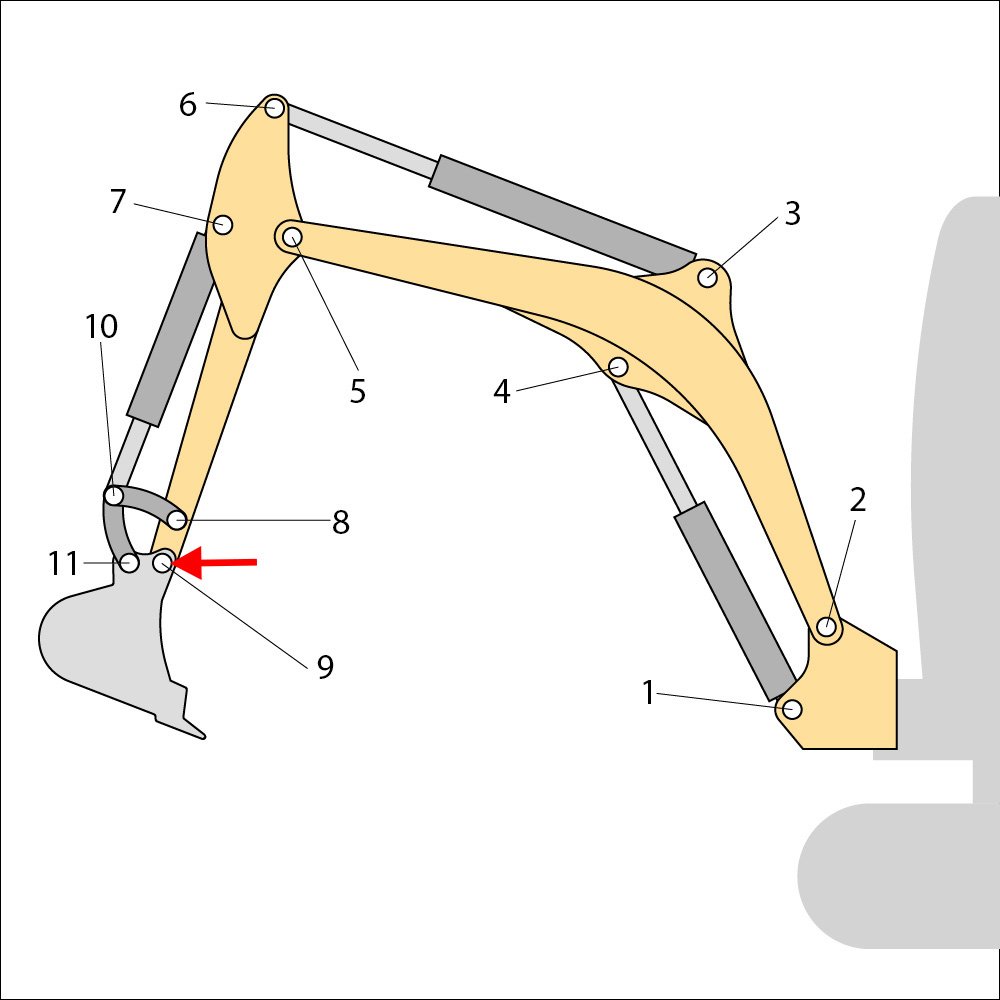

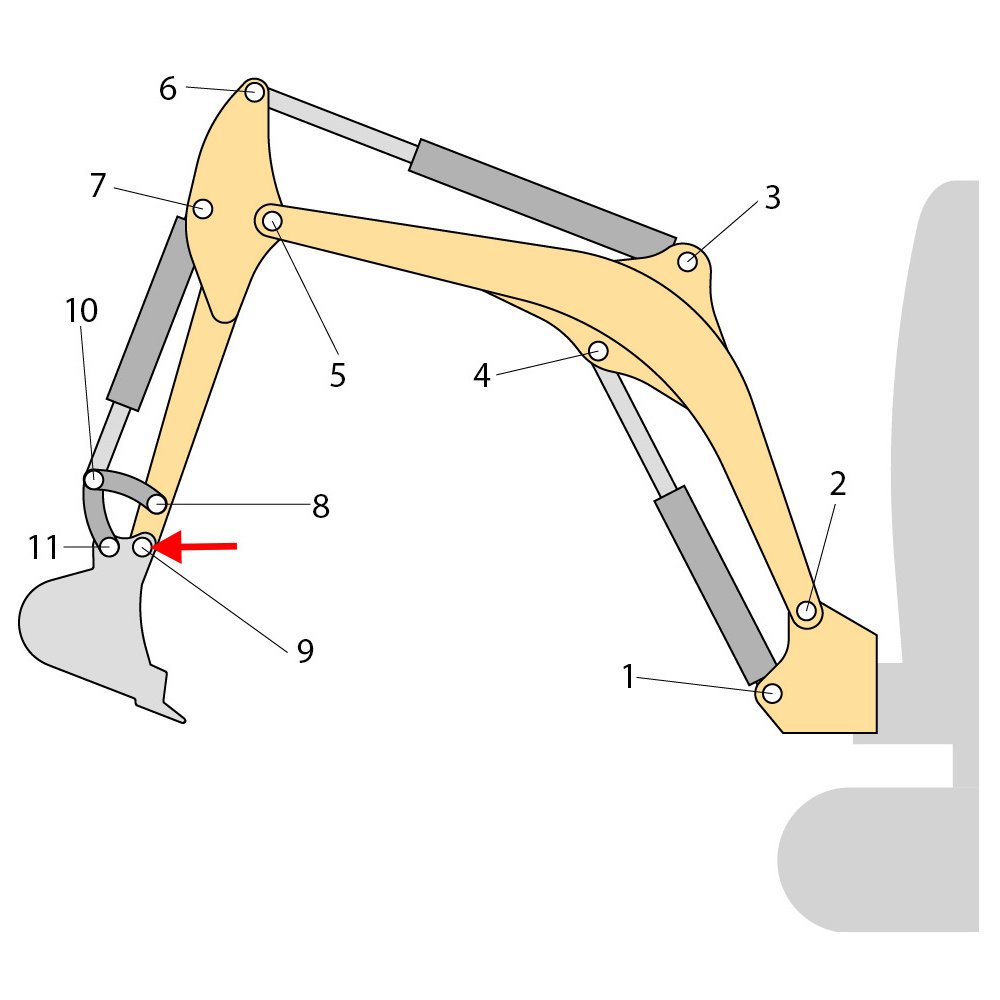

The Pin (Position 9) for JCB 86C-1 mini excavators is a replacement pivot pin used within the arm assembly to keep joints aligned and moving smoothly under load. This Non Genuine Part is engineered as a dependable, cost-effective alternative to an OEM component. Manufactured from robust steel and finished for wear resistance, it helps maintain stability and controlled movement across the arm linkage. It is suitable for JCB 86C-1 and 86C1 machines and is designed for straightforward fitting during routine maintenance or repair. By restoring the correct pivot interface with the bushings, the pin helps reduce play, vibration, and uneven wear, supporting efficient digging, grading, and loading performance on site.
Key Features:
- Non Genuine Part for a cost-effective repair without compromising function
- Precision-machined steel for a consistent fit in the arm assembly
- Wear-resistant construction to cope with shock loads and abrasion
- Tight dimensional tolerances to maintain correct bushing engagement
- Smooth ground surface to minimise play and operating noise
- Corrosion-resistant finish to help withstand wet and muddy conditions
- Easy to fit with standard workshop tools, reducing downtime
- Suitable for regular maintenance and planned component replacements
- Supports stable arm movement for accurate control and productivity
Typical Applications:
Used as a pivot pin in the arm assembly of JCB 86C-1 series mini excavators during maintenance or repair. Ideal for replacing worn, ovalled, or bent pins to restore alignment and smooth articulation. Common in construction, landscaping, utilities, groundworks, and hire fleets where reliable arm movement is essential for digging, trenching, loading, and grading tasks.
Also known as:
Excavator pivot pin, arm linkage pin, boom linkage pin, dipper pin, bucket linkage pin, JCB arm pivot, hinge pin, implement pin for mini excavators. These terms are often used to describe the same type of component located at arm or linkage pivot points where bushings and seals control movement.
Fits Models:
86C-1, 86C1
Product Specifications
| L&S Part No. | 202 1488 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 86C-1, 86C1 |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 86C-1 |
