Description
Overview:

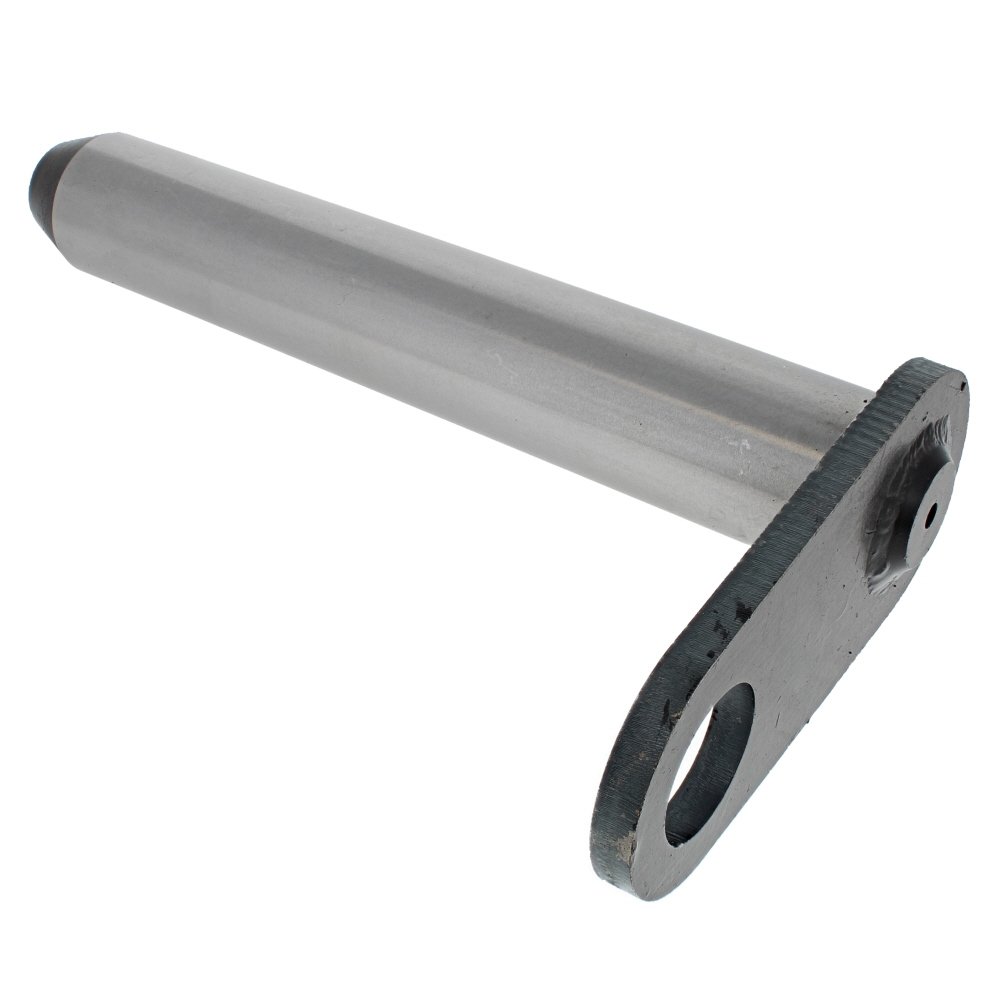

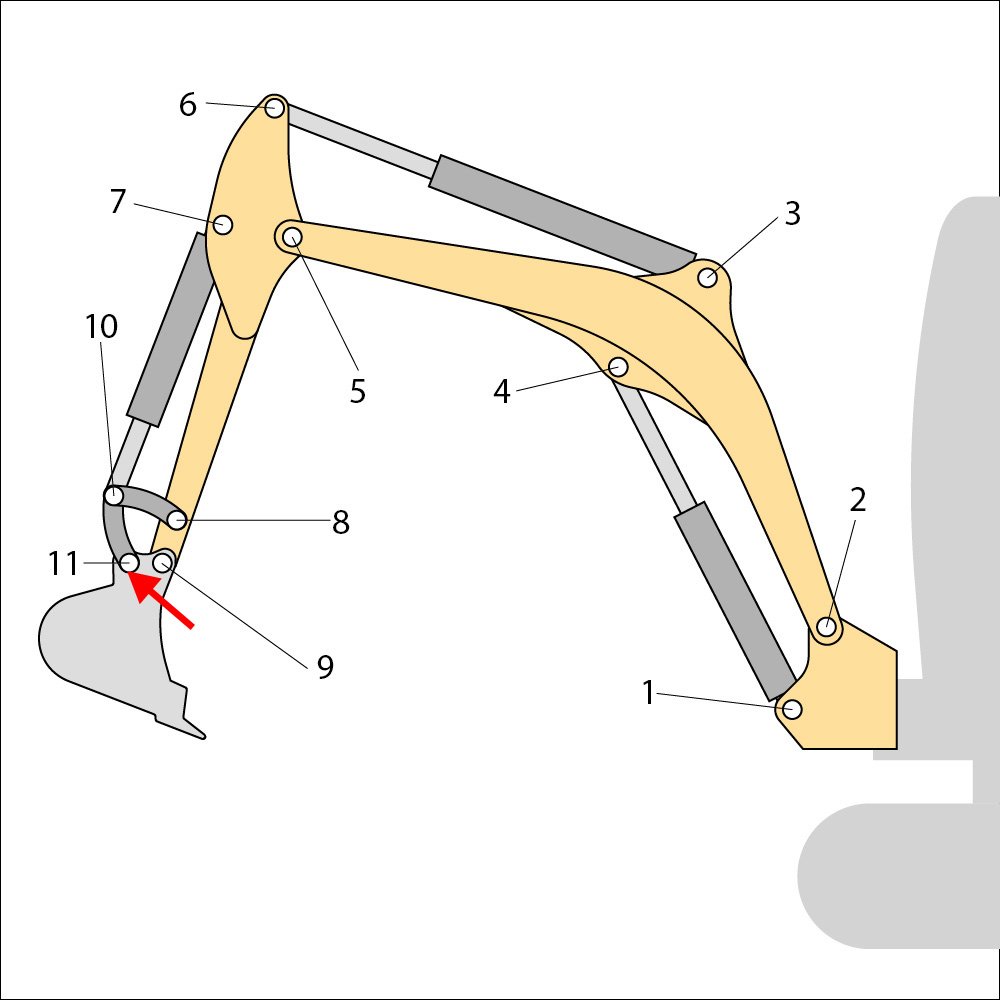

The Position 11 Bucket Pin is a non-genuine replacement part for the JCB 15C-1 series mini excavators, including the 15C-1 and 15C1. It links the bucket to the front-end linkage so the bucket can pivot smoothly under load. Manufactured from high-strength steel with a precise machined finish, it is built for reliable service in site conditions. The pin is sized to replace OEM No. 336/A7496 and helps restore correct alignment and movement where wear has developed. Dimensions are 29.92 mm diameter (1.18 inches) by 196 mm length (7.72 inches), which suits the intended bucket joint on these machines. Use it during routine maintenance or repair to reduce play, maintain accuracy, and keep digging and loading performance consistent.
Key Features:
- Non-genuine replacement for OEM No. 336/A7496, offering a cost-effective option without compromising fit
- High-strength steel construction for durability in tough on-site conditions
- Precision machined diameter: 29.92 mm (1.18 inches) for accurate fit in the joint
- Length: 196 mm (7.72 inches) to match the original assembly requirement
- Supports smooth bucket articulation, helping reduce slop and uneven wear
- Suitable for routine maintenance and like-for-like replacement on JCB 15C-1 series
- Clean, smooth finish to aid installation and correct seating in the bore
- Helps maintain correct geometry, improving control and reducing stress on bushes and linkages
- Straightforward to fit with basic workshop tools, minimising downtime
- Reliable performance for daily use in construction, landscaping, and utilities work
Typical Applications:
Replacement of a worn or damaged bucket pivot pin at the bucket end of the linkage on JCB 15C-1 series mini excavators. Common during scheduled pin-and-bush maintenance, after detecting play, or following impact damage. Suitable for general digging, trenching, grading, and loading tasks where accurate bucket control and repeatable positioning are required on compact machines.
Also known as:
Bucket linkage pin, pivot pin, hinge pin, bucket joint pin, excavator bucket pivot, front-end linkage pin, attachment pin for mini excavator, dipper-to-bucket pin.
Fits Models:
15C-1, 15C1
Alternate Part Numbers:
336 A7496, 336/A7496, 336A7496
Product Specifications
| L&S Part No. | 202 1006 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 15C-1, 15C1 |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 15C-1 |
