Description
Overview:

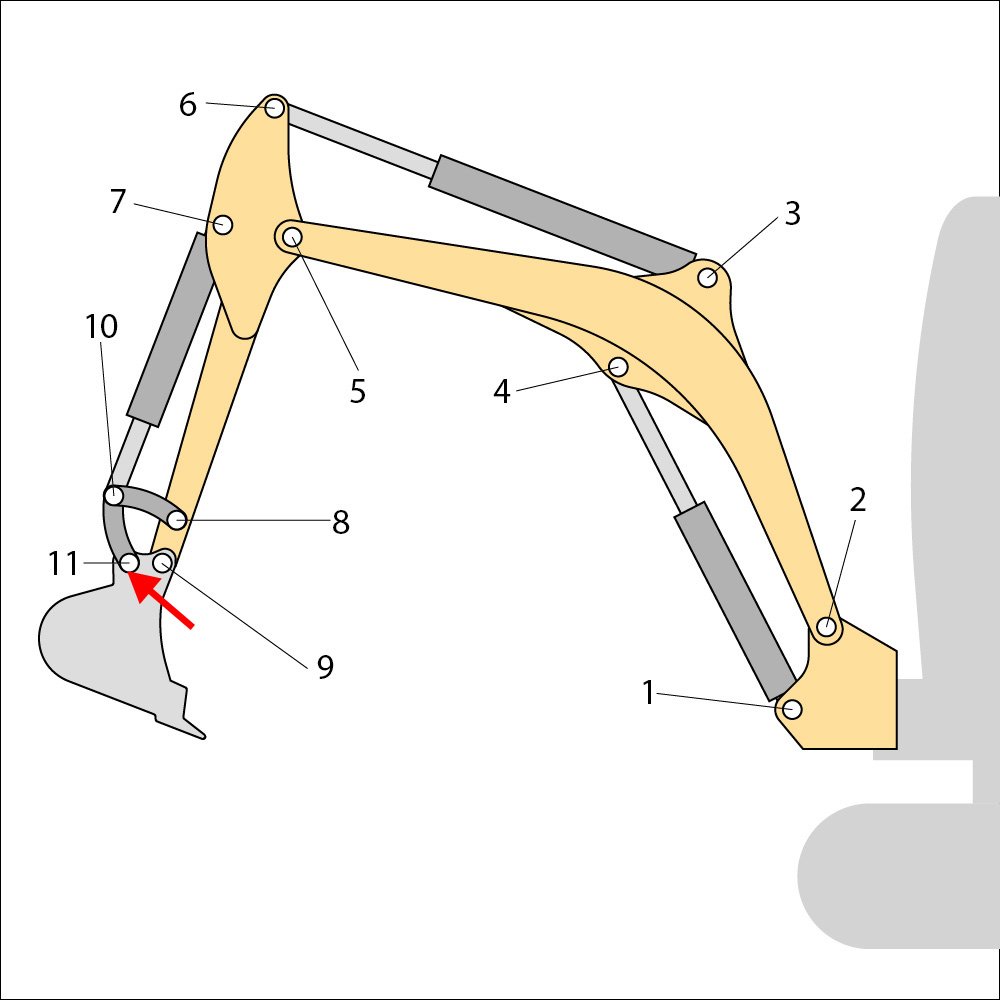

The Position 11 Bucket Pin is a non-genuine replacement part for the JCB 16C-1 mini excavator, also suitable for the closely related 16C1. Manufactured from hardened steel with a smooth, machined finish, it is designed to handle the repeated loads and abrasive conditions found at the bucket linkage pivot. This pin secures the bucket to the dipper linkage and allows free, controlled movement with minimal play when used with good bushes. Key dimensions are 29.92 mm diameter by 196 mm length (1.18 in by 7.72 in), giving a precise fit where specified. It replaces OEM No. 336/A7496, offering a cost-effective option for routine maintenance and refurbishment without sacrificing dependable performance on site.
Key Features:
- Non Genuine Part: direct alternative to OEM 336/A7496, sized 29.92 mm x 196 mm (1.18 in x 7.72 in)
- Hardened steel construction for high wear resistance in demanding digging and loading cycles
- Ground bearing surfaces promote smooth articulation and help reduce bushing and boss wear
- Accurate tolerances for a snug fit at the bucket linkage, limiting play and rattle
- Compatible with JCB 16C-1 and 16C1 linkages where these dimensions are specified
- Installs using the machine's existing retainers and hardware, keeping downtime to a minimum
- Reliable under impact and side loading typical of trenching and grading tasks
- Cost-effective maintenance solution to restore tightness and bucket control
- Suitable for preventive replacement to maintain accuracy in the working end of the arm
- Clean machined finish to resist scoring and ease assembly
Typical Applications:
Used at the bucket-to-dipper or linkage pivot on JCB 16C-1 class machines. Ideal when refurbishing worn joints to regain precise bucket control for trenching, grading, landscaping, utility work, and small civil engineering jobs. Suitable for scheduled maintenance or reactive repair after detecting play or uneven wear.
Also known as:
Bucket linkage pin, bucket pivot pin, excavator pin, digger pin, linkage pivot pin, dipper-end pin, bucket joint pin.
Fits Models:
16C-1, 16C1
Alternate Part Numbers:
336 A7496, 336/A7496, 336A7496
Product Specifications
| L&S Part No. | 202 1576 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 16C-1, 16C1 |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 16C-1 |
