Description
Overview:

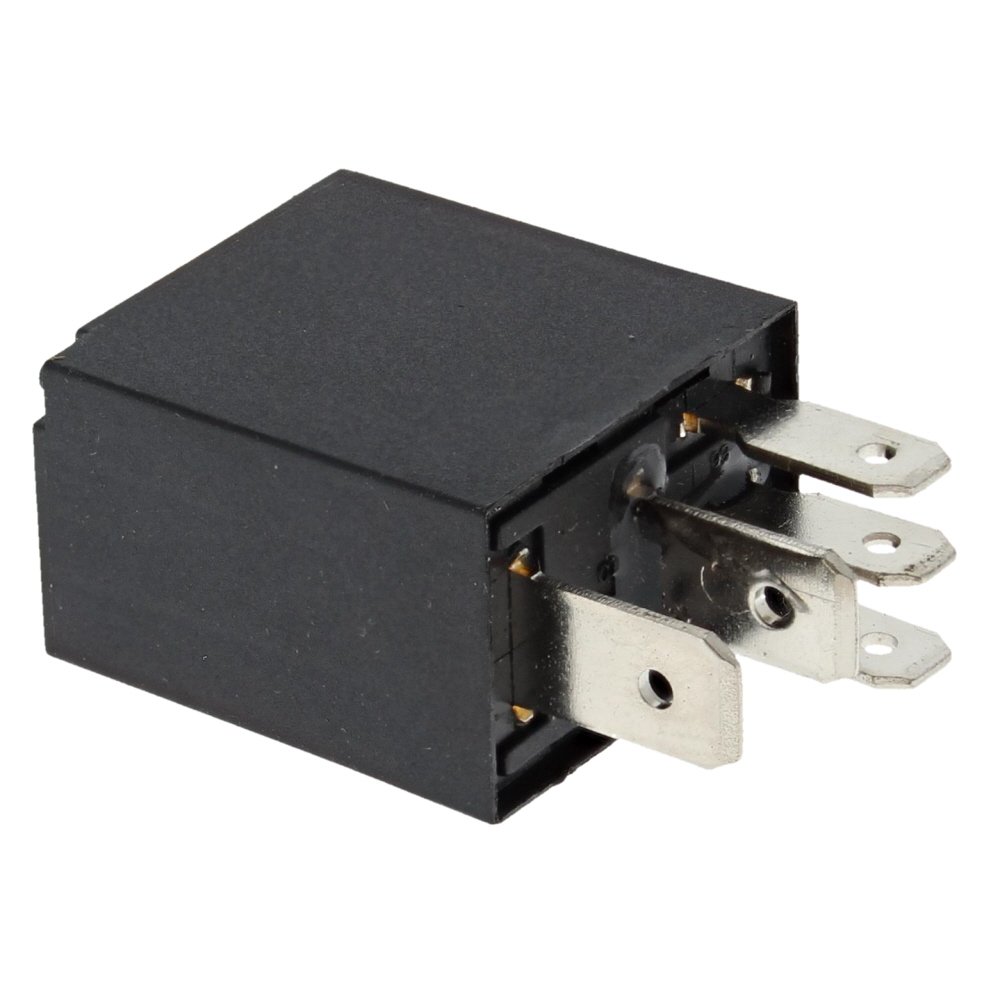

The Relay Mini for JCB machines is a compact electrical switching component used to control higher-current circuits via low-current signals. Supplied as a Non Genuine Part, it is designed to replace JCB part number 716/09800 and restore dependable switching in the machine's wiring loom. The relay features a durable black plastic body with metal spade terminals and fits standard mini relay sockets found on plant equipment. Typical uses include switching loads for lighting, motors, and auxiliary systems on compact excavators and loaders such as the JCB 100C-1 and 50Z-2. It is also suitable across a wider JCB range, helping maintain consistent performance in demanding site conditions while keeping installation simple and downtime low.
Key Features:
- Non Genuine Part that replaces JCB 716/09800 for cost-effective maintenance
- Compact mini form factor for easy fitment in crowded fuse and relay boxes
- Robust plastic housing with metal blades for reliable, durable connections
- Direct-fit footprint for standard mini relay sockets used on JCB plant
- Helps protect switches and control circuits by switching higher-current loads
- Suitable for frequent on/off cycling typical of construction and agricultural use
- Straightforward installation to minimise downtime during repairs or servicing
- Versatile application across multiple systems (lighting, motors, pumps, auxiliaries)
Typical Applications:
Used in the electrical system to switch power to work lights, cooling fans, heater blowers, beacon circuits, auxiliary pumps, and other accessories on mini excavators, backhoe loaders, and compact equipment. Ideal for preventative maintenance or as a like-for-like replacement where the original relay has failed, is intermittent, or shows signs of heat damage or corrosion.
Also known as:
Mini cube relay, blade-type mini relay, auxiliary switching relay, plant equipment relay, control relay, JCB replacement relay, machine power relay, electrical switching relay for compact excavators.
Fits Models:
1CX, 3CX
Alternate Part Numbers:
320469, 320-469, 320 469
Product Specifications
| L&S Part No. | 320 469 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 1CX, 3CX |
| Machine Type | Excavators, Loaders |
| Fits Brands | JCB |
| Fits Models | 1CX Digger | 3CX |
