Description
Overview:

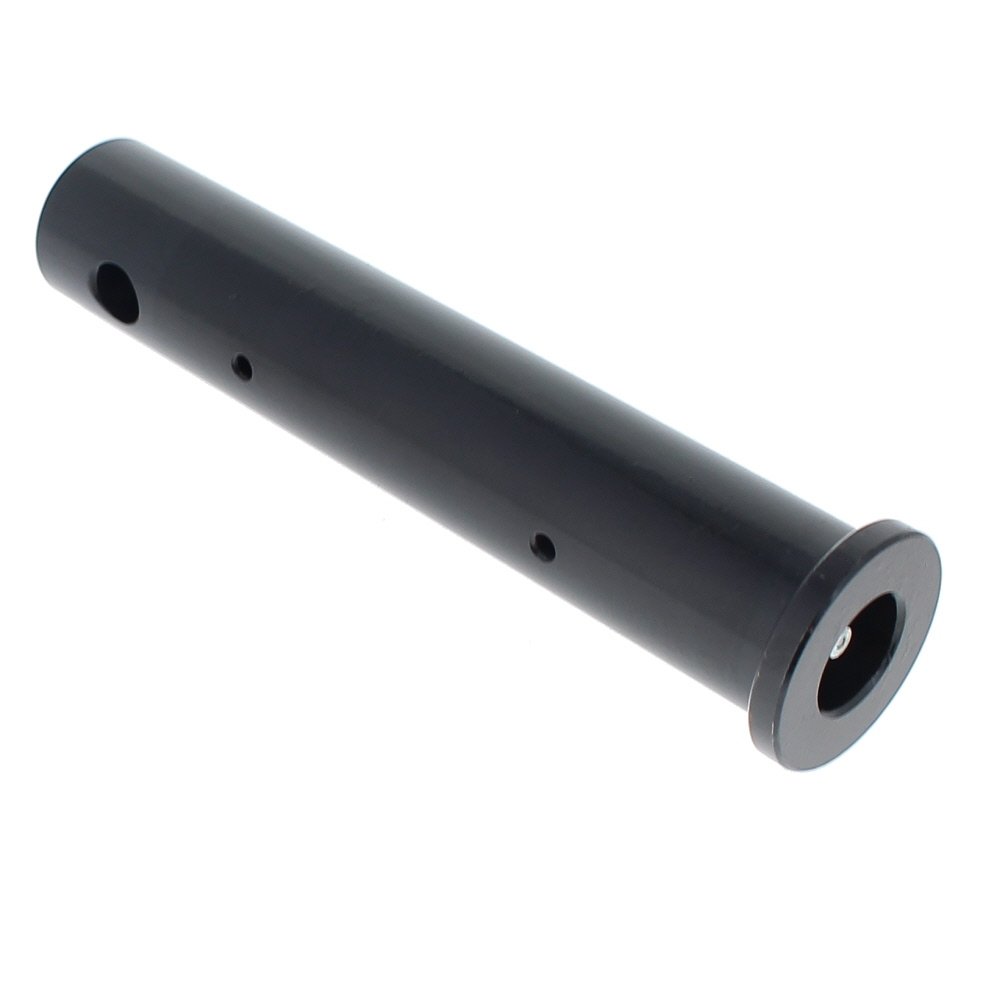

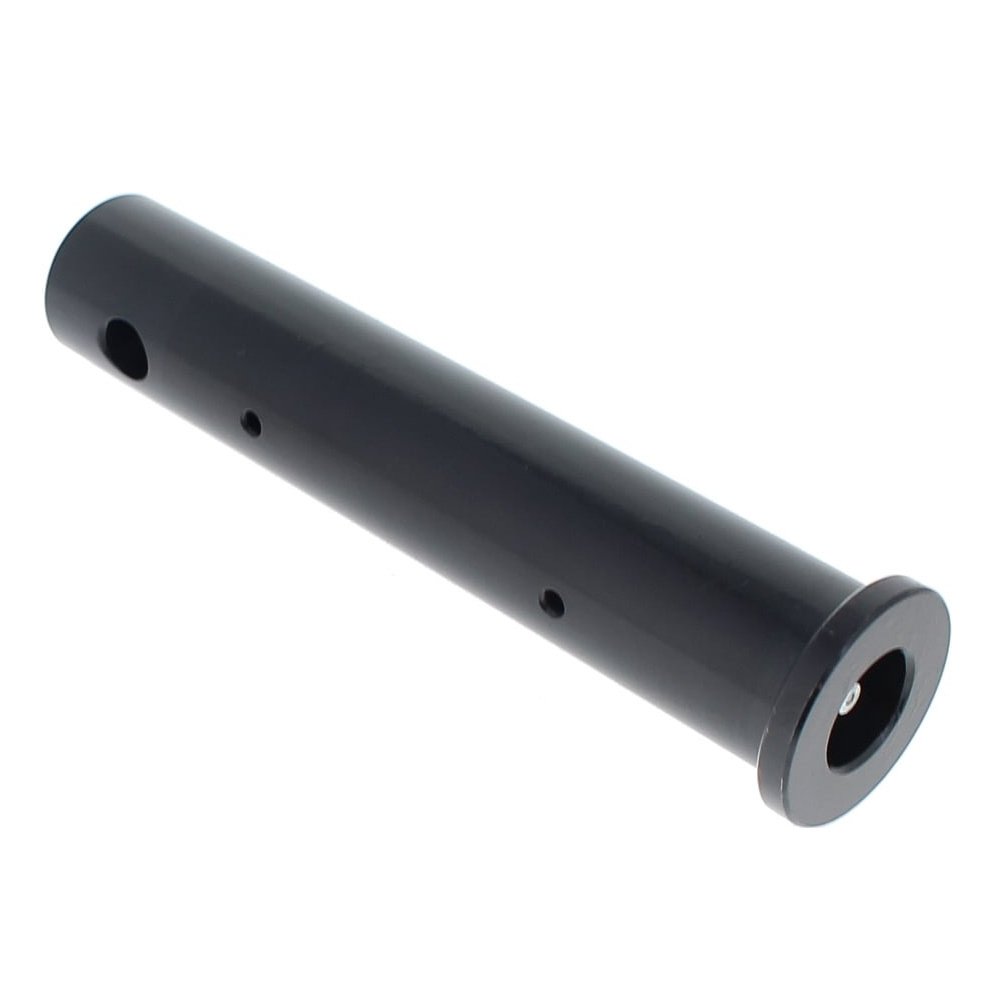

This Pivot Pin is a non-genuine replacement for JCB OEM part number 811/90697, used in key pivot points on JCB mini excavators. Made from high-strength steel with smooth machined surfaces, it provides a reliable bearing point for rotating joints and linkages, helping maintain accurate alignment and reduce wear. The pin is suitable for positions 10 and 8 in relevant JCB parts diagrams and is commonly found in assemblies such as boom, dipper, bucket, and blade linkages. Designed for a precise fit on popular compact excavators, including the JCB 8014 and 8016, it offers dependable performance in daily site use. A flanged head and cross-hole allow secure retention with standard fixing hardware where specified.
Key Features:
- Non Genuine Part compatible with JCB applications replacing OEM 811/90697
- Precision-machined steel pin for consistent fit and smooth pivoting
- Suited to position numbers 10 and 8 in applicable JCB diagrams
- Durable construction for frequent cycling and abrasive site conditions
- Flanged head and cross-drilled end accommodate common retainers (e.g. washer/clip)
- Helps maintain alignment of linkages, reducing play and uneven wear
- Straightforward like-for-like replacement to speed up maintenance
Typical Applications:
Used at pivot points on JCB mini excavators, including boom-to-dipper joints, bucket linkages, quick-attach link connections (where specified), and dozer blade arms. Suitable for repair, overhaul, or preventative maintenance in construction, utilities, landscaping, plant hire, and general groundwork.
Also known as:
Often referred to as a hinge pin, joint pin, axle pin, linkage pin, or pivot shaft. These terms describe the same function: a steel pin that provides the rotational bearing surface between moving parts in a machine linkage.
Fits Models:
801, 8014, 8014 CTS, 8016, 8016 CTS, 8016 Super, 8018, 8018 CTS, 8018 CTSAG, 8018 CTSDL, 8018 Super, 802, 8020, 8020 CTS
Alternate Part Numbers:
811.90697, 811 90697, 811/90697, 811-90697, 81190697
Product Specifications
| L&S Part No. | 080 254 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 801, 8014, 8014 CTS, 8014CTS, 8016, 8016 CTS, 8016 Super, 8016CTS, 8016Super, 8018, 8018 CTS, 8018 CTSAG, 8018 CTSDL, 8018 Super, 8018CTS, 8018CTSAG, 8018CTSDL, 8018Super, 802, 8020, 8020 CTS, 8020CTS |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 801 | 802 | 8014 | 8016 | 8018 | 8014 CTS | 8018 CTS | 8018 Super | 8020 | 8020 CTS | 8016 Super | 8018 CTSAG | 8018 CTSDL |
