Description
Overview:

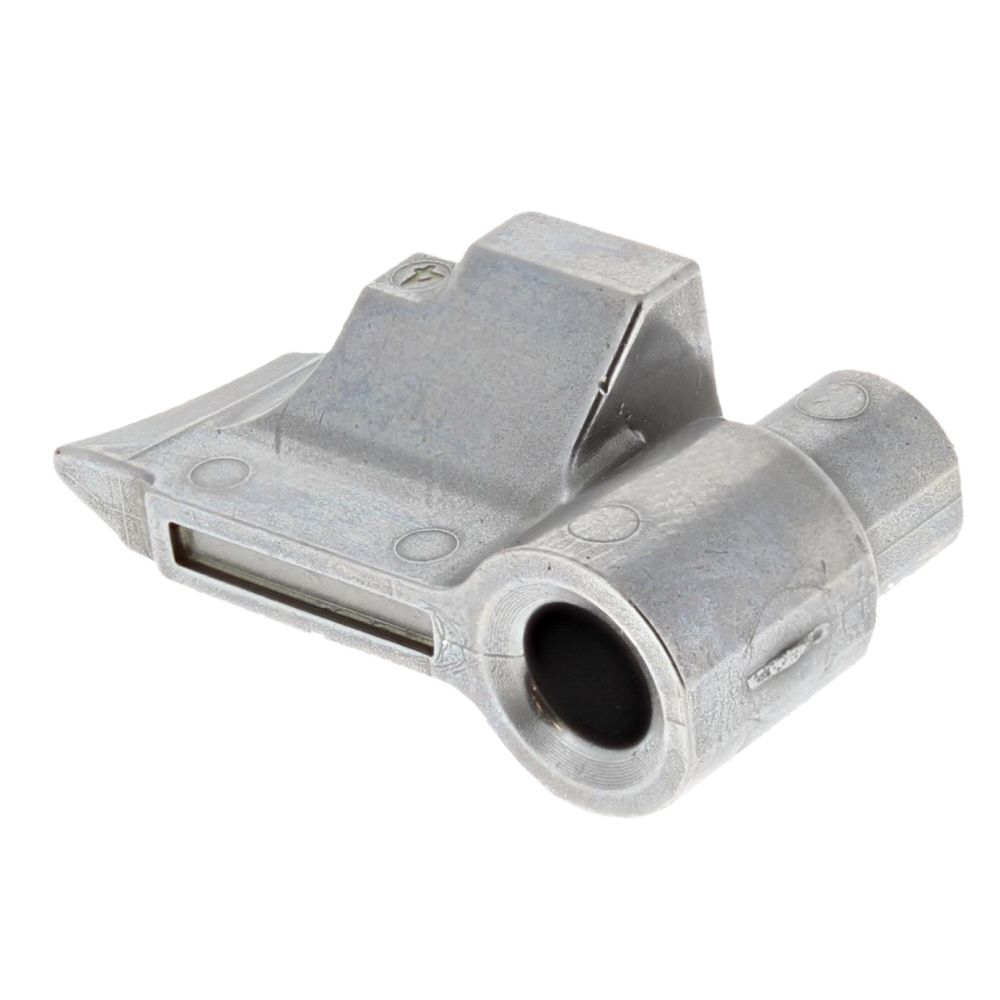

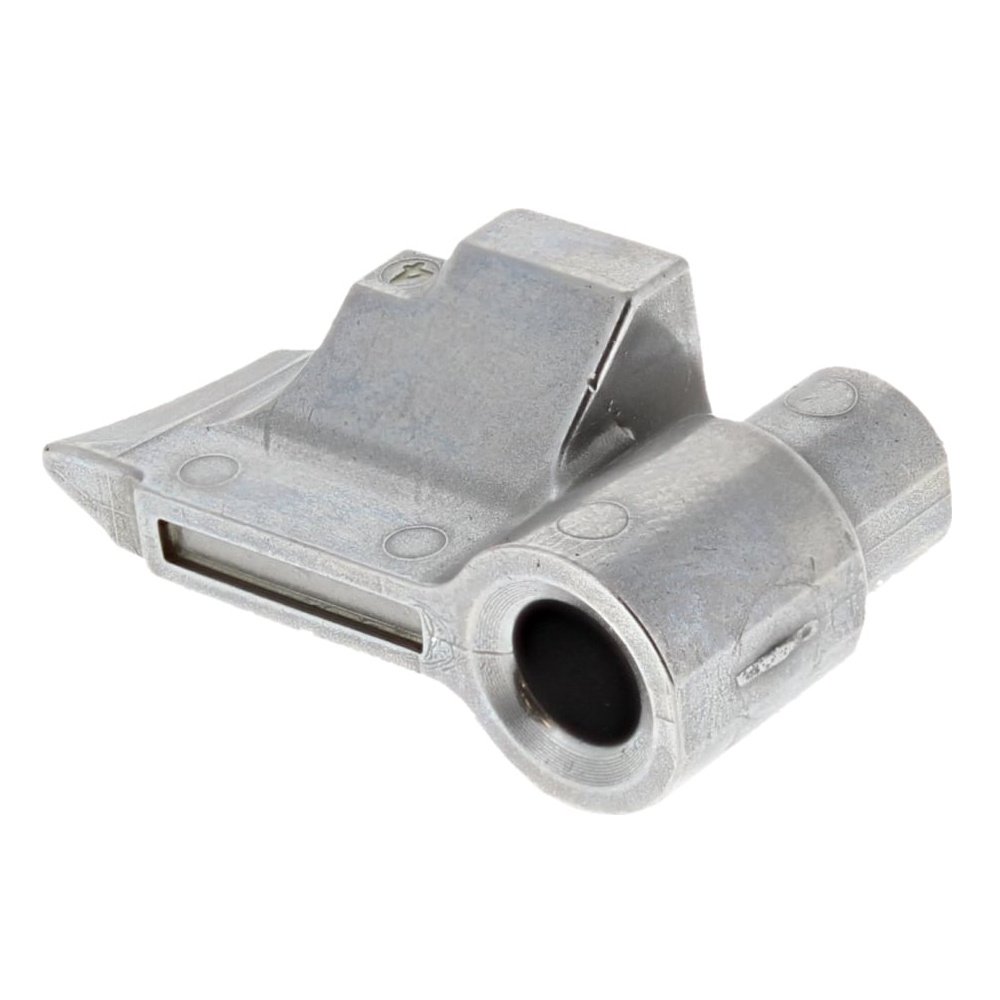

The notched quadrant is a genuine Stihl metal component used in the head-angle adjustment mechanism of long‐reach hedge trimmers, including the HL 92 C‐E and HL 92 KC‐E. Its toothed arc works with the locking assembly to hold the cutter head at set positions, helping you maintain consistent cutting angles along hedges and borders. Manufactured from durable metal for repeated engagement under load, it restores precise positioning and smooth operation when the original part is worn or damaged. Supplied as a direct replacement to OEM 4243 708 6202, it offers a dependable fit and function for both professional landscapers and home users. Use it during routine maintenance or repair to keep your Stihl trimmer performing as intended.
Key Features:
- Genuine Stihl part for assured compatibility and quality
- OEM reference 4243 708 6202 for accurate identification
- Robust metal construction designed to resist wear in service
- Holds head angle securely for repeatable, precise cutting positions
- Helps prevent slippage in the adjustment mechanism
- Direct replacement on listed Stihl long‐reach hedge trimmers
- Straightforward to fit with standard hand tools
- Smooth, positive engagement across the adjustment range
- Suitable for regular professional use and demanding conditions
- Supports consistent performance and reliable control
Typical Applications:
Used to replace a worn or damaged quadrant that no longer holds the head angle firmly. Ideal during seasonal servicing to maintain precise head positioning for clean, accurate hedging. Helps restore reliable operation on site work, grounds maintenance, domestic garden care, and commercial landscaping where consistent angles and repeatable settings are important.
Also known as:
Toothed quadrant, angle selector plate, angle setting plate, detent plate, head‐angle rack, adjustment plate for hedge trimmer, positioning plate.
Fits Models:
FH 145, FH-KM 145, FH145, HL 145, HL 91 K-Z, HL 91 KC-E, HL 92 C-E, HL 92 KC-E, HL 94 C-E, HL 94 K-Z, HL 94 KC-E, HL 94-Z, HL145, HL92C, HL92KC, HL94, HL94C, HL94K, HL94KC, HL94Z, HLA 135, HLA 135 K, HLA135
Alternate Part Numbers:
4243-708-6202, 42437086202
Product Specifications
L&S Part No. | 4243 708 6202 |
---|---|
Part Type | Genuine Part |
Manufacturer | Stihl |
OEM No. | 42437086202 |
Unit of Sale | 1 |
Applications | FH 145, FH-KM 145, FH145, HL 145, HL 91 K-Z, HL 91 KC-E, HL 92 C-E, HL 92 KC-E, HL 94 C-E, HL 94 K-Z, HL 94 KC-E, HL 94-Z, HL145, HL92C, HL92KC, HL94, HL94C, HL94K, HL94KC, HL94Z, HLA 135, HLA 135 K, HLA135 |
Machine Type | Long Reach Hedgetrimmers |
Fits Brands | Stihl |
Fits Models | HL92C, HL92KC | HL94, HL94C, HL94K, HL94KC | HLA 135, HLA 135 K | FH 145° | HL 145° |
