Description
Overview:

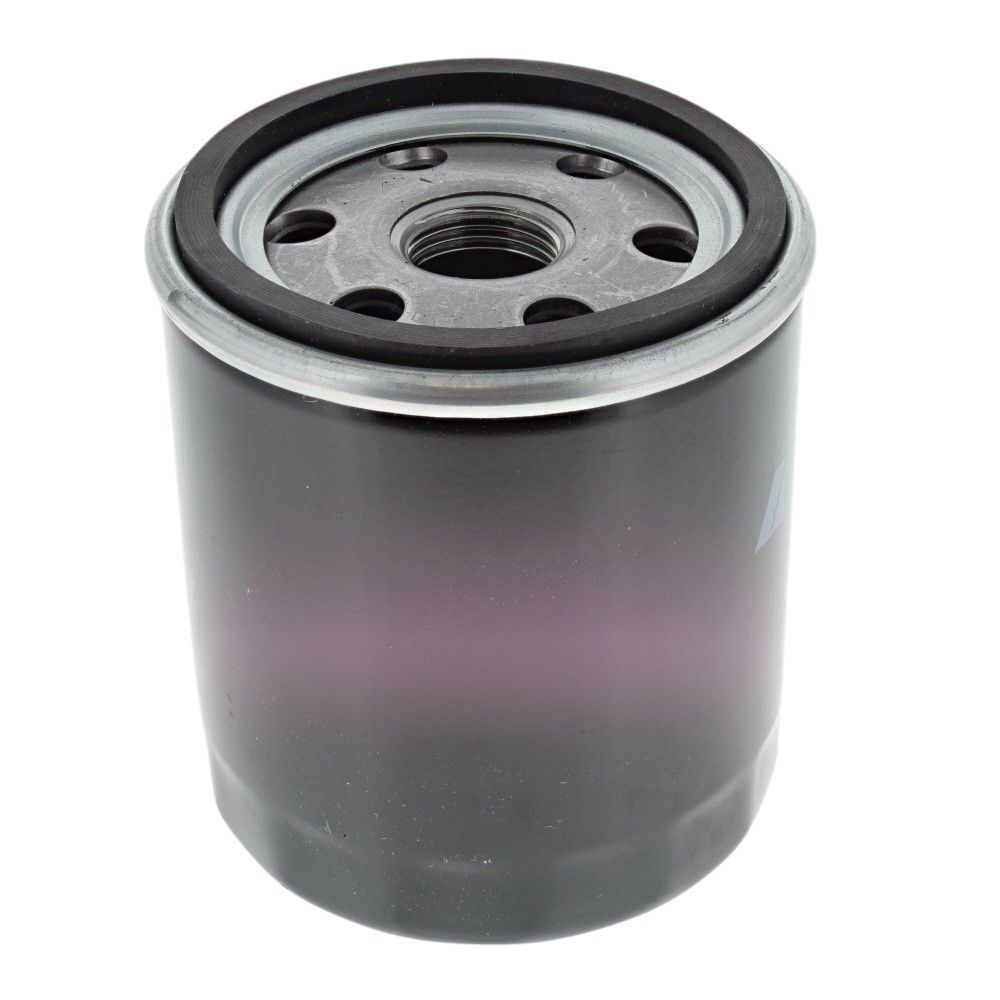

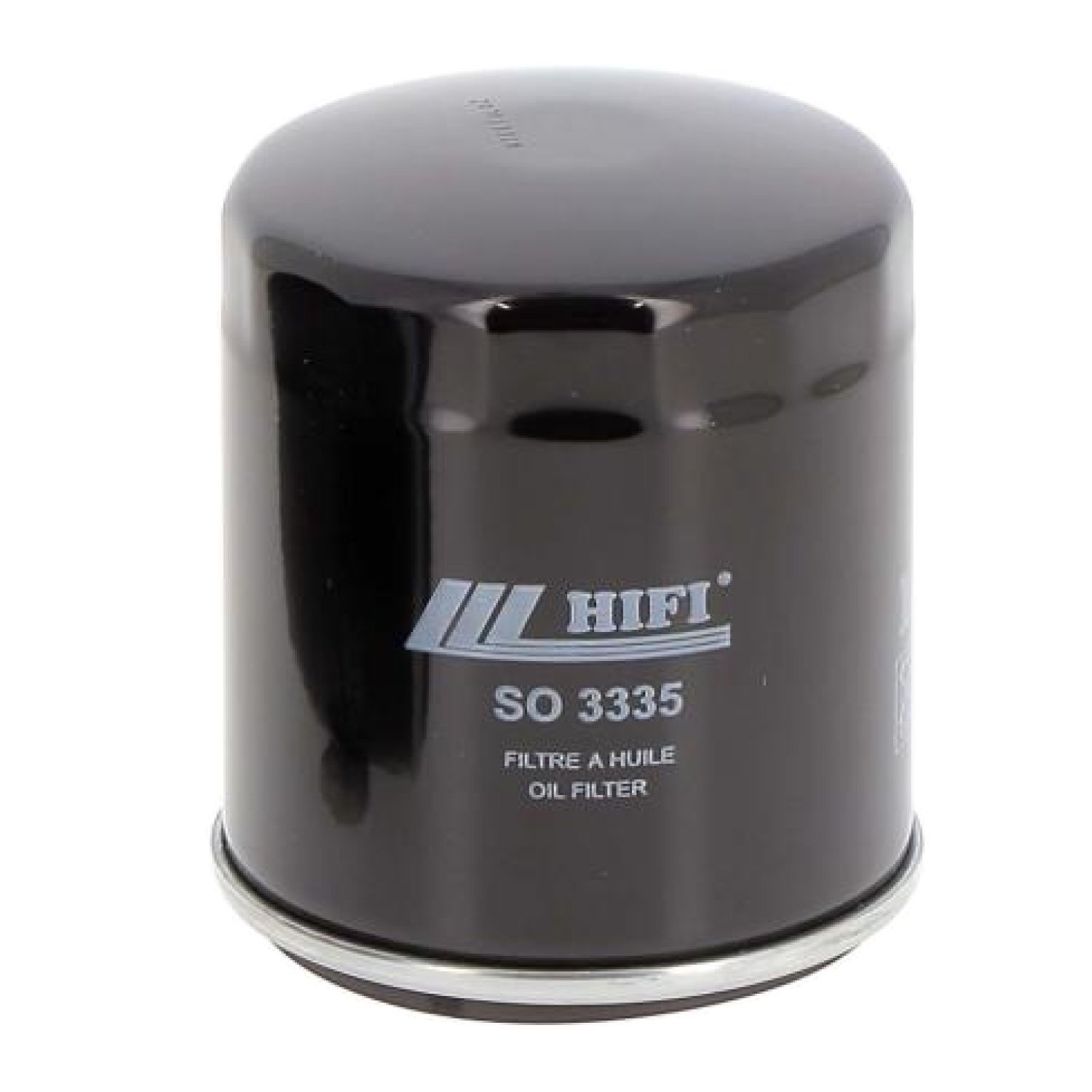

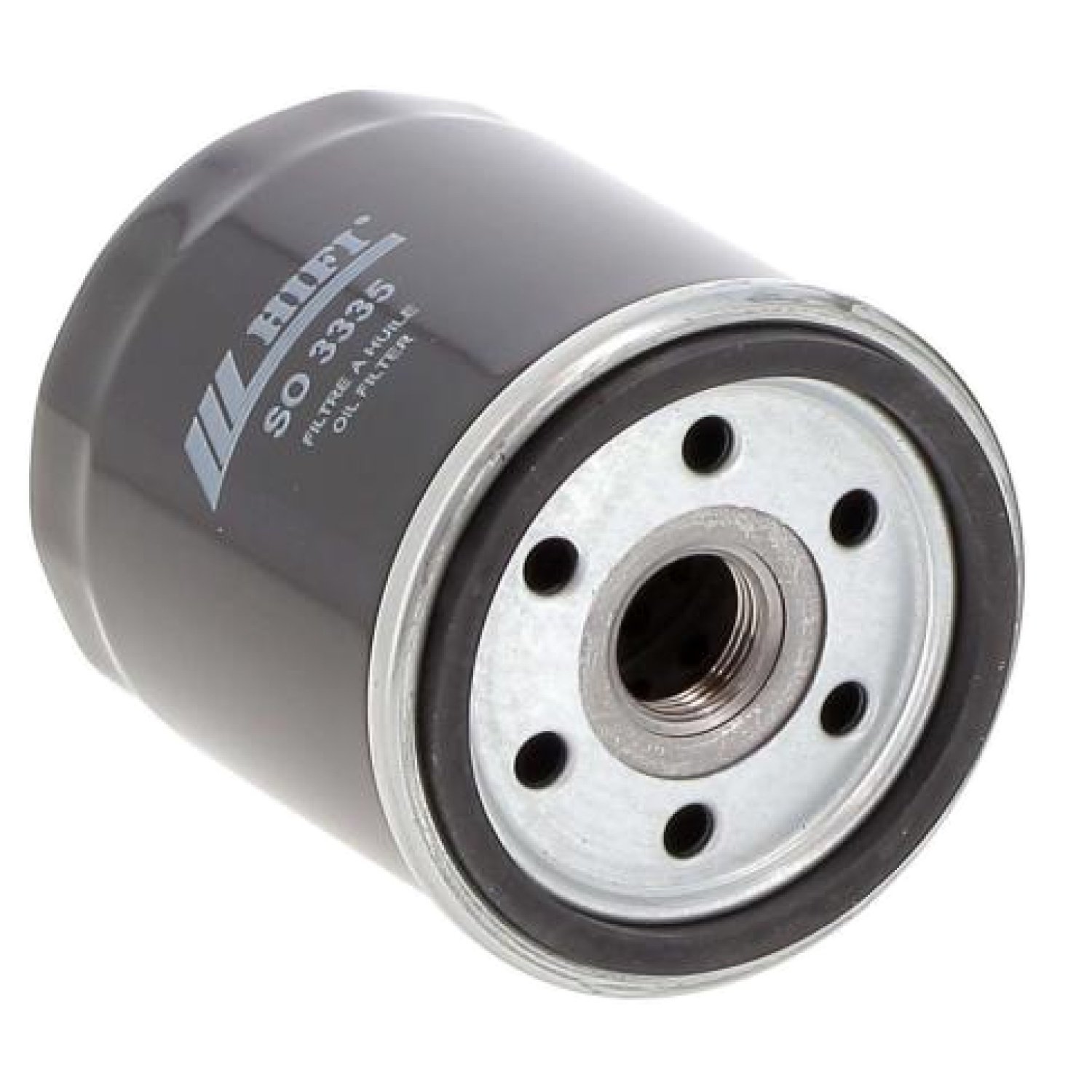

This oil filter, non-genuine, replaces OEM numbers including KH-25-050-25-S and KH-52-050-02-S. It is designed for Kohler engines such as the CV20, CV22, CV23, and CV25. The filter is located in the engine lubrication system, trapping contaminants from the oil to prevent damage to moving components. Compatible with various models including the CH11 to CH980 series.
Key Features:
- Replaces multiple OEM part numbers
- Fits a wide range of Kohler engine models
- Essential for engine lubrication system
- Non-genuine replacement for original parts
- Compact design for engine integration
Typical Applications:
Used in the lubrication system of Kohler engines to filter oil and protect internal components from wear caused by debris and impurities.
Also known as:
Oil Filter, Engine Oil Filter, Lubrication Filter.
Fits Models:
CH11, CH12.5, CH125, CH14, CH15, CH18, CH20, CH22, CH23, CH620, CH730, CH740, CH745, CH750, CH752, CH980, CT151, CT153, CT154, CTH151, CTH174, CTH220, CV11, CV12.5, CV125, CV13, CV14, CV15, CV16, CV17, CV18, CV19, CV20, CV22, CV23, CV25, CV460, CV461, CV462, CV463, CV464, CV465, CV490, CV491, CV492, CV675, CV724, CV730, CV740, CV750, ECH749, K185, KT17
Alternate Part Numbers:
KH-25-050-25-S, KH-52-050-02-S, 70000-3616-0, VOE 16222227, E7194-32110, HE 122-033P, DWK 1019575, 25 050 33-S, 53102925-03, 65625-05300, DOP83-028JD, 04105409 AB, 04105409 AC, 04105409 BB, 20803-21071, 20803-81071, VOE16222227, 1005228744, 5310295-03, O0535DREIS, O0550DREIS
Product Specifications
| L&S Part No. | LO3335 |
|---|---|
| Part Type | Non Genuine Part |
| Machine Type | Engines |
| Fits Brands | Kohler |
| Key Features | - Compatible with various Kohler engine models including CV20, CV22, CV23, CV25. - Non-genuine oil filter designed for Kohler engines. - Fits alternative OEM numbers like KH-25-050-25-S, KH-52-050-02-S. - Suitable for diverse machine types with Kohler engines. - Genuine OEM specification for reliable engine maintenance. |

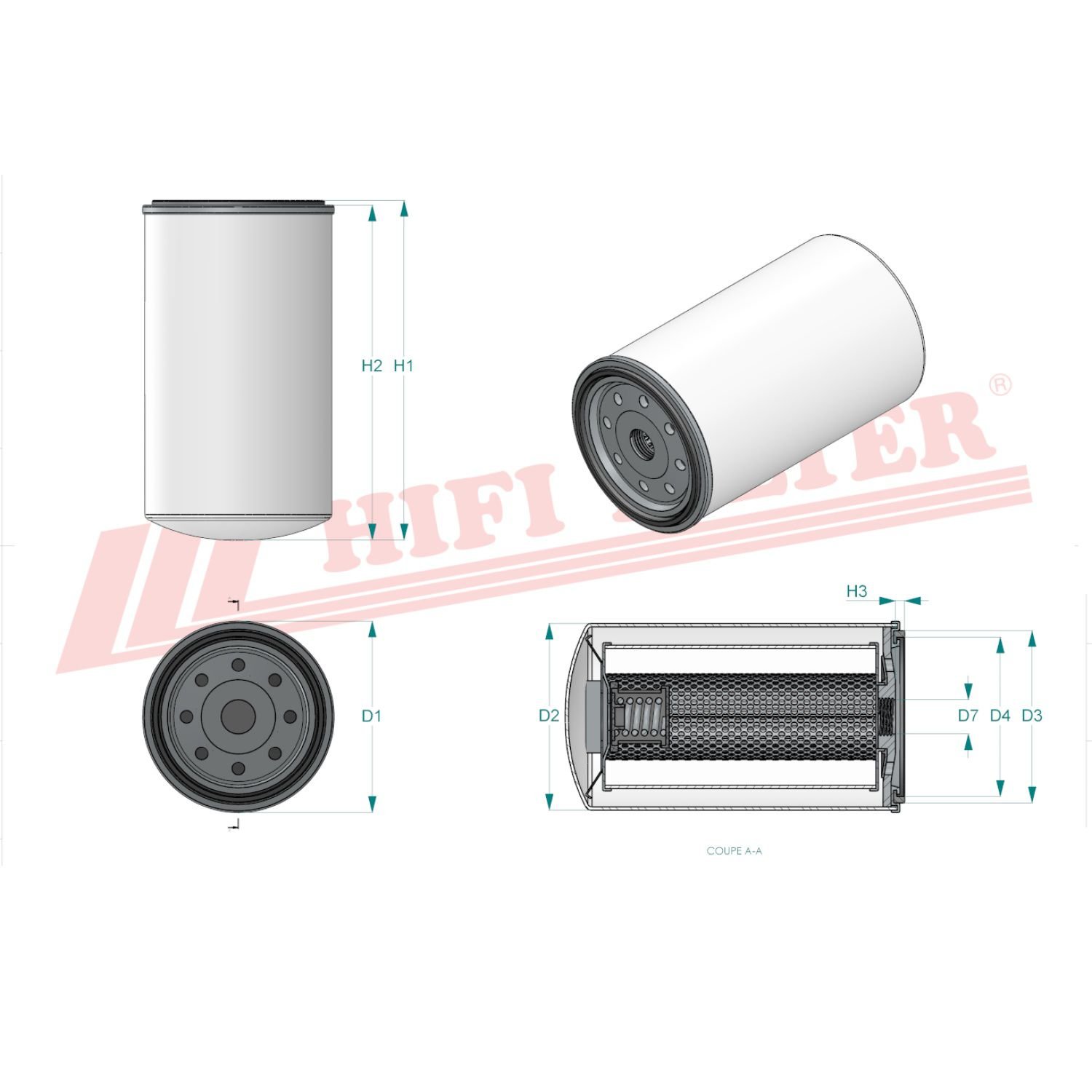

| Filter Specifications | D1: 79mm D2: 76.5mm D3: 71mm H1: 90mm H2: 88mm H3: 5mm Thread: 3/4"-16UNF Check valve: 1 By-pass valve: 1 |
| Fits Models | CH745 | CH11 | CH12.5 | CH14 | CH15 | CV12.5 | CV13 | CV14 | CV15 | CV16 | CV460 | CV461 | CV490 | CV491 | CV492 | CH18 | CH20 | CH22 | CH23 | CH620 | CH730 | CH740 | CH750 | CH752 | CH980 | CV17 | CV18 | CV20 | CV22 | CV23 | CV25 | CV675 | CV730 | CV740 | CV750 | RD880V |
