Description
Overview:

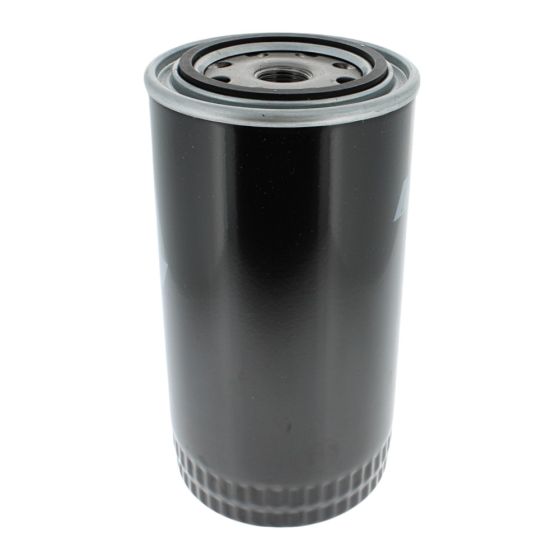

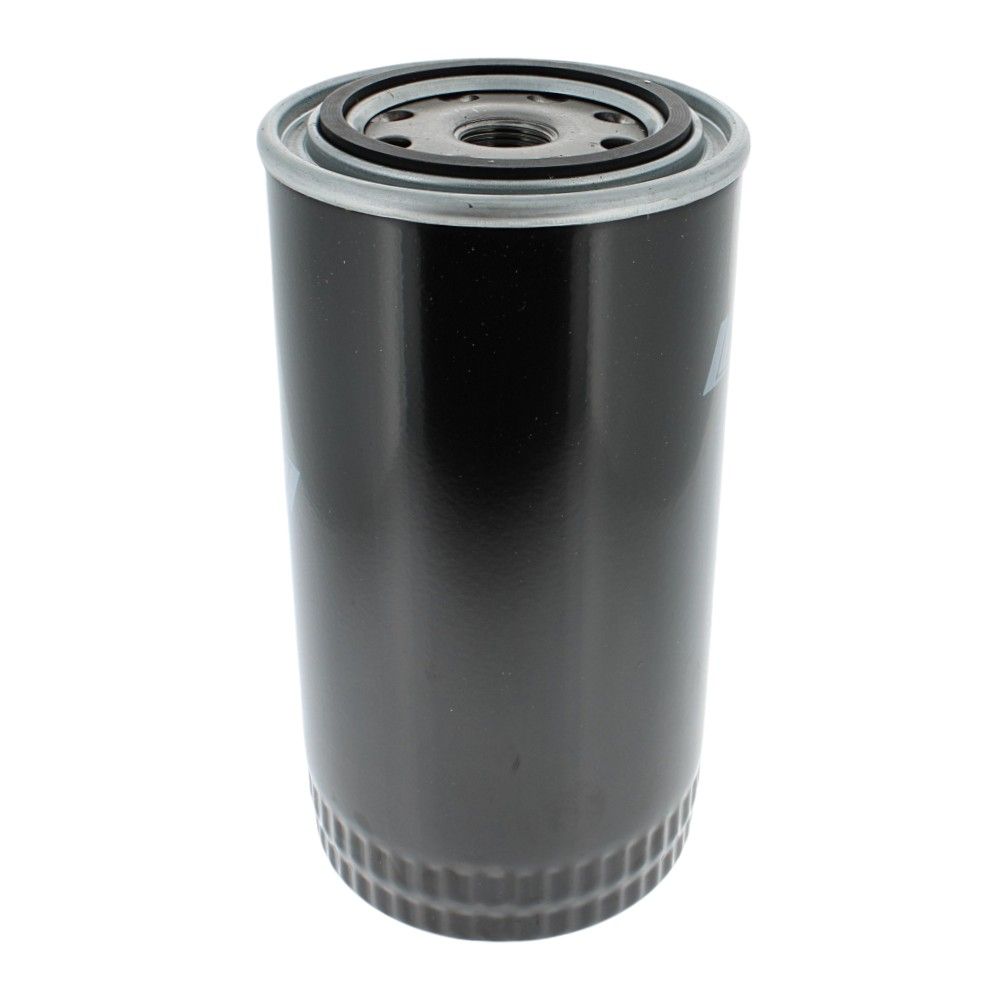

This spin-on oil filter (reference S503) is a replacement canister filter for diesel and petrol engines used in construction and plant machinery. It uses a painted steel shell with a sealed rubber gasket and internal pleated filter media to capture fine contaminants and keep engine oil clean. An integrated anti-drain back valve helps maintain oil pressure after shutdown, and a bypass valve opens at 8 psi (about 0.55 bar / 55 kPa) to protect the engine if the element becomes restricted. The mounting thread is 3/4-16 UN (approx. 19.05 mm major diameter, 1.59 mm pitch). Suitable for a wide range of telehandlers, dumpers and excavators, including models such as PT9000 and MT 728 C‐E2. Replaces JCB 02/100073S.
Key Features:
- Spin-on design for quick, clean filter changes with standard tools
- Robust steel canister and corrosion-resistant finish for harsh site conditions
- Anti-Drain Back Valve (ADV) to reduce dry starts and maintain oil pressure
- Bypass valve set at 8 psi (approx. 0.55 bar / 55 kPa) for cold starts and high-load protection

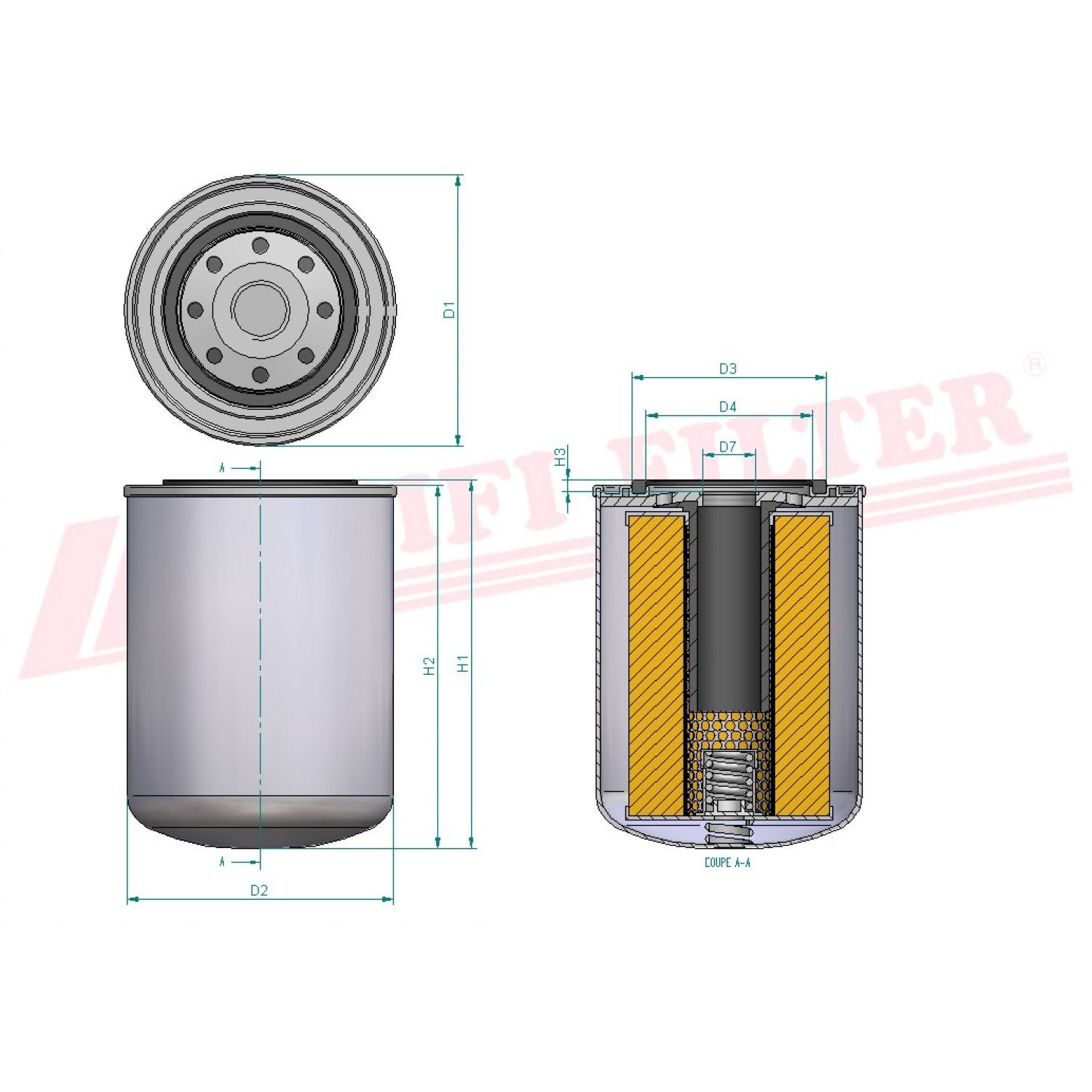

- Dimensions: Height 181 mm; Width (OD) 94 mm for easy space checking
- Thread: 3/4-16 UN (approx. 19.05 mm × 1.59 mm pitch) to match common filter heads
- High dirt-holding pleated media supports extended service intervals when used as specified by the machine manufacturer
- Reliable sealing gasket to minimise the risk of leaks when correctly installed
- Suitable for heavy-duty telehandlers, dumpers and excavators across mixed fleets
- Direct replacement for numerous OEM references, including JCB 02/100073S
Typical Applications:
Engine oil filtration on site dumpers, telehandlers, forklifts and excavators working in construction, agriculture, waste handling and rental fleets. Ideal for routine servicing to help reduce engine wear, support stable oil pressure, and maintain reliability in stop‐start, dusty or high-load conditions.
Also known as:
Engine oil filter, lube oil filter, spin-on canister filter, screw-on oil filter, oil element, oil cartridge, lube element.
Fits Models:
303, 930S, MHT 780 T, MHT 860L TURBO, MHT 860LT LSU, MHT 950L EVOLUTION, MHT780T, MHT860LTLSU, MHT860LTURBO, MHT950LEVOLUTION, MLA 625, MLA 627 Turbo, MLA625, MLA627Turbo, MLA628-120LSUPower, MRT 1330, MRT 1540, MRT 2150M, MRT 2540, MRT1330, MRT1540, MRT2150M, MRT2540, MT 1033 HTL 3-E2, MT 1140 SL, MT 1230 SCP T, MT 1235 CPT 10, MT 1235 S, MT 1335 SL TURBO, MT 1337 SL TURBO, MT 1435 HSL T, MT 1435 SL TURBO, MT 1440 E3, MT 1440 SL, MT 1440 SL TURBO, MT 1637 SL TURBO, MT 1840 R, MT 728 C-E2, MT 728 D-E2, MT 732 B-E2, MT 830 CP T, MT 830 SCP T, MT 928, MT1030 S, MT1030S, MT1033HTL3-E2, MT1140SL, MT1230SCPT, MT1235CPT10, MT1235S, MT1335SLTURBO, MT1337SLTURBO, MT1435HSLT, MT1435SLTURBO, MT1440E3, MT1440SL, MT1440SLTURBO, MT1637SLTURBO, MT1840R, MT728C-E2, MT728D-E2, MT732B-E2, MT830CPT, MT830SCPT, MT928, PT9000, TA6, TA6S, TA9, TA9S, RC 3, SX7000, SX8000, SX9000, 5000 PS, 5002 PSFA, 5003 PS, 6000 PS, 6002 PSFA, 6003 PSFL, PS 6000, GTH 4017 SX, GTH 4018 SR, 3 CX TURBO, 3 CX 4 RM, 4 CX, PC 120 5K, PC 150 5K, PC 150HD 5K, PC 180 5K, PC 210 5K, PC 240 3, PC 240 5 NLC, CLG 777, MT 728, MT 732, MT 840 CP T, MT 930 CP T, MT 932, MT 1030 S, MT 1033 HLT, MT 1235 CPT 10 10, MT 1240 L TURBO, MT 1335 HSL TURBO, MT 1335 S, MT 1435 HSL, MT 1435 SL, MT 1436 R, MT 1740SL, MT 1740SL TURBO, MT 1745 HSL TURB, MHT 950L T EVOLUTION, MLA LS, MLA LSU Power, MLA 628 Turbo, MRT 1430, MRT 1432, MRT 1440, MRT 1542, MRT 1635 M, MRT 1640, MRT 1742, MRT 1840, MC 25 4 ST5, MC 26 4 3 E2, MC 30 T 3 ES, MC 30 2 3 E2, MC 30 4 3 E2, MC 40 T S ES, MC 40 4 3 E2, MC 50 3 E2, MC 50 4 3 E2, MC 60 3 E2, MC 60 T 3 ES, MC 70 3 E2, TA 5, TA 6, TA 7, PS 6 AWS, TA 5 S, TA 6 S, TA 65, 6000, ALLDRIVE 5 TONNE, AD 5 T, AD 6 T, AD 9 T, CV 32 7 NG, MACH 050 4, MACH 057, MACH 164, MACH 257, MACH 260, MACH 290, MACH 294, MACH 357, MACH 357 5, MACH 360, MACH 361, MACH 364, MACH 394, MACH 455, MACH 457, MACH 464, MACH 466, MACH 490, MACH 494, MACH 555, MACH 557, MACH 564, MACH 566, MACH 597, MACH 654, MACH 655, MACH 657, MACH 664, SLCM 598 ZZ, EC 130, EW 130, EC 130C, EW 130C, EC 140, EW 140, EC 150, EW 150, EC 150C, EW 150C, EC 160, EW 160, RC3, 5000PS, 5002PSFA, 5003PS, 6000PS, 6002PSFA, 6003PSFL, PS6000, GTH4017SX, GTH4018SR, 3CXTURBO, 3CX4RM, 4CX, PC1205K, PC1505K, PC150HD5K, PC1805K, PC2105K, PC2403, PC2405NLC, CLG777, MT728, MT732, MT840CPT, MT930CPT, MT932, MT1033HLT, MT1235CPT1010, MT1240LTURBO, MT1335HSLTURBO, MT1335S, MT1435HSL, MT1435SL, MT1436R, MT1740SL, MT1740SLTURBO, MT1745HSLTURB, MHT950LTEVOLUTION, MLA627TURBO, MLALS, MLALSUPOWER, MLA628TURBO, MRT1430, MRT1432, MRT1440, MRT1542, MRT1635M, MRT1640, MRT1742, MRT1840, MC254ST5, MC2643E2, MC30T3ES, MC3023E2, MC3043E2, MC40TSES, MC4043E2, MC503E2, MC5043E2, MC603E2, MC60T3ES, MC703E2, TA5, TA7, PS6AWS, TA5S, TA65, ALLDRIVE5TONNE, AD5T, AD6T, AD9T, CV327NG, MACH0504, MACH057, MACH164, MACH257, MACH260, MACH290, MACH294, MACH357, MACH3575, MACH360, MACH361, MACH364, MACH394, MACH455, MACH457, MACH464, MACH466, MACH490, MACH494, MACH555, MACH557, MACH564, MACH566, MACH597, MACH654, MACH655, MACH657, MACH664, SLCM598ZZ, EC130, EW130, EC130C, EW130C, EC140, EW140, EC150, EW150, EC150C, EW150C, EC160, EW160, MLA628120LSUPOWER, MT1033HTL3E2, MT728CE2, MT728DE2, MT732BE2
Alternate Part Numbers:
86-05500-6005, 86-77903-0378, 86.77903.0378, 86.05500.6005, D3HF-6714-AA, D3HF.6714.AA, 86055006005, 075.115.561, 921350.0004, 061.115.561, D3HZ-6731-B, 30.00323.00, 75PF.6714AA, 30-00323-00, 061-115-561, 921350-0004, 75PF-6714AA, 075-115-561, 86779030378, D3HZ.6731.B, 10000.64852, 10000.65565, PFC.257.009, LFP55-0299, 75PF6714AA
Product Specifications
| L&S Part No. | LO930 |
|---|---|
| OEM No. | S503 |
| Unit of Sale | 1 |
| Size | 180mm x 92mm x 92mm x 3/4-16 UNF Thread |
| Applications | 303, 930S, MHT 780 T, MHT 860L TURBO, MHT 860LT LSU, MHT 950L EVOLUTION, MHT780T, MHT860LTLSU, MHT860LTURBO, MHT950LEVOLUTION, MLA 625, MLA 627 Turbo, MLA625, MLA627Turbo, MLA628-120LSUPower, MRT 1330, MRT 1540, MRT 2150M, MRT 2540, MRT1330, MRT1540, MRT2150M, MRT2540, MT 1033 HTL 3-E2, MT 1140 SL, MT 1230 SCP T, MT 1235 CPT 10, MT 1235 S, MT 1335 SL TURBO, MT 1337 SL TURBO, MT 1435 HSL T, MT 1435 SL TURBO, MT 1440 E3, MT 1440 SL, MT 1440 SL TURBO, MT 1637 SL TURBO, MT 1840 R, MT 728 C-E2, MT 728 D-E2, MT 732 B-E2, MT 830 CP T, MT 830 SCP T, MT 928, MT1030 S, MT1030S, MT1033HTL3-E2, MT1140SL, MT1230SCPT, MT1235CPT10, MT1235S, MT1335SLTURBO, MT1337SLTURBO, MT1435HSLT, MT1435SLTURBO, MT1440E3, MT1440SL, MT1440SLTURBO, MT1637SLTURBO, MT1840R, MT728C-E2, MT728D-E2, MT732B-E2, MT830CPT, MT830SCPT, MT928, PT9000, TA6, TA6S, TA9, TA9S, RC 3, SX7000, SX8000, SX9000, 5000 PS, 5002 PSFA, 5003 PS, 6000 PS, 6002 PSFA, 6003 PSFL, PS 6000, GTH 4017 SX, GTH 4018 SR, 3 CX TURBO, 3 CX 4 RM, 4 CX, PC 120 5K, PC 150 5K, PC 150HD 5K, PC 180 5K, PC 210 5K, PC 240 3, PC 240 5 NLC, CLG 777, MT 728, MT 732, MT 840 CP T, MT 930 CP T, MT 932, MT 1030 S, MT 1033 HLT, MT 1235 CPT 10 10, MT 1240 L TURBO, MT 1335 HSL TURBO, MT 1335 S, MT 1435 HSL, MT 1435 SL, MT 1436 R, MT 1740SL, MT 1740SL TURBO, MT 1745 HSL TURB, MHT 950L T EVOLUTION, MLA LS, MLA LSU Power, MLA 628 Turbo, MRT 1430, MRT 1432, MRT 1440, MRT 1542, MRT 1635 M, MRT 1640, MRT 1742, MRT 1840, MC 25 4 ST5, MC 26 4 3 E2, MC 30 T 3 ES, MC 30 2 3 E2, MC 30 4 3 E2, MC 40 T S ES, MC 40 4 3 E2, MC 50 3 E2, MC 50 4 3 E2, MC 60 3 E2, MC 60 T 3 ES, MC 70 3 E2, TA 5, TA 6, TA 7, PS 6 AWS, TA 5 S, TA 6 S, TA 65, 6000, ALLDRIVE 5 TONNE, AD 5 T, AD 6 T, AD 9 T, CV 32 7 NG, MACH 050 4, MACH 057, MACH 164, MACH 257, MACH 260, MACH 290, MACH 294, MACH 357, MACH 357 5, MACH 360, MACH 361, MACH 364, MACH 394, MACH 455, MACH 457, MACH 464, MACH 466, MACH 490, MACH 494, MACH 555, MACH 557, MACH 564, MACH 566, MACH 597, MACH 654, MACH 655, MACH 657, MACH 664, SLCM 598 ZZ, EC 130, EW 130, EC 130C, EW 130C, EC 140, EW 140, EC 150, EW 150, EC 150C, EW 150C, EC 160, EW 160, RC3, 5000PS, 5002PSFA, 5003PS, 6000PS, 6002PSFA, 6003PSFL, PS6000, GTH4017SX, GTH4018SR, 3CXTURBO, 3CX4RM, 4CX, PC1205K, PC1505K, PC150HD5K, PC1805K, PC2105K, PC2403, PC2405NLC, CLG777, MT728, MT732, MT840CPT, MT930CPT, MT932, MT1033HLT, MT1235CPT1010, MT1240LTURBO, MT1335HSLTURBO, MT1335S, MT1435HSL, MT1435SL, MT1436R, MT1740SL, MT1740SLTURBO, MT1745HSLTURB, MHT950LTEVOLUTION, MLA627TURBO, MLALS, MLALSUPOWER, MLA628TURBO, MRT1430, MRT1432, MRT1440, MRT1542, MRT1635M, MRT1640, MRT1742, MRT1840, MC254ST5, MC2643E2, MC30T3ES, MC3023E2, MC3043E2, MC40TSES, MC4043E2, MC503E2, MC5043E2, MC603E2, MC60T3ES, MC703E2, TA5, TA7, PS6AWS, TA5S, TA65, ALLDRIVE5TONNE, AD5T, AD6T, AD9T, CV327NG, MACH0504, MACH057, MACH164, MACH257, MACH260, MACH290, MACH294, MACH357, MACH3575, MACH360, MACH361, MACH364, MACH394, MACH455, MACH457, MACH464, MACH466, MACH490, MACH494, MACH555, MACH557, MACH564, MACH566, MACH597, MACH654, MACH655, MACH657, MACH664, SLCM598ZZ, EC130, EW130, EC130C, EW130C, EC140, EW140, EC150, EW150, EC150C, EW150C, EC160, EW160, MLA628120LSUPOWER, MT1033HTL3E2, MT728CE2, MT728DE2, MT732BE2 |
| Machine Type | Excavators, Telehandlers, Loaders |
| Fits Brands | AC Delco, Alco Filters, Ausa, Baldwin, Barford, Benford, Bomag, Case, Caterpillar, Claas, Clark, Crosland, Daewoo, Donaldson, Fiaam, Ford, Fram, General Motors, Genie, Greyfriars, Hengst, Hymac, Hyster, Ingersoll Rand, JCB, Kalmar Climax, Komatsu, Linde, Liugong, M.A.N, Mahle, Manitou, Mann & Hummel, Massey Ferguson, Mecalac, Motaquip, Motorcraft, Orenstein & Koppel, Perkins, Purolator, Renault, Saurer, Schuup, Sure, TFS, Terex, Thwaites, Transicold, U.F.I, Unipart, V.A.G, Volvo, Wacker Neuson, Woodgate |
| Fits Models | 303 | TA6, TA6S | TA9, TA9S | PT9000 | MHT 780 T | MHT 860L TURBO | MHT 860LT LSU | MHT 950L (T) EVOLUTION | MLA 625 | MLA 627 Turbo | MLA 628-120 LSU Power | MRT 1330 |
