Description
Overview:

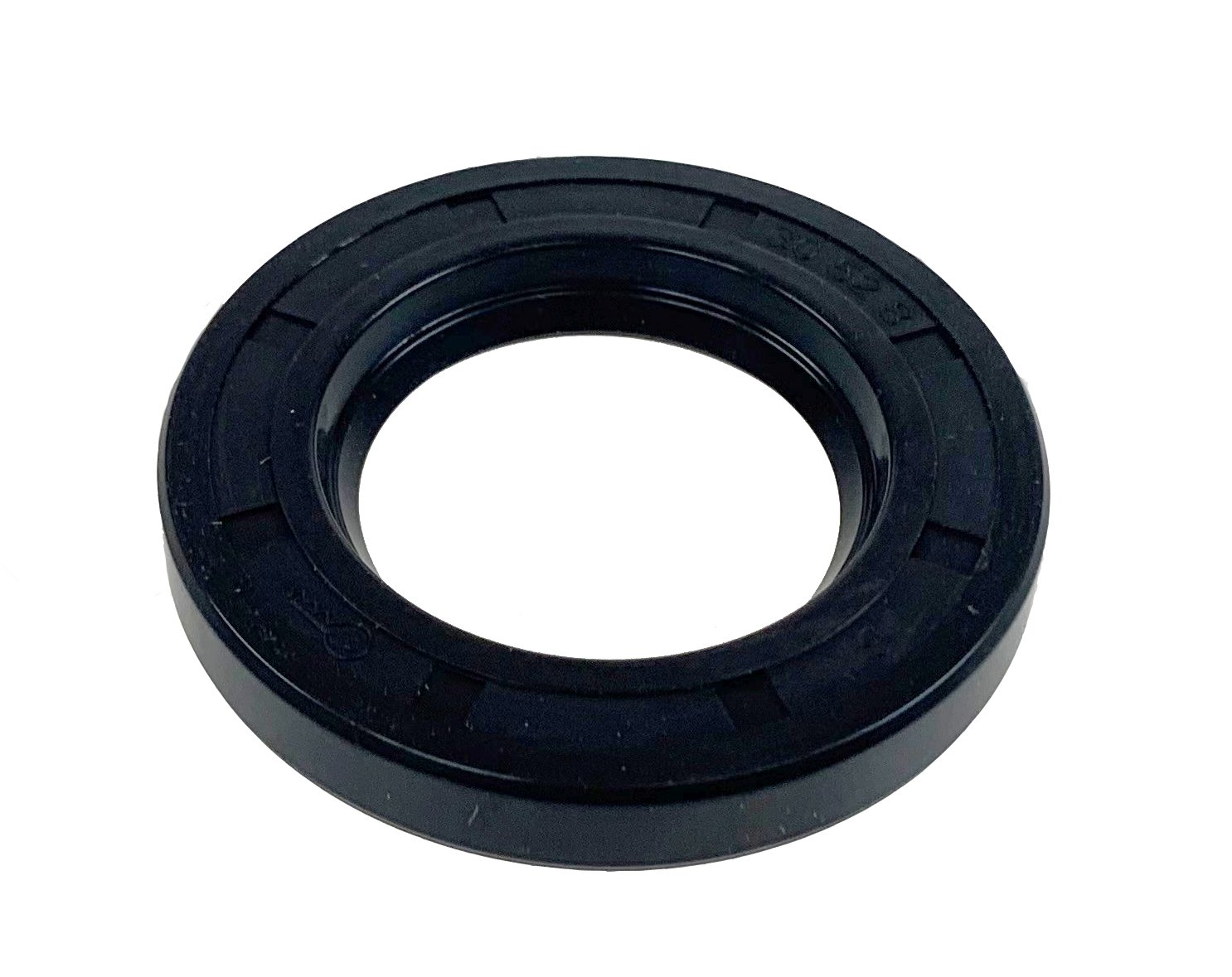

The Oil Seal 30 x 52 x 8 mm (MPN 763 046) is a rotary shaft seal for use in wheel hubs and bearing carriers that use common 6205, 41582-2 or 30205 bearings. It is specified to control grease within the hub and to help keep out water and dirt from the bearing cavity. The dimensions are 30 mm internal diameter, 52 mm outside diameter and 8 mm height, suiting housings and shafts machined to these metric sizes. This size is frequently found across light trailers, plant and equipment transport, and towing applications where these bearing references are used. The seal is supplied as a single service part for maintenance and overhaul work, supporting dependable bearing operation when installed to the correct orientation and to clean, undamaged sealing surfaces.
Key Features:
- 30 mm ID x 52 mm OD x 8 mm height (1.18 in x 2.05 in x 0.31 in)
- Suits bearing references 6205, 41582-2 and 30205
- Retains lubricant and helps exclude water, dust and road debris
- Metric sizing for common trailer and transport hub assemblies
- Suitable as a service replacement in wheel hubs and bearing carriers
- For use with correctly toleranced shafts and housings
Typical Applications:
Used in trailer and plant transport wheel hubs where the bearing set includes 6205 ball bearings or 30205/41582-2 taper roller bearings. Common in light commercial trailers, caravans, utility trailers and similar towing equipment. Fits hub and drum assemblies designed for a 30 mm shaft seal running diameter and 52 mm housing bore.
Also known as:
Maypole part number MP1842B
30x52x8 oil seal
Hub grease seal 6205/30205
41582-2 oil seal
Bearing seal 30-52-8
Product Specifications
| L&S Part No. | 763 046 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
