Description
Overview:

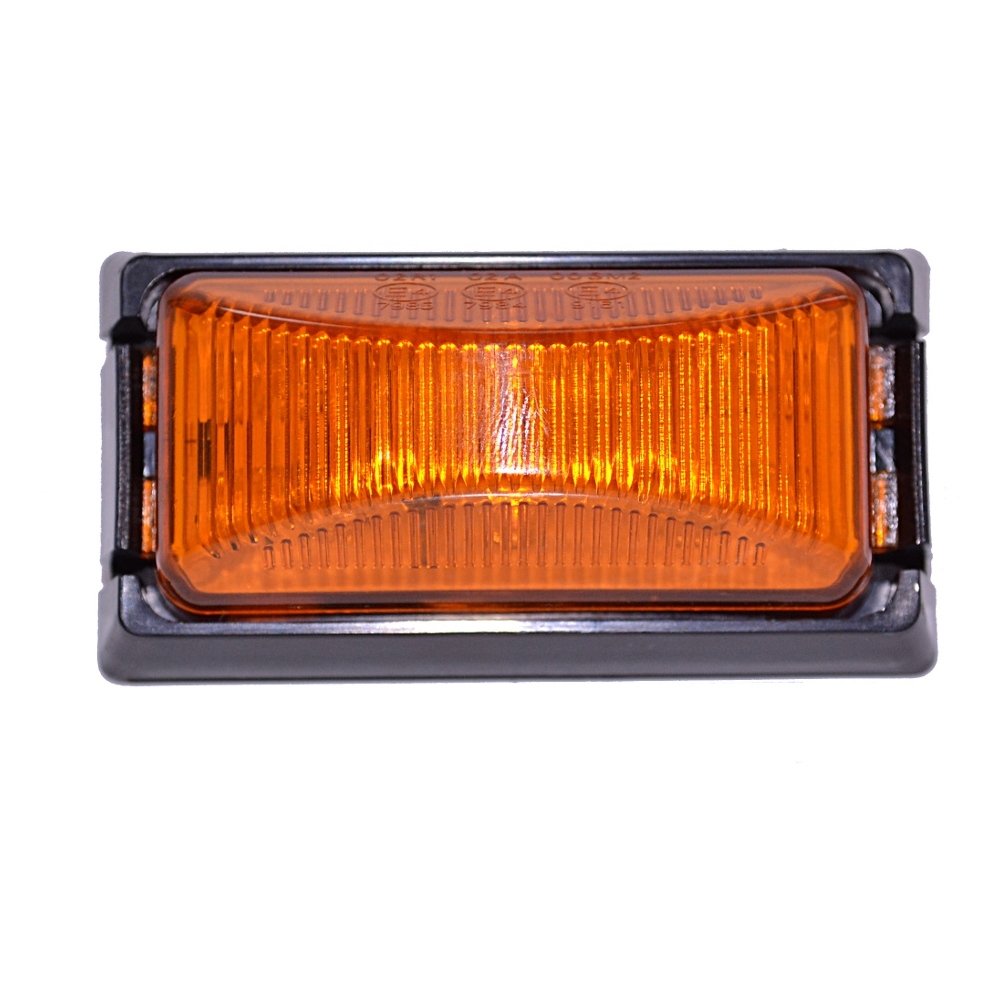

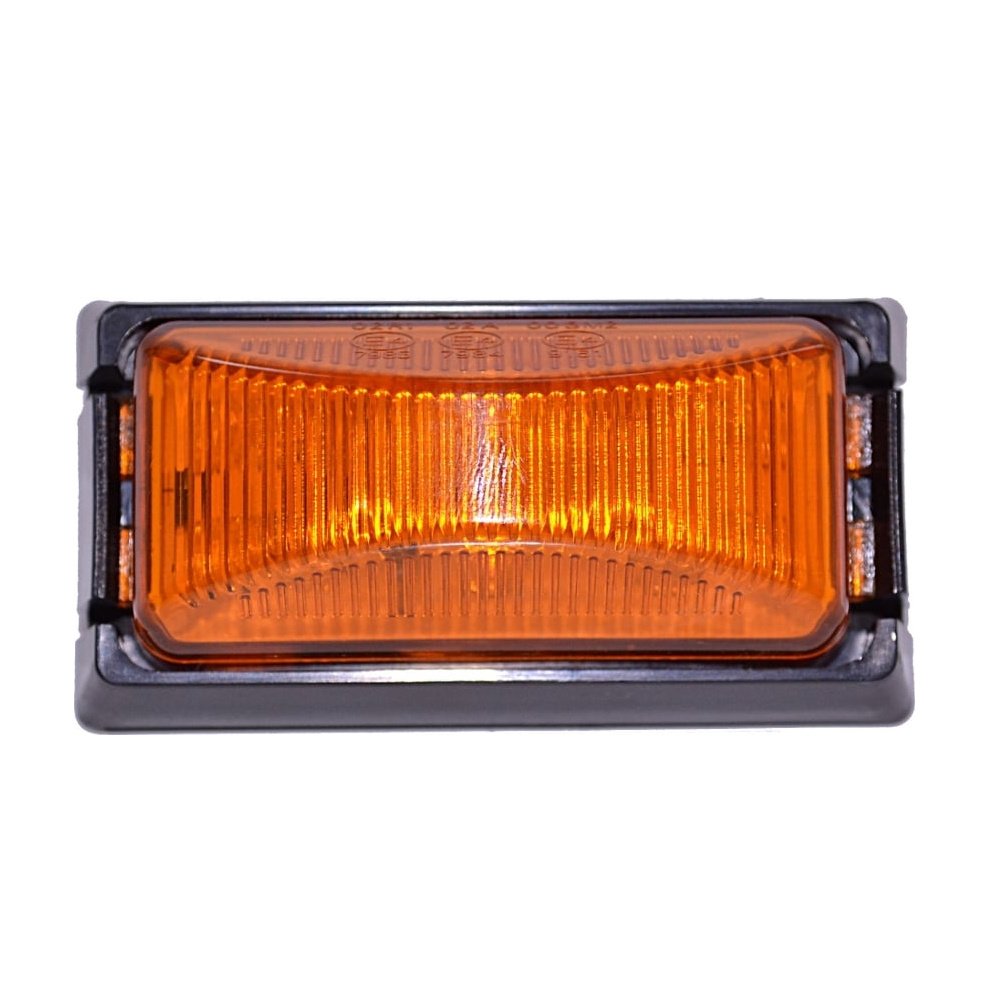

The LED Marker Lamp in amber is a compact, sealed lighting unit for vehicle marking and signalling on-road and on-site. Built with an epoxy resin seal around the electronics, it is both waterproof and shockproof for use in harsh outdoor conditions. It runs on 10-30 V DC, so it suits 12 V and 24 V systems across cars, vans, trailers, plant and agricultural machinery. The lamp uses six high-brightness LEDs to provide clear amber visibility as a side marker, position light, or indicator repeater where permitted. Its compact size, approximately 10 cm x 5 cm (4 inches x 2 inches), makes placement simple on bodywork and frames without taking up much space. Manufacturer Part Number: 207 015.
Key Features:
- Multi-voltage operation: 10-30 V DC for 12 V and 24 V vehicles
- Six high-brightness LEDs for strong, even amber output
- Epoxy resin sealed for durable waterproof and shockproof protection
- Compact footprint: approx. 10 cm x 5 cm (4 inches x 2 inches) for easy positioning
- Solid-state LED design for long service life and low maintenance
- Low current draw to reduce load on vehicle electrical systems
- Robust housing suitable for outdoor and site conditions
- Clear amber lens for compliant visual signalling where required
- Versatile use as side marker, position lamp, or indicator repeater (where appropriate)
- Manufacturer Part Number: 207 015
Typical Applications:
Side and outline marking on trailers, tippers, flatbeds, box vans, and recovery vehicles; auxiliary signalling on plant and site machinery such as dumpers and excavators; agricultural equipment including tractors and implements; and utility vehicles or garden machinery trailers. Useful for improving vehicle conspicuity at night or in low-visibility conditions on the road and around worksites.
Also known as:
Side marker light, position lamp, clearance light, outline marker, repeater light, 6 LED marker, auxiliary amber lamp, vehicle marker, LED side light, amber position indicator.
Product Specifications
| L&S Part No. | 207 015 |
|---|---|
| Unit of Sale | 1 |
| Size | 75mm X 35mm |
