Description
Overview:

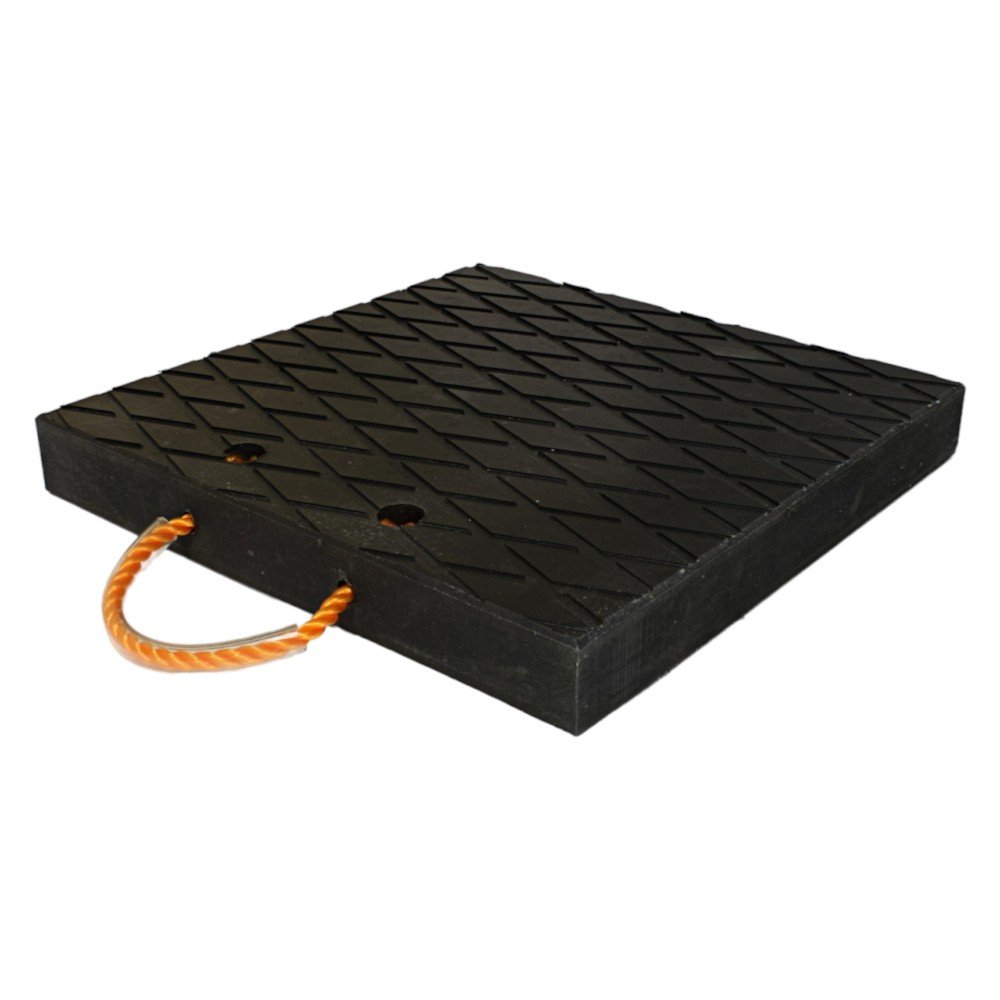

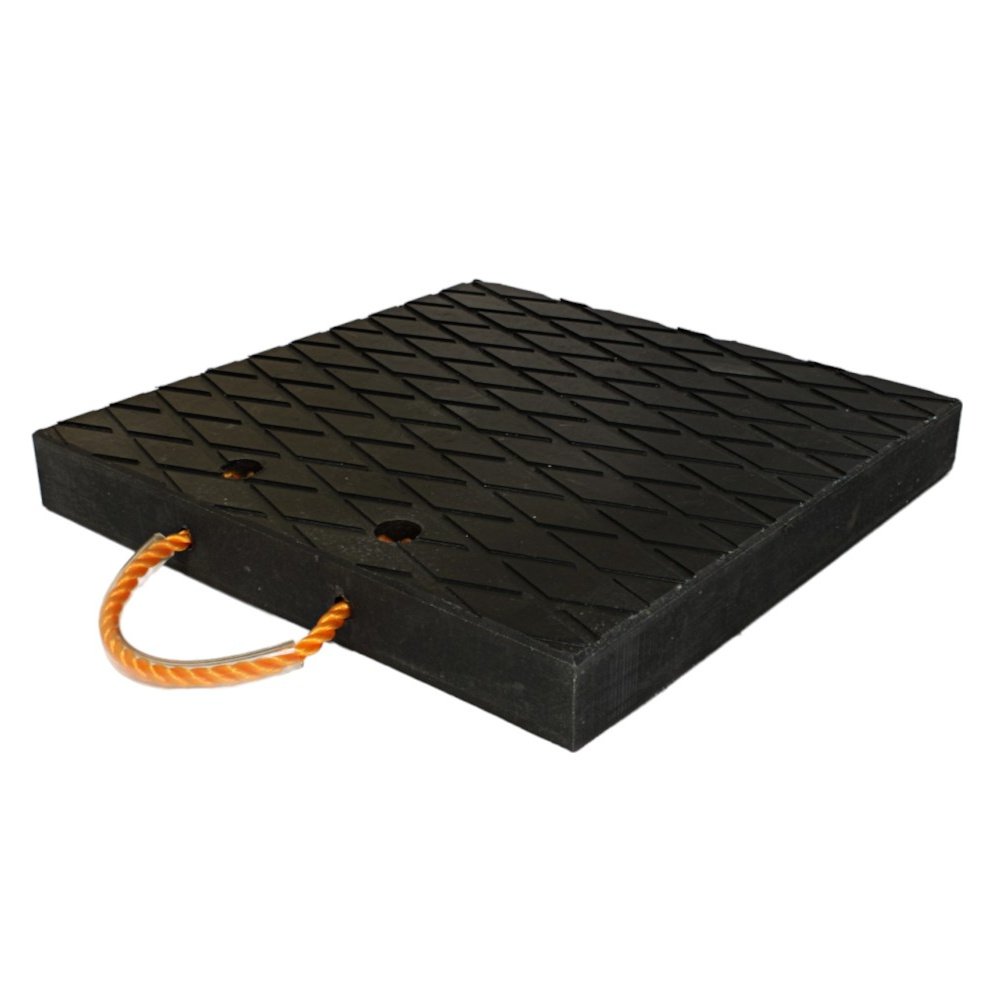

The Outrigger Cane Pad is a tough support pad for stabiliser feet, outriggers and jack legs used on construction plant and larger garden machinery. Manufactured from high-quality Ultra High Molecular Weight Polyethylene (UHMWPE), it spreads the load to reduce ground pressure and helps prevent sinking on soft, uneven or delicate surfaces. The pad supports a vertical load of 5-10 tonnes on flat, level ground, making it suitable for many light to medium-duty site tasks. Approximate size is 400 x 400 x 50 mm (15.75 x 15.75 x 1.97 inches) and the pad weighs 8.40 kg. Its bright, high-visibility colouring helps reduce trip hazards around the work area. Durable, weather-resistant and easy to clean, it is a practical choice for tradespeople and DIY users who need reliable, portable ground support.
Key Features:
- UHMWPE construction for excellent impact and wear resistance in demanding site conditions
- Approx. 400 x 400 x 50 mm (15.75 x 15.75 x 1.97 inches) for a stable bearing area without taking up excess space
- Supports 5-10 tonnes vertical load on flat ground; always assess ground conditions and leg size before use
- High-visibility colouring to help mark the work zone and reduce trip hazards
- Spreads loads to protect paving, tarmac and soil, reducing surface damage and settlement
- Won't absorb water, rust or rot; suitable for year-round outdoor use and easy to wipe clean
- Square profile with 50 mm thickness offers a solid, reliable interface under jack legs and feet
- Suitable for a wide range of plant and equipment with outriggers, stabilisers or jack legs
Typical Applications:
Placed under stabiliser feet, outriggers or jack legs on site to improve stability and reduce ground pressure. Common on access platforms, small cranes, service vehicles, towable chippers, lighting towers, generators and compact plant working on tarmac, block paving, concrete or prepared ground. Useful in gardens, driveways and landscaped areas where ground protection and secure footing are required.
Also known as:
Often referred to as an outrigger pad, crane pad, stabiliser pad, jack pad, jack leg pad, spreader pad, or outrigger mat. These terms describe the same type of load-spreading support used beneath outriggers and jack legs to increase stability and protect the surface.
Product Specifications
| L&S Part No. | 982 450 |
|---|---|
| Unit of Sale | 1 |
| Machine Type | Access Platforms |
| Key Features | - UHMWPE construction resists impact and wear - 400 x 400 x 50 mm size for stable support - Supports 5-10 tonnes vertical load on flat ground - High-visibility colour reduces trip hazards - Spreads loads to protect surfaces from damage |
