Description
Overview:

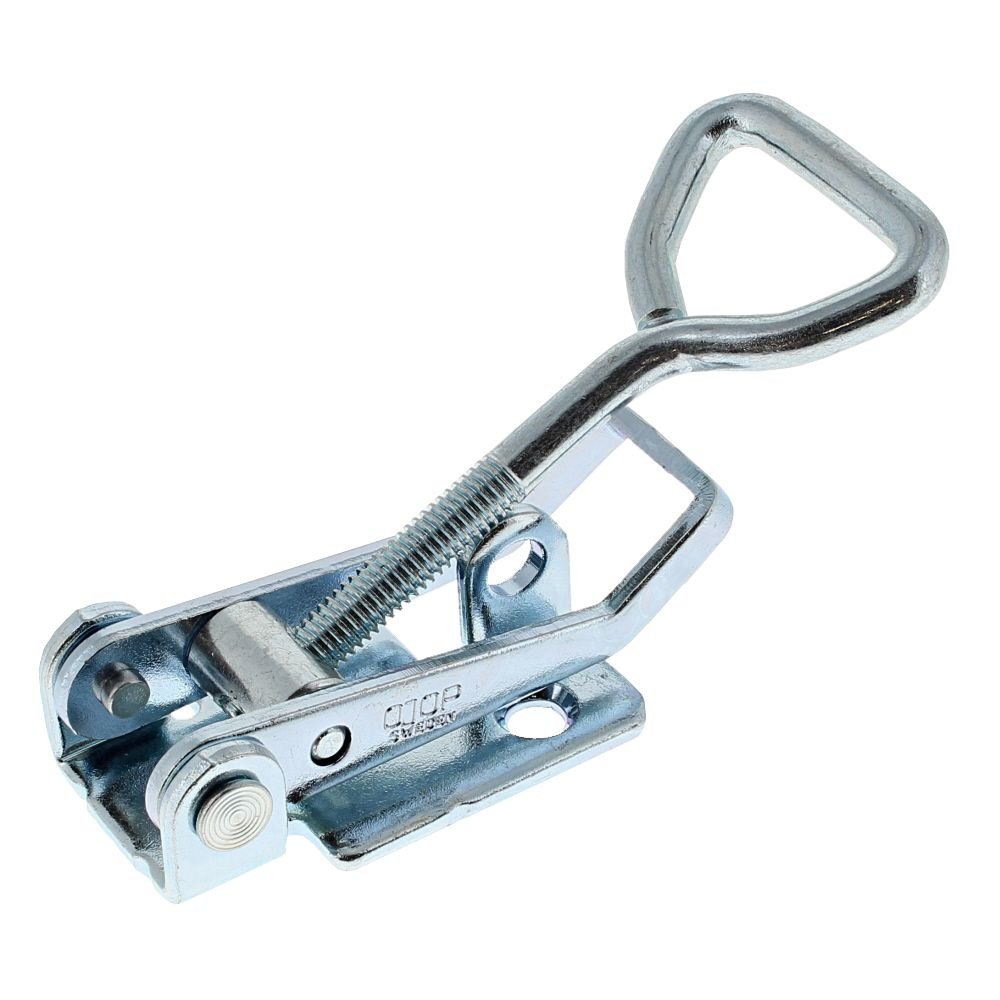

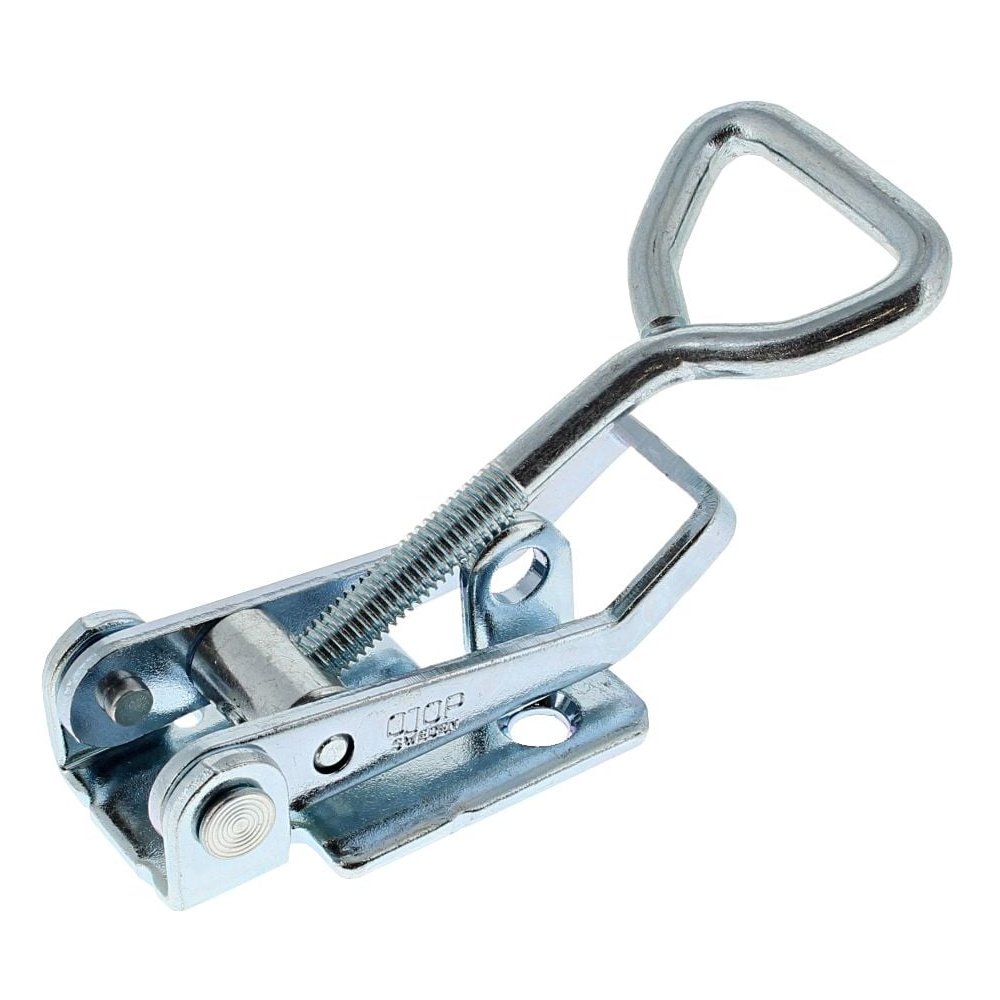

This is a medium locking over-centre fastener, zinc plated for corrosion protection, with an adjustable overall length of 107-122 mm (4.21-4.80 in). Supplied with an adjustable screw loop and a padlockable loop, it provides a secure, positive close for doors, hatches and panels on vehicle bodies and fabricated enclosures. Manufactured from mild steel with a clear passivated zinc finish, it is suitable for general-duty service on commercial vehicles, trailers and plant equipment where a compact, lockable latch is required. Mounting is via Ø5.5 mm (0.22 in) fixing holes. Works with compatible catch plates such as 10C and 31C types (available separately). This Medium Locking Over‐Centre Fastener (MPN 800 020 F) is commonly used on side lockers, service doors, canopies and machinery guards where a neat over-centre action and the option to padlock are needed.
Key Features:
- Mild steel construction for robust service life
- Zinc plated, clear passivated finish for corrosion resistance
- Locking over-centre action with integral padlock loop
- Adjustable screw loop with 15 mm (0.59 in) take-up
- Overall engaged length adjustable 107-122 mm (4.21-4.80 in)
- Body length 50 mm (1.97 in); body width 32 mm (1.26 in)
- Capacity rated to 300 kg (660 lb)
- Fixing holes Ø5.5 mm (0.22 in) for through-fastening
- Compatible with catch plates such as 10C and 31C types (sold separately)
- Brand: Ojop; type: locking over-centre fastener
Typical Applications:
Used on truck and trailer bodywork, plant transport and site equipment for securing side lockers, tool compartments, service doors, covers, generator and compressor canopies, tailgates and ramps. Suitable for general fabrication tasks where a compact, adjustable, padlockable over-centre latch is required on steel or timber panels in transport and plant environments.
Also known as:
Over-centre latch; Over-centre catch; Toggle latch; Draw latch; Locking toggle clamp; Padlockable latch
Product Specifications
| L&S Part No. | 800 020 F |
|---|---|
| Unit of Sale | 1 |
| Key Features | - Mild steel with zinc plating resists rust outdoors - 50 mm latch length fits tight panels - Adjustable locking range: 107-122 mm - Over-centre mechanism ensures rattle-resistant hold - Integrated padlock loop for added security |
