Description
Overview:

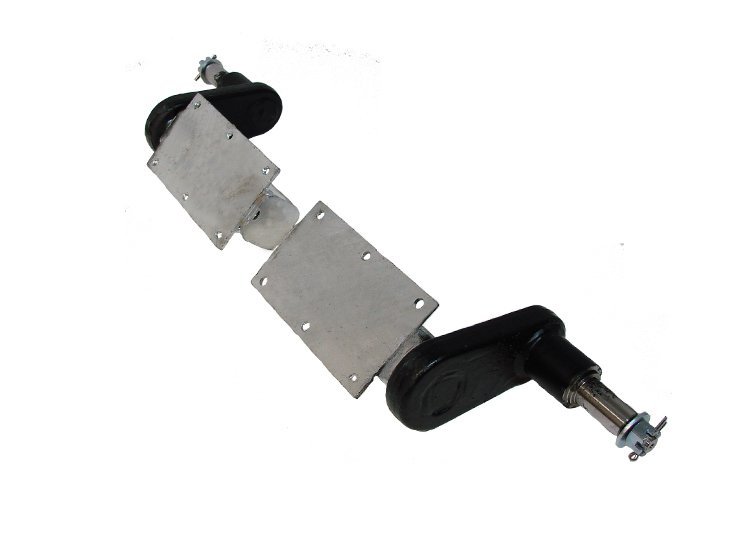

This pair of trailer suspension units (MPN 764 098) is a bolt-on solution for light trailer running gear where a compact, durable suspension is required without a full axle beam. Each heavy-duty arm carries a stub to accept 1′′ (25.4 mm) taper bearing hubs, allowing straightforward hub selection and replacement to suit the application. The arms are hot-dip galvanised for corrosion resistance in year-round use, and the suspension medium is a long-life polyurethane element designed to provide progressive support and vibration damping. With a 350 kg load capacity per pair (approximately 772 lb), these units are suitable for small general-purpose trailers and similar transport equipment. They mount via six M8 fixing holes per unit, and the arm length is 170 mm (6.69 in), aiding compact installation on new builds or refurbishments. Supplied without hubs; compatible hubs and fixings are available separately.
Key Features:
- Load capacity: 350 kg per pair (approx. 772 lb)
- Supplied as a matched pair; hubs not included
- Heavy-duty suspension arms with long-life polyurethane suspension medium
- Corrosion-resistant hot-dip galvanised finish
- Compatible with 1′′ (25.4 mm) taper bearing hubs, including MP418 / MP4180
- Six M8 mounting holes per unit for secure bolt-on installation
- Arm length: 170 mm (6.69 in) for compact fitment
- Spare/optional hardware: MP1837 hub fixing pack (2 castle nuts, washers, cotter pins)
Typical Applications:
Used on light trailers where an independent suspension unit is preferred over a beam axle, including small box trailers, utility trailers and general transport builds for site and yard use. Fits 1′′ (25.4 mm) taper bearing hubs such as MP418 and MP4180. Ideal for trailer repairs, refurbishments or custom builds where a galvanised, polyurethane-sprung unit with a 350 kg per pair rating is required. For hub hardware, the MP1837 fixing pack may be used where castle nuts, washers and cotter pins are needed.
Also known as:
- Maypole part number MP207
- Polyurethane trailer suspension units
- Galvanised stub axle suspension arms
- Bolt-on suspension units without hubs
- 350 kg trailer suspension pair
Product Specifications
| L&S Part No. | 764 098 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
