Description
Overview:

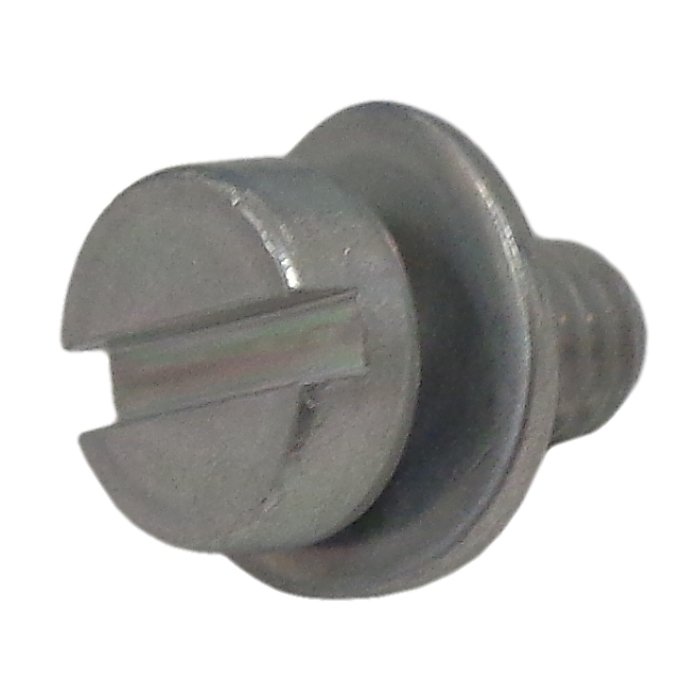

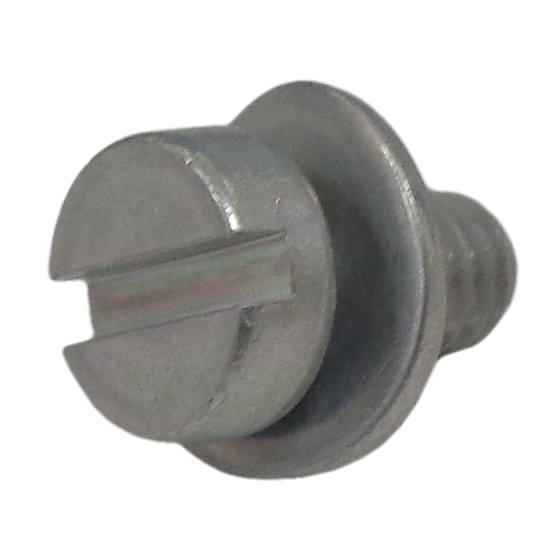

The Pan Head Screw M4x8 for Stihl 048, 070 (part number 9047 319 0630) is a genuine Stihl fastener made for dependable service in chainsaws and handheld power equipment. Manufactured from durable steel with a corrosion‐resistant finish, it provides a secure clamp and tidy, low‐profile seating thanks to its pan head form. The metric size M4 x 8 mm (4 mm diameter x 8 mm length) is suited to compact assemblies where strength and clearance both matter. Built to OEM standards, it helps maintain correct alignment and fastening torque across components, supporting reliable operation and long service life. Ideal for maintenance and rebuild work on legacy Stihl machines, including models such as the 048 and 070.
Key Features:
- Genuine Stihl part for assured fit, material quality, and compatibility
- Pan head provides a broad bearing surface to reduce marking and spread load
- M4 x 8 mm size suits small housings, covers, and brackets in tight spaces
- Robust steel construction with a corrosion‐resistant finish for durability
- Made to OEM tolerances for consistent engagement with mating threads
- Easy to fit with common hand tools and straightforward to replace during servicing
- Helps maintain fastening integrity and reduces the risk of loosening when torqued correctly
- Suitable for classic Stihl equipment, supporting long‐term upkeep of older models
Typical Applications:
Used for fastening light to medium-duty components on Stihl machinery, such as covers, guards, shrouds, small brackets, and housings. Common in assembly and routine maintenance tasks where a short M4 fastener is required to secure panels or fittings without fouling moving parts.
Also known as:
M4 x 8 pan screw, pan‐head machine screw, metric pan head screw, M4x8 fastener, small engine fastener, M4 bolt (pan head), Stihl M4 screw.
Fits Models:
030, 031, 042 AV, 048, 070, 090, 090G, BG17, E30, SG17, SG17L
Alternate Part Numbers:
9047-319-0630, 90473190630
Product Specifications
| L&S Part No. | 9047 319 0630 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90473190630 |
| Unit of Sale | 1 |
| Applications | 030, 031, 042 AV, 042AV, 048, 070, 090, 090G, BG17, E30, SG17, SG17L |
| Machine Type | Chainsaws, Blower/Shredders |
| Fits Brands | Stihl |
| Fits Models | 030, 031 | 042 AV | 048 | 070 | 090, 090G | E30 | SG17, SG17L |
