Description
Overview:

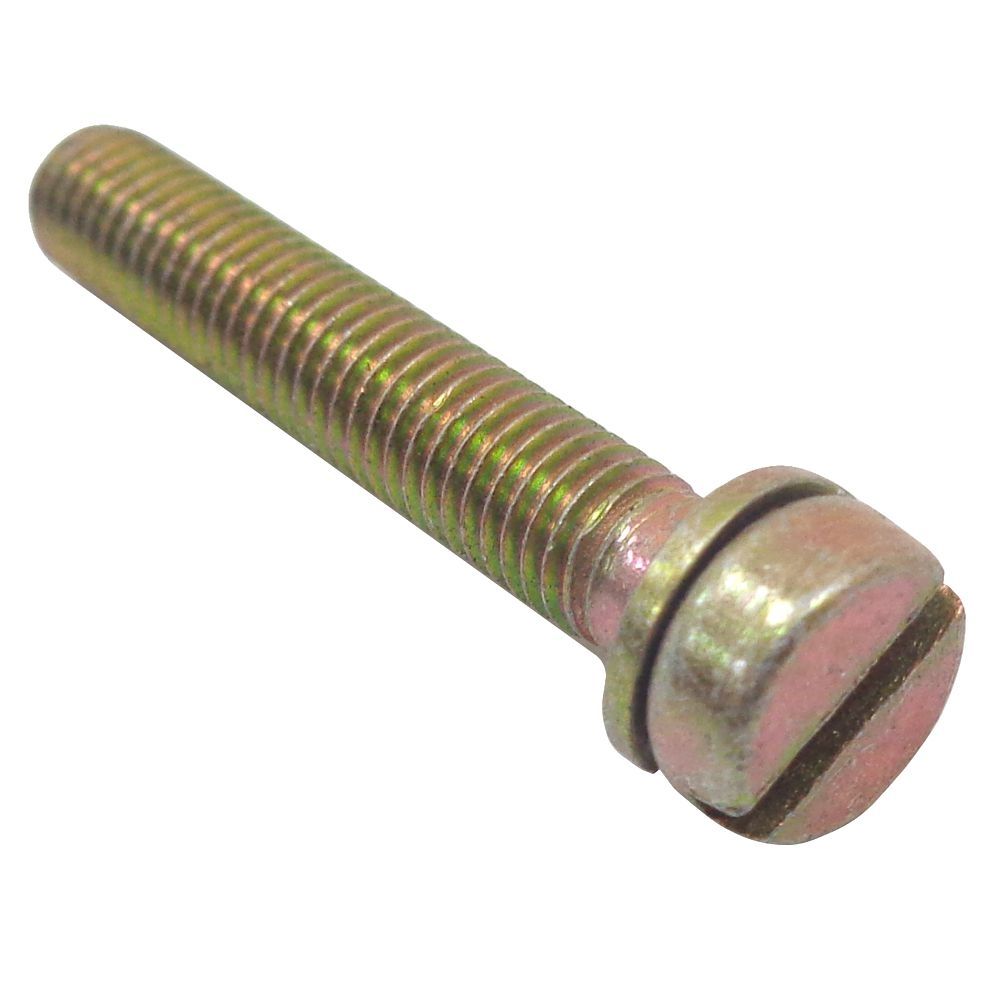

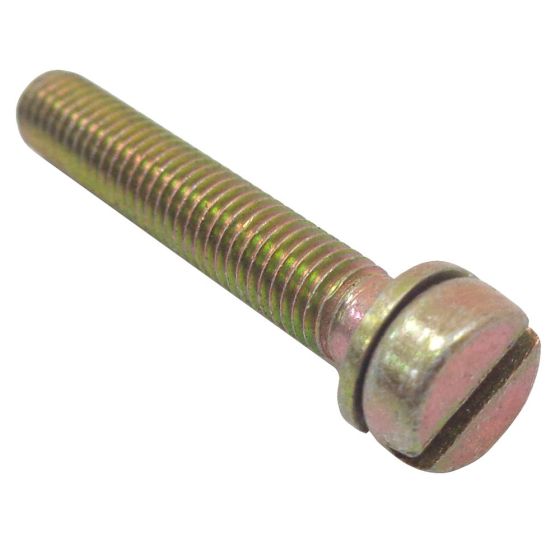

This Pan Head Screw M5x30 is a genuine Stihl fastener designed for reliable use across selected Stihl equipment, including the FS 96 brushcutter and SG 17 sprayer/disc cutter family. It features an M5 metric thread with a 30 mm shaft length, making it suitable for securing covers, housings and brackets where a low, rounded pan head is required. Manufactured from durable steel for dependable hold, it helps maintain correct assembly and performance under vibration and regular use. Identified by Stihl MPN 9049 216 1070, it is a direct-fit replacement for the specified machines, supporting straightforward maintenance and repairs without guesswork. Ideal for tradespeople, grounds teams and DIY users who need an accurate, OEM-correct screw for dependable fastening.
Key Features:
- Genuine Stihl part for assured fit and compatibility (MPN 9049 216 1070)
- M5 thread x 30 mm length for common fastening points on Stihl machines
- Pan head profile provides a broad bearing surface and neat, low-profile finish
- Steel construction for strength and dependable clamping under vibration
- Suitable for covers, guards, housings and bracket assemblies on listed models
- Helps maintain machine integrity and safe operation over time
- Simple to replace like-for-like with the original hardware
Typical Applications:
Used for fastening bodywork and functional components such as shrouds, recoil housings, guard plates and accessory brackets on compatible Stihl tools. Common in routine servicing, part replacements and reassembly after repair. Suitable for environments with regular vibration, as found in brushcutters, blowers and disc cutters, where secure, repeatable clamping is essential.
Also known as:
Pan head machine screw M5x30, M5 pan screw 30 mm, M5 machine bolt with pan head, M5x30 OEM screw, fastener for covers/housings, metric pan head fixing.
Fits Models:
08 S, 08S, BG 17, BG17, FS 96, FS96, SG 17, SG 17 L, SG17, SG17L, TS 08, TS 08 S, TS08, TS08S
Alternate Part Numbers:
9049-216-1070, 90492161070
Product Specifications
| L&S Part No. | 9049 216 1070 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90492161070 |
| Unit of Sale | 1 |
| Machine Type | Brushcutters, Disc Cutters |
| Fits Brands | Stihl |
| Key Features | - Genuine Stihl part, MPN 9049 216 1070 - M5 thread x 30 mm length - Pan head for broad bearing surface - Steel construction for strength under vibration - Fits FS 96, SG 17, TS 08 models |
| Fits Models | 08S | TS08S, TS08 | FS96 | SG17, SG17L |
