Description
Overview:

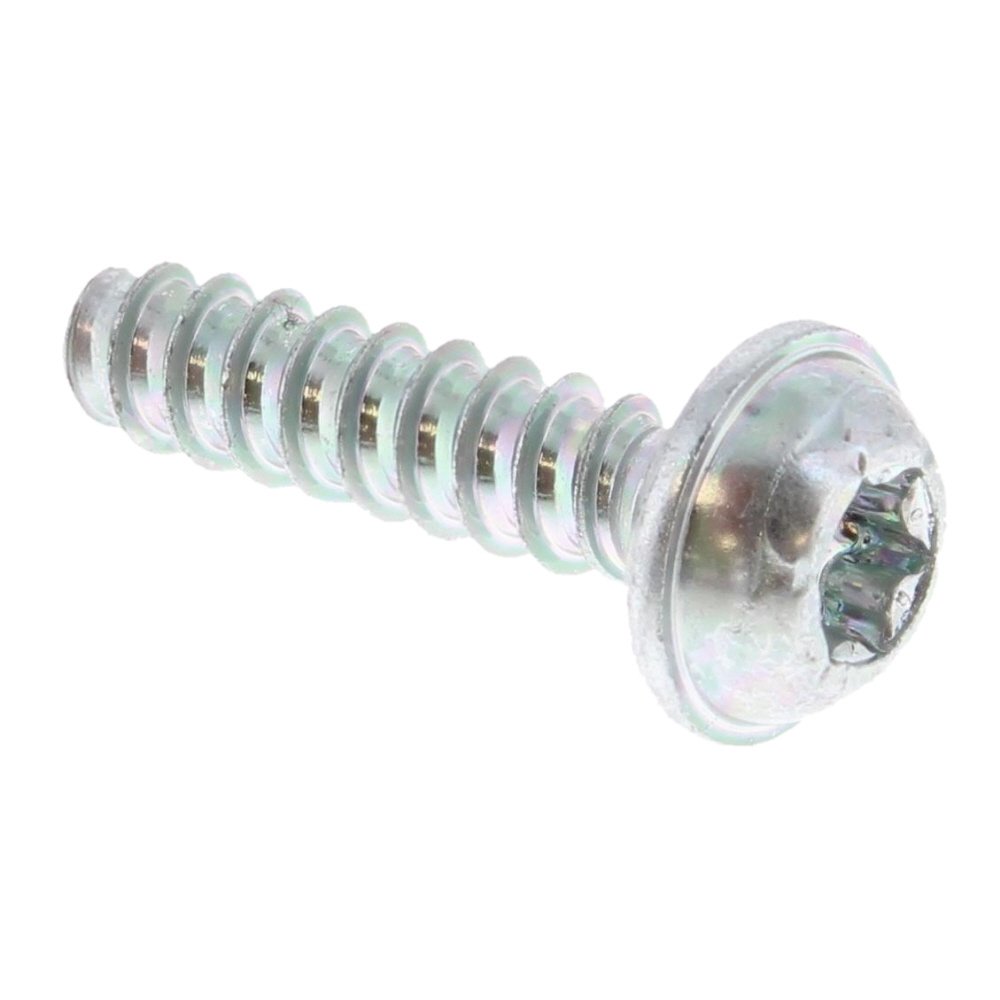

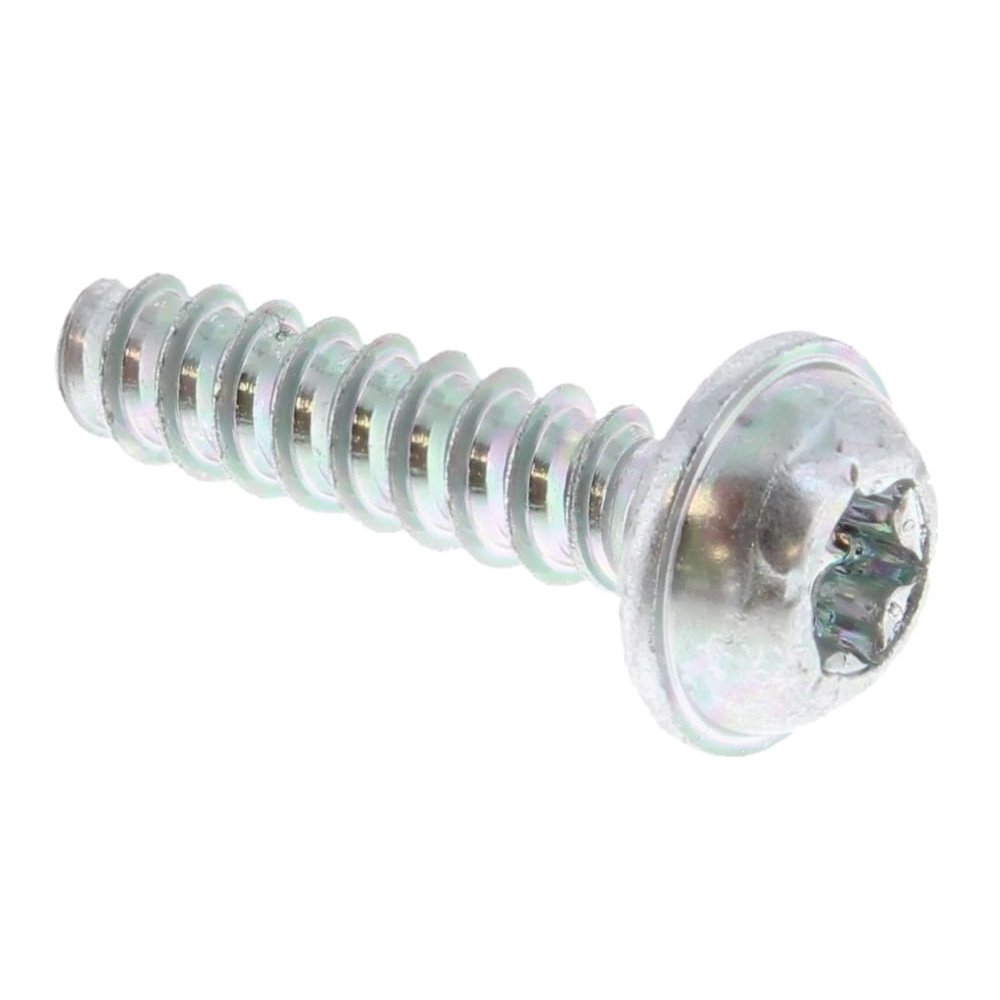

The Stihl 9074 477 3025 pan head self-tapping screw is a Genuine Stihl fastener used across a range of battery and petrol garden and construction tools. Manufactured from durable steel with a protective finish, it forms its own thread in suitable plastics or thin metal, creating a secure hold without the need for a pre-tapped hole. The broad pan head spreads load to help protect housings and covers from damage. Commonly used on tools such as the HSA56 hedge trimmer and FSA56 brushcutter, it is also specified on higher‐power machines in the same family. This OEM screw is designed for reliable fit and repeatable servicing, helping to keep your equipment assembled correctly and operating safely in everyday use.
Key Features:
- Genuine Stihl part (9074 477 3025) for correct fit and specification
- Self-tapping thread cuts its own mating thread in plastics or thin metal for quick installation
- Pan head provides a wide clamping surface for secure retention of covers and housings
- Consistent sizing and head profile for reliable seating and torque control
- Suitable for routine maintenance, replacements, and repairs without special tooling
- Designed for use on outdoor power equipment exposed to vibration and frequent handling
- Compatible with a wide range of Stihl cordless and petrol tools for streamlined spares stocking
- Helps maintain safe assembly of guards, handles, and casing components
Typical Applications:
Used to secure housing halves, motor or gearbox covers, handle shells, guards, battery compartment components, fan cowls, and brackets on Stihl trimmers, hedge trimmers, blowers, and multi-tools. Ideal for quick replacements during servicing or when a fastening point has loosened or been lost in use.
Also known as:
Retaining screw, cover screw, self‐tapper, pan head fastener, sheet‐metal screw, plastic‐thread screw, fixing, casing screw.
Fits Models:
BGA200, BGA56, BGA57, BGA60, BGA86, FSA120, FSA120R, FSA130, FSA130R, FSA56, FSA57, HLA 135, HLA 135 K, HLA 66, HSA100, HSA50, HSA56, HSA60, HTA 135, HTA 150.0, HTA 160.0, KMA 135R, KMA130R, SHA56
Alternate Part Numbers:
9074-477-3025, 90744773025
Product Specifications
| L&S Part No. | 9074 477 3025 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90744773025 |
| Unit of Sale | 1 |
| Applications | BGA200, BGA56, BGA57, BGA60, BGA86, FSA120, FSA120R, FSA130, FSA130R, FSA56, FSA57, HLA 135, HLA 135 K, HLA 66, HLA135, HLA135K, HLA66, HSA100, HSA50, HSA56, HSA60, HTA 135, HTA 150.0, HTA 160.0, HTA135, HTA150.0, HTA1500, HTA160.0, HTA1600, KMA 135R, KMA130R, KMA135R, SHA56 |
| Machine Type | Brushcutters, Cordless Blowers, Hedgetrimmers, Pole Pruners |
| Fits Brands | Stihl |
| Fits Models | HSA56 | BGA56 | FSA56 | KMA130R | KMA 135R | SHA56 | BGA57 | BGA60 | BGA86 | BGA200 | HLA 135, HLA 135 K | HSA50 | HSA60 | HSA100 | FSA57 | FSA120 | FSA120R | HLA 66 | HTA 135 | HTA 150.0 | HTA 160.0 | FSA30 | FSA80 | FSA80R | FSA400 | RGA140 | BGA30 | BGA50 | BGA160 | BGA250 | KMA80R | KMA120R | KMA200R | HSA140 | HSA150 | AME 1600 | FSA130 | FSA130R | FSA135 | FSA135R | FSA200 | FSA200R |
