Description
Overview:

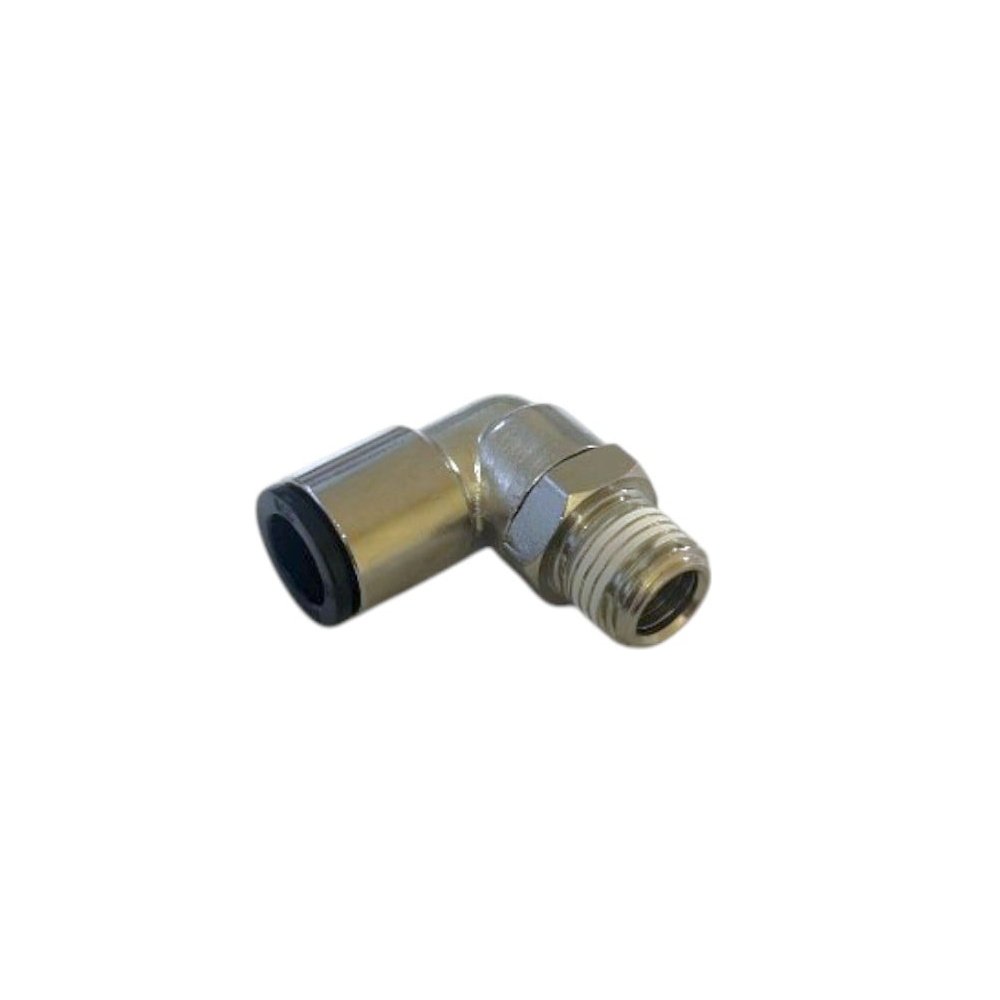

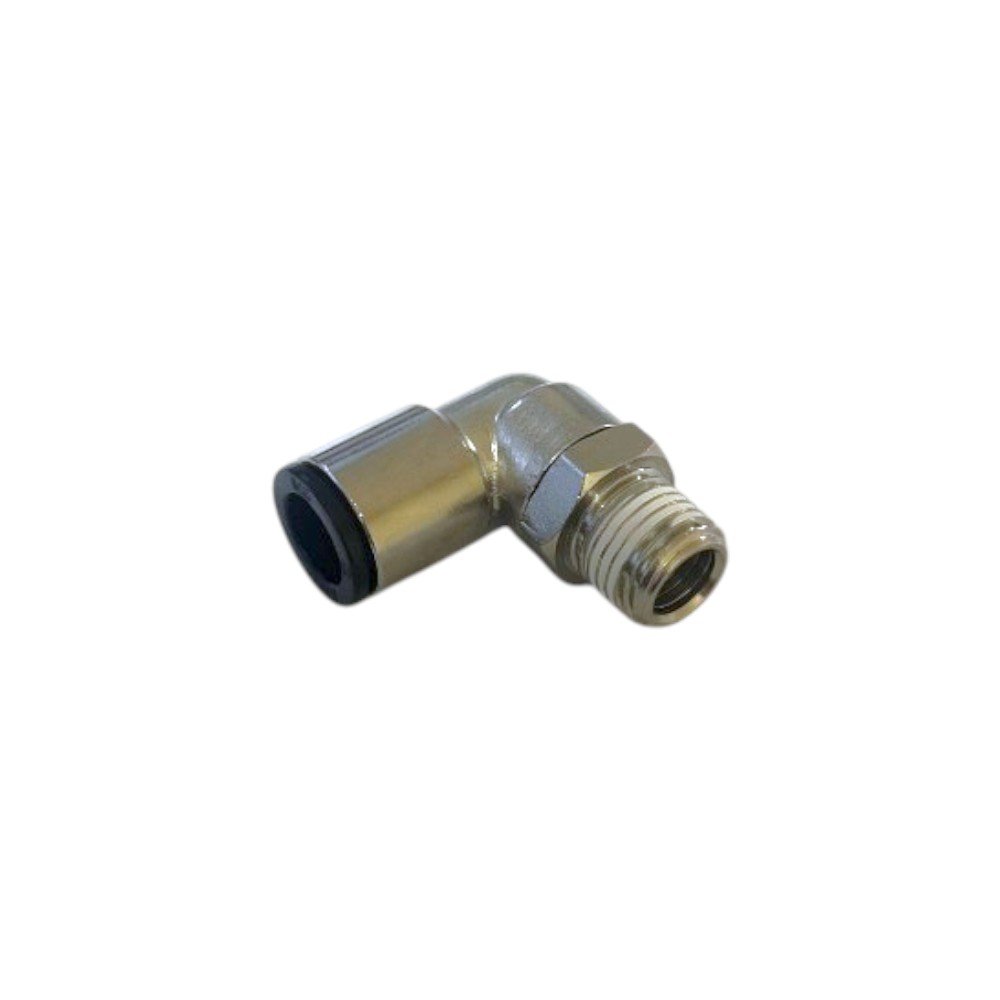

The PCL Swivel Elbow R 1/4" Male Thread to 10mm Tube (PSE1002) is a compact pneumatic connector for routing air lines at a right angle while maintaining a secure, leak‑resistant joint. It adapts an R 1/4" male (BSPT tapered) threaded port to a 10mm outside‑diameter tube using a quick push‑in connection. The swivel function allows the elbow to be oriented after installation, helping to relieve stress on the tube and simplify hose management in tight spaces. Designed for general compressed air circuits on tools, machinery and workshop air systems, this OEM PCL fitting supports reliable airline connections where a 90‑degree change of direction and fine alignment are required. Suited to maintenance, upgrades and new builds needing consistent, repeatable assembly.
Key Features:
- Thread type: R 1/4" male (BSPT tapered)
- Tube connection: 10mm OD push‑in port
- Swivel elbow allows tube alignment after installation
- 90‑degree form for compact routing in confined spaces
- Push‑in design enables quick assembly and removal
- Tapered thread suited to sealing with PTFE tape or sealant
- Compatible with standard compressed air systems
- Helps reduce hose kinking and side loading on ports
- OEM PCL component for consistent fit and performance
- Part number for identification and spares control: PSE1002
- Suitable for manifolds, valves, cylinders and tool outlets
- Clean, repeatable connection for maintenance and retrofits
Typical Applications:
Used in compressed air lines on workshop tools, factory automation, packaging machinery, pneumatic control panels, manifolds, and machine ports requiring a right‑angle connection. Ideal where a 1/4" BSPT male thread needs adapting to 10mm OD tube with adjustable orientation, such as regulators, air preparation units, cylinders, and equipment drops in garages, body shops, and general industrial settings.
Also known as:
Swivel male elbow, R 1/4" BSPT to 10mm push‑in elbow, pneumatic elbow fitting, rotary elbow, air line push‑fit elbow, 1/4" BSPT male elbow to 10mm tube, PCL pneumatic connector, PSE1002 elbow.
Product Specifications
| L&S Part No. | PSE1002 |
|---|---|
| Manufacturer | PCL |
| OEM No. | PSE1002 |
| Unit of Sale | 1 |
