Description
Overview:

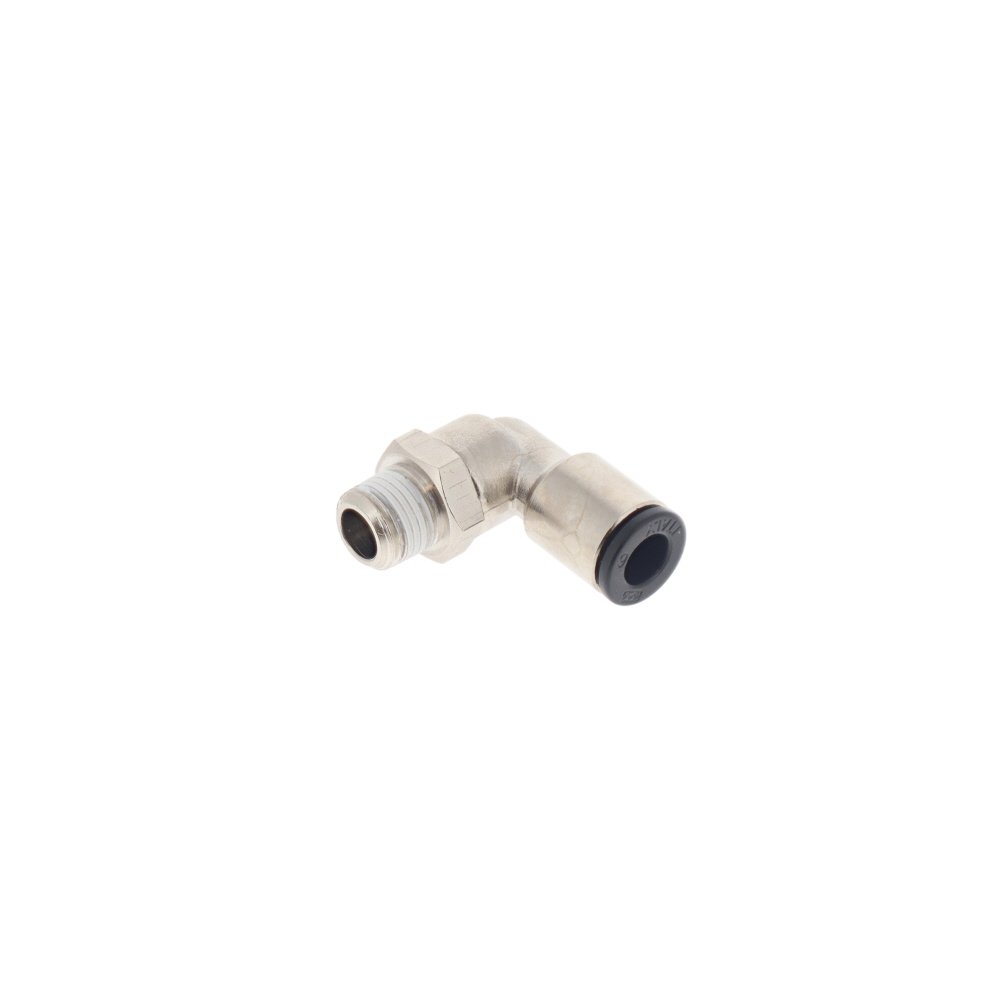

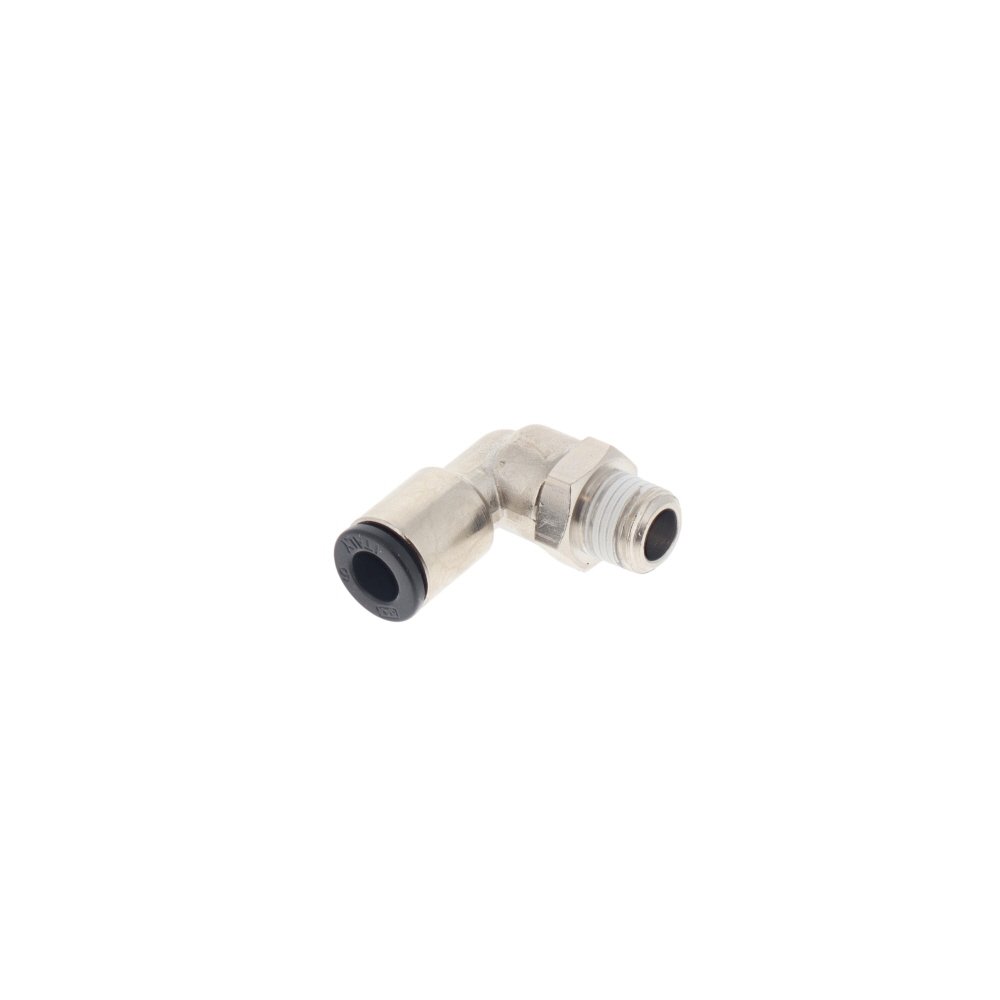

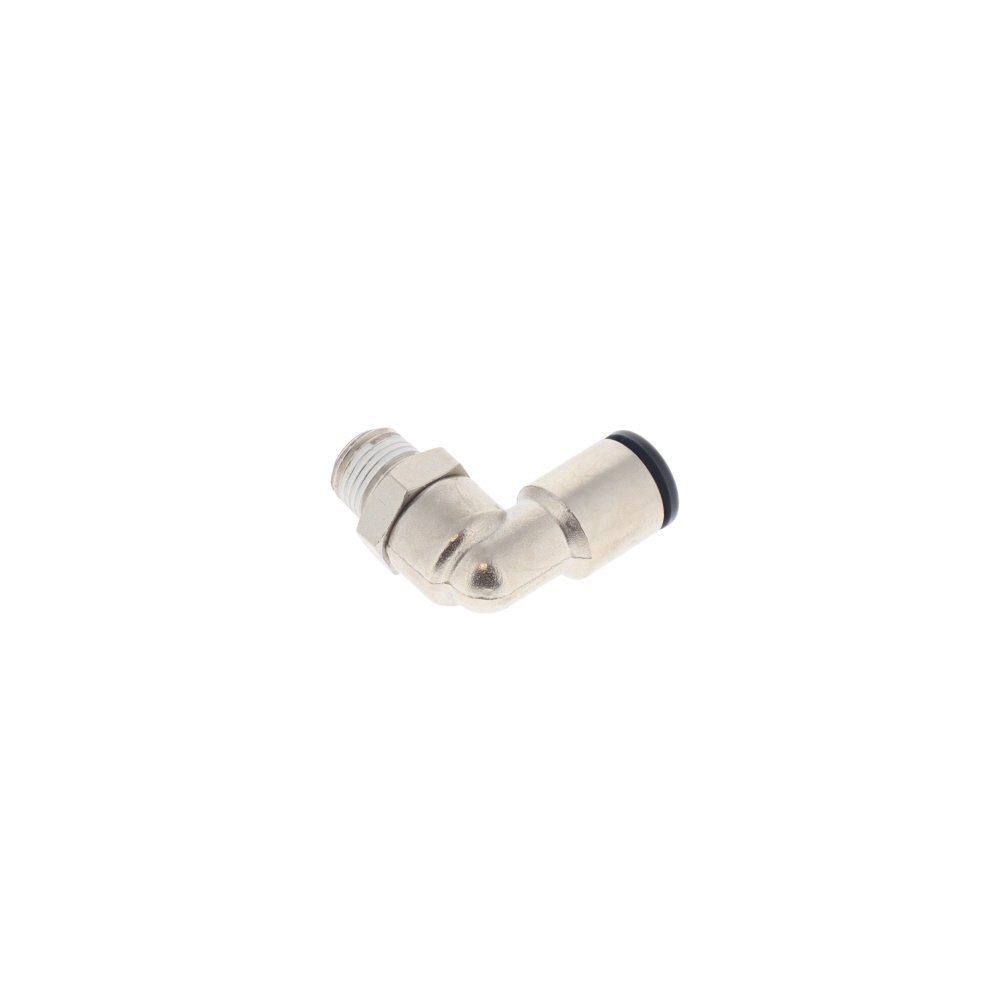

The PCL Swivel Elbow R 1/8" Male Thread to 6mm Tube (PSE601) is a right‑angle pneumatic connector for linking a threaded port to 6 mm tube in compressed air systems. The male R 1/8" (BSPT) tapered thread suits standard pneumatic ports on valves, cylinders, manifolds and air tools, while the 6 mm tube end provides a secure tube connection. The swivel body lets you set the outlet direction during installation, helping to reduce tube twist and enable neat routing in confined spaces. Designed for everyday workshop and industrial use, it provides a clean 90° change of direction with minimal added length. For best results, use PTFE tape or thread sealant on the tapered thread to achieve a reliable, leak‑tight joint. Genuine PCL pneumatic component, OEM No. PSE601.
Key Features:
- Connection A: R 1/8" (BSPT) male tapered thread
- Connection B: 6 mm pneumatic tube port
- 90° elbow for compact routing in tight spaces
- Swivel design allows orientation adjustment during installation
- Compatible with compressed air and general pneumatic circuits
- Suits valves, cylinders, manifolds and air tool fittings
- Tapered thread seals with PTFE tape or anaerobic sealant
- Helps reduce tube bend radius and kinking at the port
- Genuine PCL OEM component, part number PSE601
- Suitable for use with 6 mm nylon or polyurethane pneumatic tubing
Typical Applications:
Used in compressed air lines on machinery, assembly equipment and vehicle workshops to connect 6 mm tubing to R 1/8" threaded ports. Common on pneumatic control panels, cylinders, valve islands, filters, regulators and air tool manifolds where a 90° outlet and adjustable orientation are required.
Also known as:
Swivel elbow fitting, R 1/8 male to 6 mm tube, BSPT male elbow, pneumatic elbow connector, right‑angle tube fitting, compressed air swivel elbow, elbow adaptor, 6 mm tube elbow, adjustable elbow connector.
Product Specifications
| L&S Part No. | PSE601 |
|---|---|
| Manufacturer | PCL |
| OEM No. | PSE601 |
| Unit of Sale | 1 |
