Description
Overview:

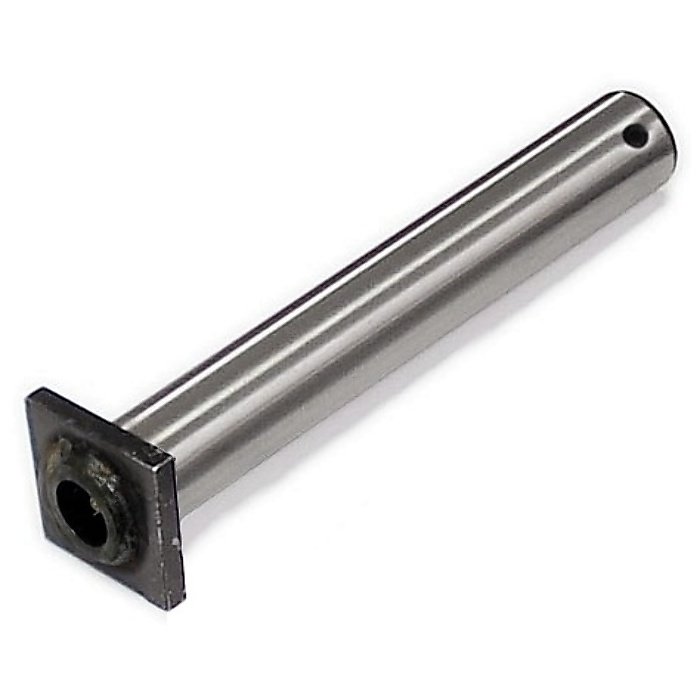

The 30 mm Bucket Pin is a non-genuine replacement pin for compact diggers and excavators. It links the bucket to the dipper arm or linkage, restoring smooth and controlled movement where the original pin is worn. Made from durable steel with a welded retaining plate and a grease nipple for easy lubrication, it is built for daily site use. Key dimensions are a 30 mm (1.18 in) diameter and 170 mm (6.69 in) pin length, with 160 mm (6.30 in) from the plate face to the hole centre and 175 mm (6.89 in) from the plate face to the end of the pin. Suitable for a range of small excavators including PelJob EB10 and Bobcat X320.
Key Features:
- 30 mm (1.18 in) pin diameter for common compact excavator pivots
- 170 mm (6.69 in) overall pin length
- 160 mm (6.30 in) distance from plate face to cross-hole centre
- 175 mm (6.89 in) distance from plate face to pin end
- Integrated grease nipple for routine lubrication and easier maintenance
- Durable steel construction with a machined finish for consistent fit
- Welded retaining plate for secure location in the bucket/dipper joint
- Helps restore smooth bucket articulation and reduce play when correctly greased
- Straightforward like-for-like replacement; check dimensions match your old pin
- Non-genuine part offering a practical, cost-effective repair
Typical Applications:
Used at the bucket-to-arm or linkage pivot on mini and midi excavators during bucket changes, overhaul of worn joints, or routine maintenance. Ideal for construction, utilities, landscaping, and plant hire tasks where accurate digging and grading depend on tight, well-lubricated pivots.
Also known as:
Bucket pin, excavator bucket pin, bucket shaft, excavator shaft, digger shaft, linkage pin, pivot pin for compact excavators and mini diggers.
Fits Models:
PelJob EB10, Pel Job EB12, Pel Job EB12.4, Pel Job EB14.4, Pel Job EB16.4, Pel Job Sirius, Bobcat X220, Bobcat X320, Bobcat X322, Bobcat X322C, Bobcat X322D, Bobcat X323, Bobcat E14, Volvo EC14, Volvo EC15, Volvo EC15B, Volvo EC17, Volvo EC18, Volvo EC18C, Yanmar B12, Yanmar B12-3, Yanmar B14, Yanmar B15, Yanmar B15-3, Yanmar B15V, Yanmar B17, Yanmar B17-2, Yanmar SV15, Yanmar YB121, Yanmar YB151, Nissan N120, Nissan N120-2, Nissan N150-2, A620-670, A620670, EB124, EB144, EB164, N1202, N1502, B10, B12, B123, B14, B15, B153, B17, B172, SIRIUS, 320, 322, X220, X320, X322, X322C, X322D, X323, E14, EC14, EC15, EC15B, EC17, EC18, EC18C, SV15, YB121, YB151.
Product Specifications
| L&S Part No. | 200 263 |
|---|---|
| Unit of Sale | 1 |
| Size | Pin Diameter - 30mm x Pin Length - 170mm |
| Applications | 320, 322, A620-670, A620670, B10, B12, B12-3, B123, B14, B15, B15-3, B15.3, B153, B15V, B17, B17-2, B172, BobCat E14, BobCat X320, BobCatE14, BobCatX320, Bobcat X220, Bobcat X322, Bobcat X322C, Bobcat X322D, Bobcat X323, BobcatX220, BobcatX322, BobcatX322C, BobcatX322D, BobcatX323, E14, EB124, EB144, EB164, EC14, EC15, EC15B, EC17, EC18, EC18C, N1202, N1502, Nissan N120, Nissan N120-2, Nissan N150-2, NissanN120, Pel Job EB12, Pel Job EB12.4, Pel Job EB14.4, Pel Job EB16.4, Pel Job Sirius, PelJob EB10, PelJobEB10, PelJobEB12, PelJobEB12.4, PelJobEB14.4, PelJobEB16.4, PelJobSirius, SIRIUS, SV15, X220, X320, X322, X322C, X322D, X323, YB121, YB151 |
| Machine Type | Excavators |
| Fits Brands | BobCat, Nissan, Pel Job, Volvo, Yanmar |
| Fits Models | EC14 | EC15 | EC15B | EC17 | EC18 | B10 | B12 | B12-3 | B14 | B15 | B15.3 | B15V | B17 | B17-2 | SV15 | 320 | 322 | X320 | X322 | X323 |
