Description
Overview:

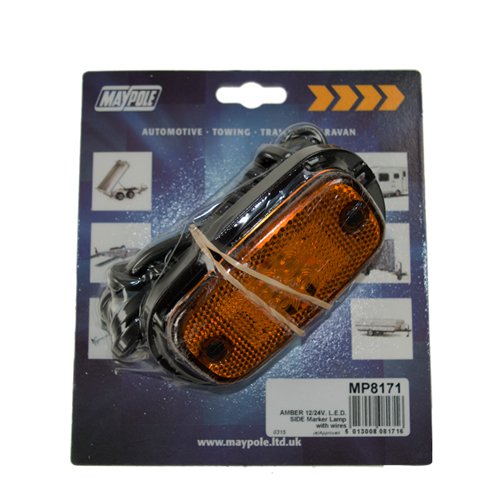

Amber LED side marker/position lamp for 12V and 24V systems, based on the Perei FM20 design. Low profile body with an integrated reflector and a sealed 1.8m flying lead for straightforward wiring. E‐mark approved and rated to IP67 for resistance to dust and water ingress. Can be mounted in either orientation to suit the installation. Supplied in retail display packaging. Compatible with the vertical mounting bracket MP8175B (bracket not included).
Specification:
- Operating voltage: 12/24V DC
- Light colour/function: Amber side marker/position
- Model: Perei FM20
- Approval: E‐mark approved
- Ingress protection: IP67
- Electrical connection: 1.8m cable (flying lead)
- Mounting: Hole mounted
- Orientation: Dual (horizontal or vertical)
- Profile: Low profile design
- Reflector: Integrated
- Packaging: Display packed
- Accessory: Vertical mounting bracket MP8175B (optional)
Typical Applications:
Used as a side position lamp on trailers, plant and machinery transporters, caravans and commercial vehicles running 12V or 24V electrics. Suitable for new builds and replacements where a compact, sealed marker with reflector is required.
Product Specifications
| L&S Part No. | 763 461 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
