Description
Overview:

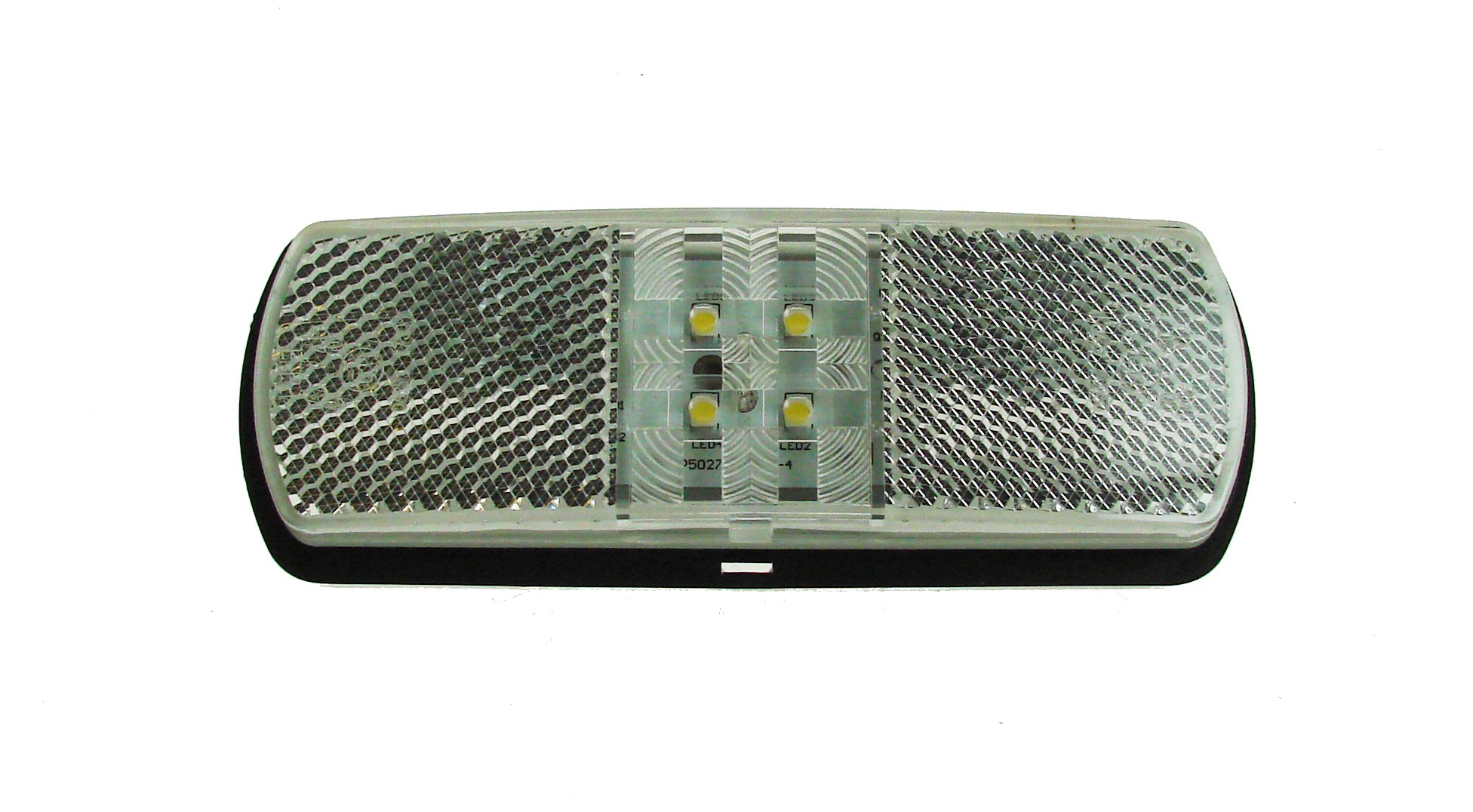

This LED front marker lamp, clear lens, 9-33V, horizontal, IP67, 30cm lead (MPN 763 512) is a compact road-legal front position light for commercial vehicles, trailers and plant transport. It operates across 12V and 24V systems, making it suitable for mixed fleets. The unit provides a white front marker function through a clear lens and includes an integrated reflector to help outline the vehicle. Built to an IP67 standard, the lamp is sealed against dust and water ingress for dependable service in harsh environments. A 300 mm (11.8 in) flying lead allows straightforward connection into existing looms. The lamp is designed for horizontal orientation and mounts to the body via fixing holes. It is commonly specified on HGVs, rigids, vans, trailers and specialist plant or recovery bodies, and can be paired with a horizontal pendant bracket where a hanging installation is preferred.
Key Features:
- 9-33V DC multi-voltage for 12V and 24V systems
- White front position marker with clear lens
- Horizontal orientation for correct E-compliance
- E-mark approved for road use
- IP67 ingress protection for dust-tight and water-resistant performance
- Integrated front reflector to aid vehicle outline visibility
- 300 mm (11.8 in) pre-wired flying lead for quick installation
- Surface-mount design using fixing holes
- Compatible with Maypole MP8164B horizontal mounting pendant bracket
- Common fitment on commercial vehicles and trailers
Typical Applications:
Front outline/position marker on trucks, rigids, vans, box and curtain trailers, plant and equipment trailers, low-loaders, recovery bodies and other commercial vehicle bodies. Suits horizontal mounting on vehicle corners or body edges; can be used with the MP8164B horizontal pendant bracket where a suspended/hanging installation is required. Cross-reference: Perei FM50 pattern.
Also known as:
Front position marker lamp
Front outline marker light
Perei FM50 front marker
Maypole part number MP8142B
Product Specifications
| L&S Part No. | 763 512 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
