Description
Overview:

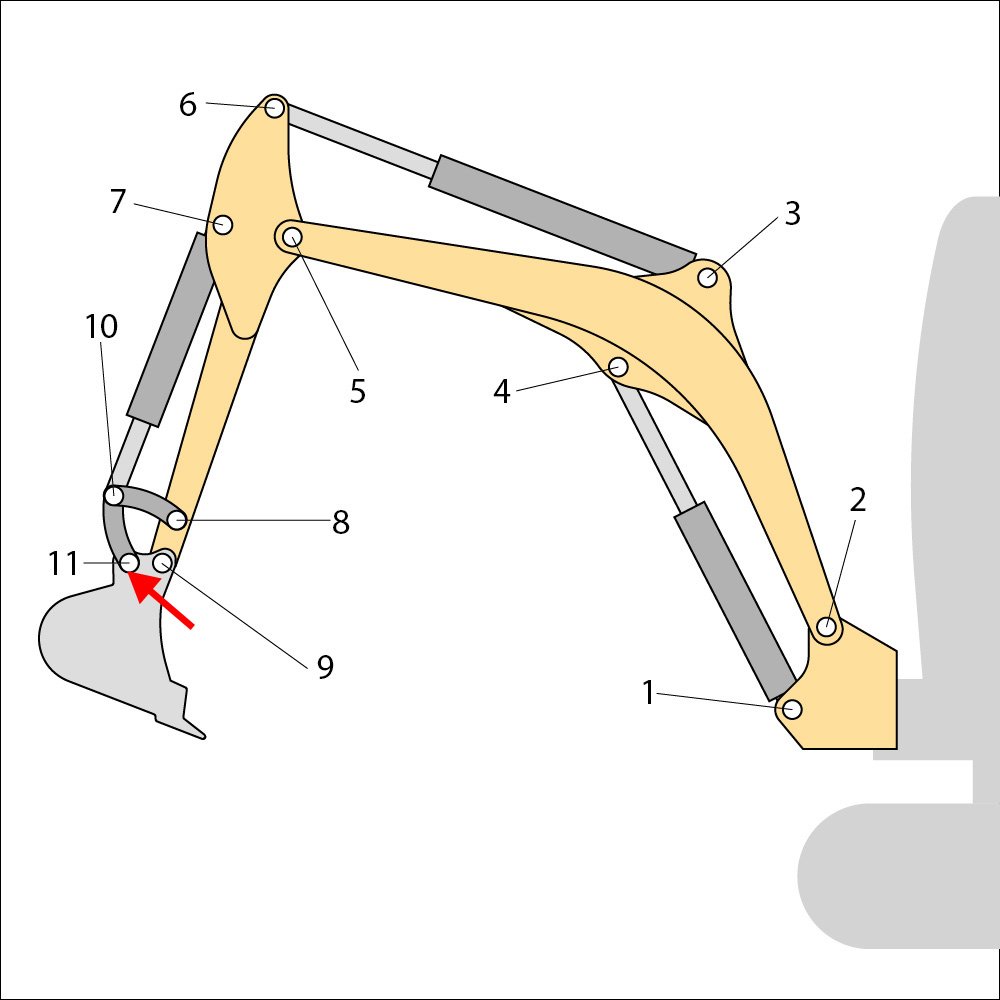

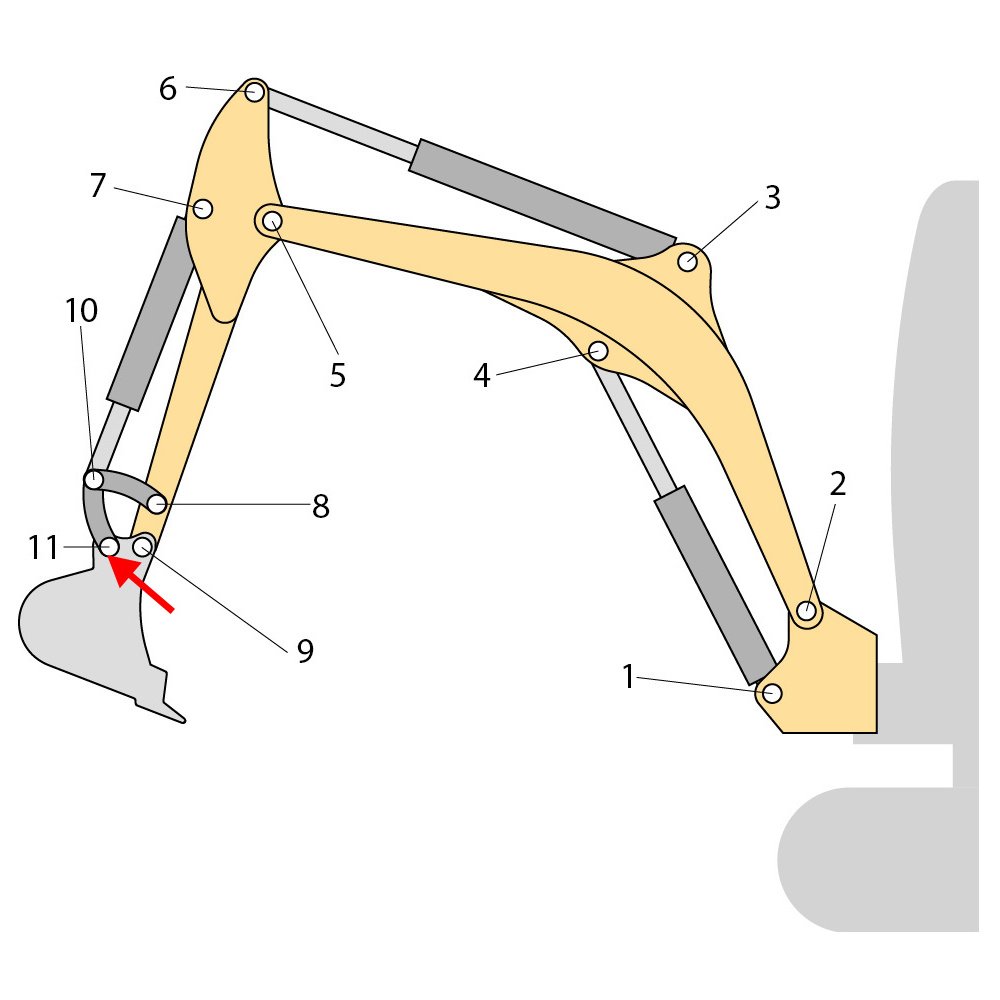

This Pin (Position 11) is a durable, non-genuine replacement part for JCB mini excavators, engineered to replace OEM reference 336/A7496. Made from high-strength steel and precision manufactured, it secures and allows smooth pivoting in the designated linkage point, helping to maintain correct alignment and reduce play in the assembly. Designed for the JCB 19C-1 and 19C-1 ECAB, it fits the specified position in the parts diagram with no modification. Suitable for routine maintenance or a full overhaul, it is a practical choice for workshops, site engineers, and DIY users who need reliable performance from compact excavators. Using a correctly sized pin helps protect bushes and mating components, supporting consistent operation and extending service life.
Key Features:
- Non Genuine Part: reliable alternative to OEM 336/A7496
- Precision-made steel pin for strength and long service life
- Sized to fit the designated Position 11 point on compatible JCB models
- Helps restore correct geometry and reduce unwanted play in the linkage
- Smooth bearing surface supports consistent movement and reduced wear on bushes
- Easy to fit with standard workshop tools, helping minimise downtime
- Suitable for planned maintenance or reactive repair work on site
- Cost-effective replacement that supports safe and predictable machine control
Typical Applications:
Used when refurbishing worn linkage points on JCB 19C-1 series mini excavators where Position 11 is specified in the parts diagram. Ideal during pin-and-bush replacement, end-of-life component swaps, or after detecting excess play. Helps maintain accurate movement in the relevant joint and supports consistent performance in daily digging, grading, and utility work.
Also known as:
Excavator pivot pin, linkage pin, hinge pin, Position 11 pin, replacement pin for JCB mini excavators, JCB 19C-series linkage pin.
Fits Models:
19C-1, 19C-1 ECAB, 19C-1 EP, 19C1, 19C1EP
Alternate Part Numbers:
336 A7496, 336/A7496, 336A7496
Product Specifications
| L&S Part No. | 202 1797 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 19C-1, 19C-1 ECAB, 19C-1 EP, 19C1, 19C1EP |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 19C-1 ECAB | 19C-1 | 19C-1 EP |
