Description
Overview:

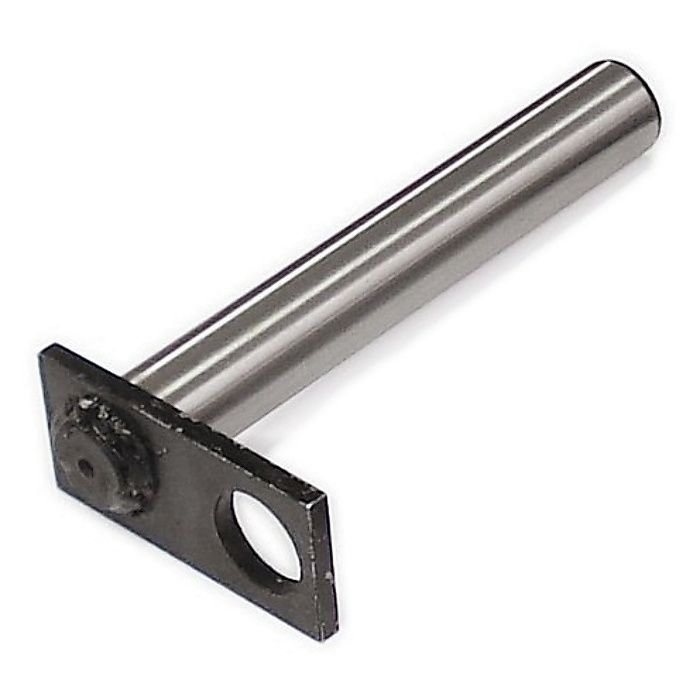

The Pin (Position 11) is a non-genuine replacement pivot pin for JCB mini excavators, engineered to replace OEM part number 232/01100. Made from high-strength steel for reliable wear resistance, it restores smooth movement and correct alignment at the relevant joint in the machine's linkage. Key dimensions are 35 mm (1.38 inches) diameter and 237 mm (9.33 inches) length, ensuring an accurate fit where Position 11 is specified on the JCB 802.7 and 8027. Suitable for routine maintenance and repairs, this pin helps reduce play at the joint, supporting consistent performance and helping to prevent premature wear of bushes and mating components. It is a practical choice for workshop overhauls or field servicing where straightforward, dependable parts are required.
Key Features:
- Non-genuine part engineered to replace OEM 232/01100 for JCB mini excavators
- Correctly sized: 35 mm (1.38 inches) diameter for a snug fit at the joint
- Overall length 237 mm (9.33 inches) to match the original specification
- High-strength steel construction for durability and resistance to wear
- Helps maintain smooth articulation and reduces excess play at the linkage
- Suitable for preventive maintenance and reactive repairs
- Straightforward installation with standard workshop tools, minimising downtime
- Compatible with JCB 802.7 and 8027 models where Position 11 applies
- A practical, cost-effective alternative to the OEM part for everyday use
Typical Applications:

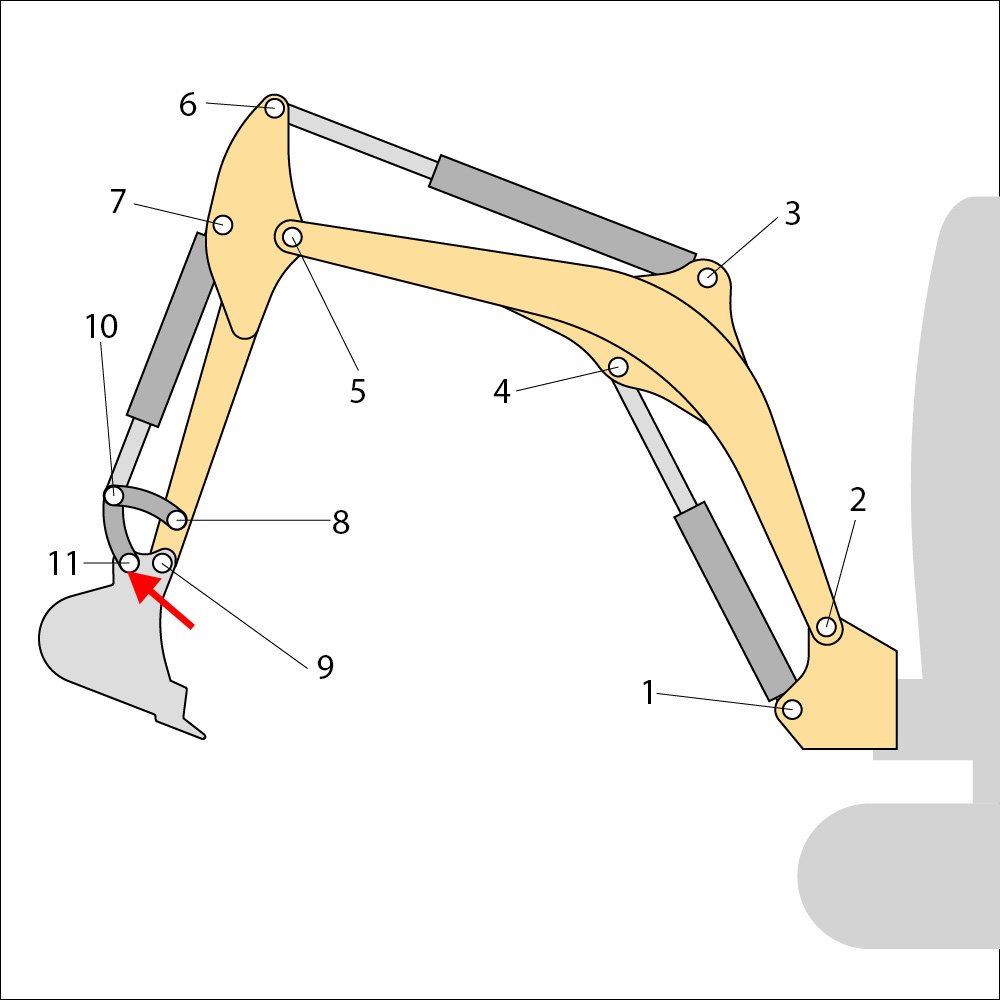

Used to renew worn joints identified as Position 11 on JCB 802.7 and 8027 mini excavators. Commonly fitted during linkage rebuilds, scheduled services, or when play is detected at the joint, to restore correct tolerances, protect bushes, and keep the working equipment operating smoothly in construction, landscaping, plant hire, and grounds maintenance.
Also known as:
Linkage pin, hinge pin, wear pin for JCB mini excavators, 232/01100 equivalent pin, Position 11 replacement component, JCB mini digger link pin, pattern pin for JCB 802 series.
Fits Models:
802.7, 8027
Product Specifications
| L&S Part No. | 202 1623 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 802.7, 8027 |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 802.7 |
