Description
Overview:

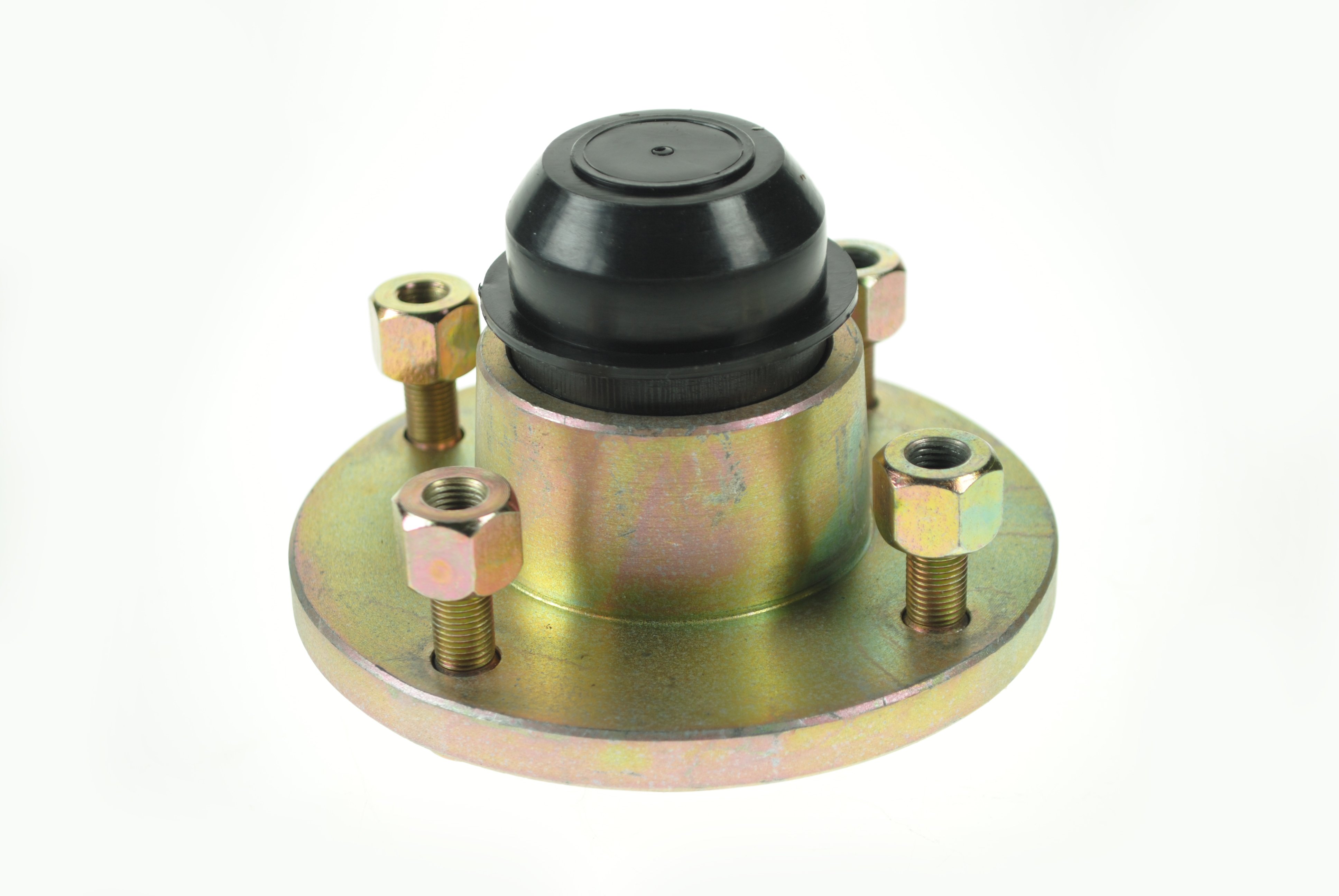

This trailer taper roller hub assembly (MPN 763 761) is a 4-stud hub designed for light trailer and plant transport applications using 1 inch (25.4 mm) stub axles. The hub is configured with 3/8 inch UNF studs on a 4 inch (101.6 mm) pitch circle diameter and is supplied complete with taper roller bearings, plastic hub cap, conical wheel nuts and a grease nipple. The bright zinc plated finish provides corrosion protection in typical on-road and yard environments. It matches common small trailer running gear where a 4 inch PCD is specified and supports routine servicing with readily available spares. Check stub axle size, wheel fixing and PCD before fitment. Hubs must be packed with grease before first use and inspected regularly.
Key Features:
- 4 x 3/8" UNF studs on 4" (101.6 mm) PCD
- Suitable for 1" (25.4 mm) stub axles
- Supplied with taper roller bearings, plastic hub cap, conical nuts and grease nipple
- Bright zinc plated finish for corrosion resistance
- Plastic cap and conical nuts as standard
- Maypole fitment: as fitted to MP206, MP208, MP211 and MP214; suitable for MP207, MP210 and MP212
- Service parts available: MP418CB cap, MP4187B conical nut, MP4186B spherical nut, MP4185B 3/8" stud
- Maintenance note: pack with grease before first use; inspect and re-grease at intervals
Typical Applications:
Used as a wheel hub on small domestic and light commercial trailers, plant and equipment trailers, and general towing set-ups where a 4" (101.6 mm) PCD and 3/8" UNF studs are specified. Direct replacement for the Maypole MP418 hub assembly, as fitted to MP206, MP208, MP211 and MP214, and suitable for fitting to MP207, MP210 and MP212, when used with 1" (25.4 mm) stub axles. Appropriate for suspension units and axles built to these dimensions and fixing details.
Also known as:
4-Stud Trailer Hub 4" PCD 3/8" UNF
1" Stub Axle Taper Roller Hub
Trailer Wheel Hub Assembly 4x3/8 UNF
Hub Kit with Plastic Cap and Conical Nuts
Maypole part number MP418
Product Specifications
| L&S Part No. | 763 761 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
