Description
Overview:

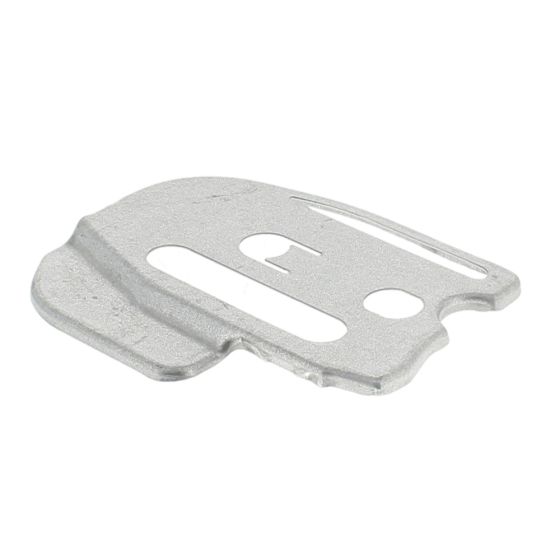

This Bar Mounting Plate is a genuine Husqvarna spare part designed for small petrol chainsaws, including the Husqvarna 235 and 236. Made from durable steel, it sits between the guide bar and the saw body to provide a firm, accurate mounting surface. The plate helps keep the bar correctly aligned on the bar studs, supports even clamping from the clutch cover, and reduces wear on the saw's mounting area. Built to OEM No. 545 07 14-01, it offers reliable compatibility with a range of Husqvarna homeowner and light-duty professional models. If your chainsaw's bar feels loose, alignment is inconsistent, or the original plate is worn or missing, this replacement restores correct setup for safe, efficient cutting.
Key Features:
- Genuine Husqvarna part for an exact fit and dependable performance
- Robust stamped steel construction for long service life and wear resistance
- Maintains precise guide bar alignment for accurate chain tracking
- Helps protect the crankcase/bar pad from abrasion and deformation
- Ensures even clamping pressure under the clutch cover to minimise bar movement
- Supports correct oil feed alignment for consistent chain lubrication
- Direct replacement manufactured to OEM No. 545 07 14-01
- Easy to fit with basic hand tools during routine maintenance
- Ideal for restoring performance when plates are bent, worn, or lost
- Suitable for regular bar changes in both DIY and trade use
Typical Applications:
Replacing a worn, bent, or missing bar plate to improve bar stability and chain tracking; routine servicing after frequent bar or chain changes; preventative maintenance to reduce wear on the saw body; restoring reliable cutting for tasks such as firewood processing, pruning, storm clean-up, landscaping, and light site work.
Also known as:
Guide bar plate, guide bar mounting plate, bar wear plate, clutch cover backing plate, bar spacer plate, chain bar backing plate, bar support plate.
Fits Models:
120 Mark II, 120E, 120E Mark II, 120MARKII, 230, 235, 235E, 236, 236E, 240, 240E
Alternate Part Numbers:
545 07 14-01, 545071401
Product Specifications
| L&S Part No. | 545 07 14 01 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 545071401 |
| Unit of Sale | 1 |
| Applications | 120 Mark II, 120E, 120E Mark II, 120MARKII, 230, 235, 235E, 236, 236E, 240, 240E |
| Machine Type | Chainsaws |
| Fits Brands | Husqvarna |
| Fits Models | 236 | 120 MARK II | 120E MARK II | 230 | 235 | 235E | 236E | 240 | 240E |
