Description
Overview:

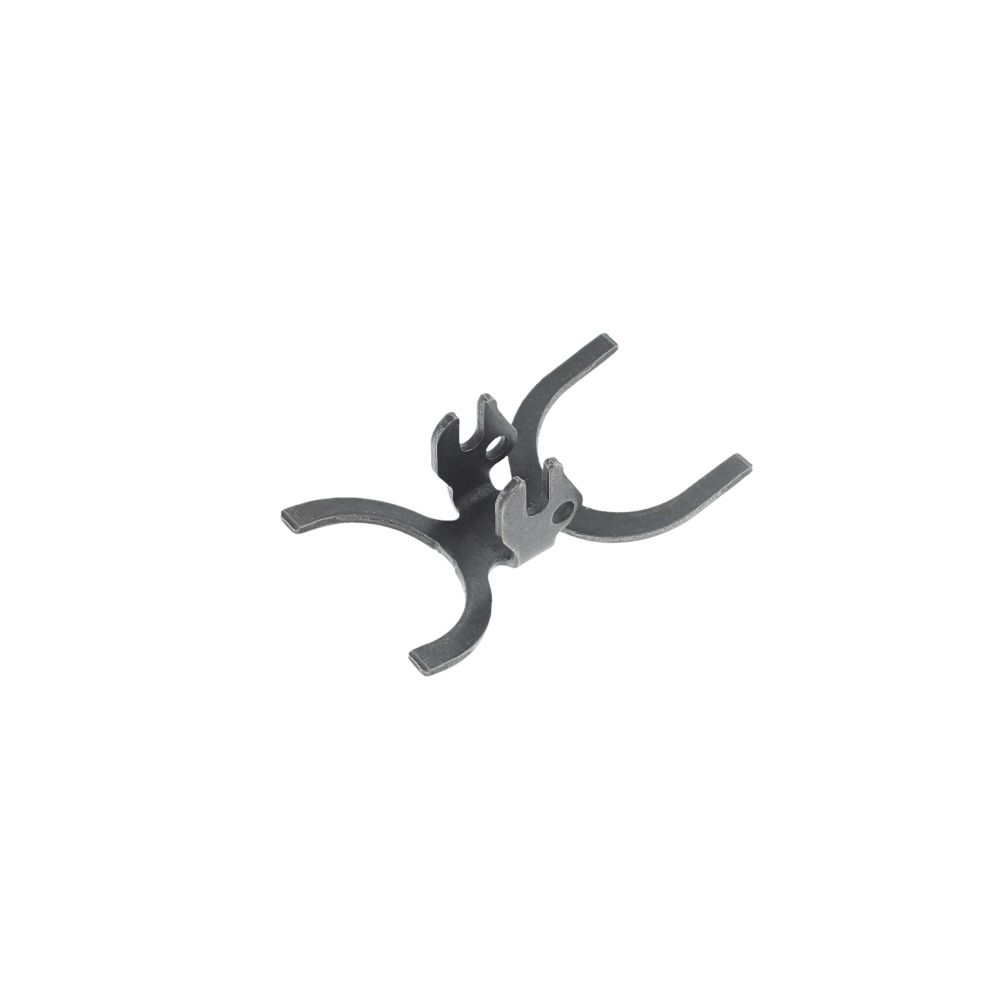

The Transmission Plate for DeWalt DCH253 Rotary Hammer is a genuine service component that sits within the tool's drive train to transfer motion smoothly through the gearbox. Made from robust metal for high impact and torsional loads, it helps maintain correct alignment of mating parts and supports consistent hammering performance under daily site use. This is a Genuine DeWalt part, supplied as a direct replacement for OEM No. 575022-00, and is engineered for an accurate fit in DeWalt rotary hammers, including the DCH253 and DCH254. Use it to restore reliability when the original plate shows wear, deformation or play. Built to original specification, it supports efficient operation, reduced downtime, and longer service life of your hammer drill.
Key Features:
- Genuine DeWalt replacement part (OEM 575022-00) for assured fit and function
- Durable metal construction to withstand repeated impact and torsional loads
- Precision-formed to maintain gear alignment and smooth transmission operation
- Direct swap with the original plate; no modification required
- Helps restore drilling performance and reduce noise or vibration from wear
- Reliable under dust, debris, and typical on-site conditions
- Compatible with the DCH253, DCH254, and other models listed below
- Suitable for routine servicing or full gearbox overhauls to minimise downtime
Typical Applications:
Used during maintenance or repair of DeWalt rotary hammers when the transmission shows wear, misalignment, or rough running. Common in workshop rebuilds, on-site repairs, and preventative servicing to keep tools operating efficiently for drilling and chiselling tasks in masonry, concrete, and construction materials.
Also known as:
Gearbox transmission plate, drive plate, gear carrier plate, drive transfer plate, hammer drill transmission plate, DeWalt gearbox plate.
Fits Models:
DC210K, DC212K, DC213, DC213KL, DC222K, DC223K, DC224K, DC228KL, DC229KL, DC232K, DC233K, DC234K, DCH213, DCH214, DCH243, DCH253, DCH254, DCH273, DCH274, DCH363, DCH364
Alternate Part Numbers:
575022-00
Product Specifications
| L&S Part No. | 575022-00 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | DeWalt/Black and Decker |
| OEM No. | 575022-00 |
| Unit of Sale | 1 |
| Applications | DC210K, DC212K, DC213, DC213KL, DC222K, DC223K, DC224K, DC228KL, DC229KL, DC232K, DC233K, DC234K, DCH213, DCH214, DCH243, DCH253, DCH254, DCH273, DCH274, DCH363, DCH364 |
| Machine Type | Rotary Hammer |
| Fits Brands | DeWalt |
| Fits Models | DC210K Type 1 | DC212K Type 1 | DC212K Type 2 | DC213 Type 1 | DC213 Type 2 | DC213KL Type 2 | DC222K Type 1 | DC222K Type 2 | DC223K Type 1 | DC224K Type 1 | DC224K Type 2 | DC228KL Type 1 | DC229KL Type 1 | DC232K Type 1 | DC232K Type 2 | DC233K Type 2 | DC233K Type 3 | DC234K Type 1 | DC234K Type 2 | DC234K Type 3 | DCH213 Type 1 | DCH214 Type 1 | DCH243 Type 1 | DCH253 | DCH253 Type 1 | DCH254 Type 1 | DCH273 | DCH273 Type 1 | DCH274 | DCH274 Type 1 | DCH363 | DCH363 Type 1 | DCH364 | DCH364 Type 1 |
