Description
Overview:

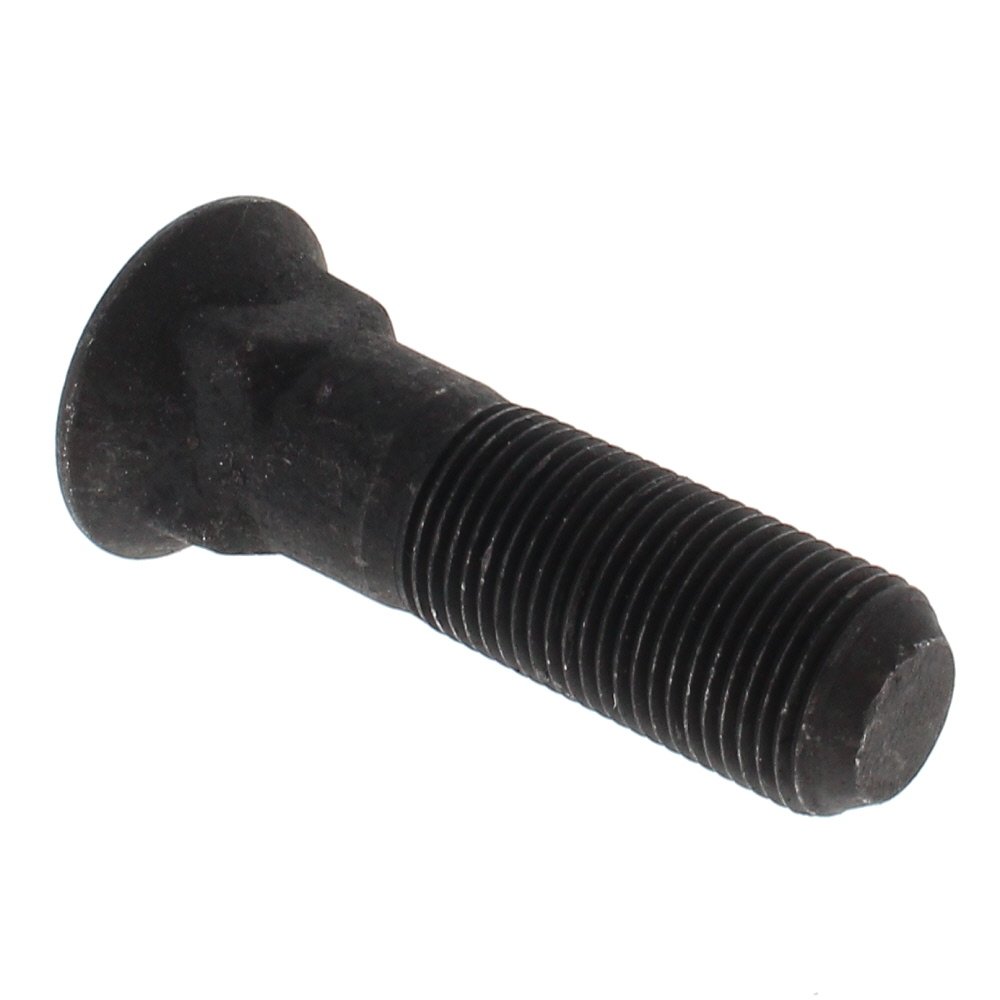

The Plough Bolt with Nut 3/4 UNF x 2 3/4" is a Non-Genuine replacement fastener for JCB machinery, designed to replace OEM 826/00303. Made from durable steel with a robust black finish, it is built for secure, long‐lasting clamping in high‐load applications. The countersunk head sits flush, while the square under‐head plate prevents rotation during tightening. Supplied with a matching UNF nut, it offers a complete fastening solution. Key dimensions: 3/4 UNF diameter (approx. 19.05 mm) and 2 3/4" length (approx. 69.9 mm). A 20 mm square plate under the head enhances stability in service. Suitable for a wide range of JCB equipment including 1CX and 3CX, it helps keep buckets, blades, and wear parts firmly in place.
Key Features:
- Non-Genuine replacement for JCB OEM 826/00303 for cost‐effective maintenance
- Size: 3/4 UNF (approx. 19.05 mm) x 2 3/4" (approx. 69.9 mm) for common JCB fitments

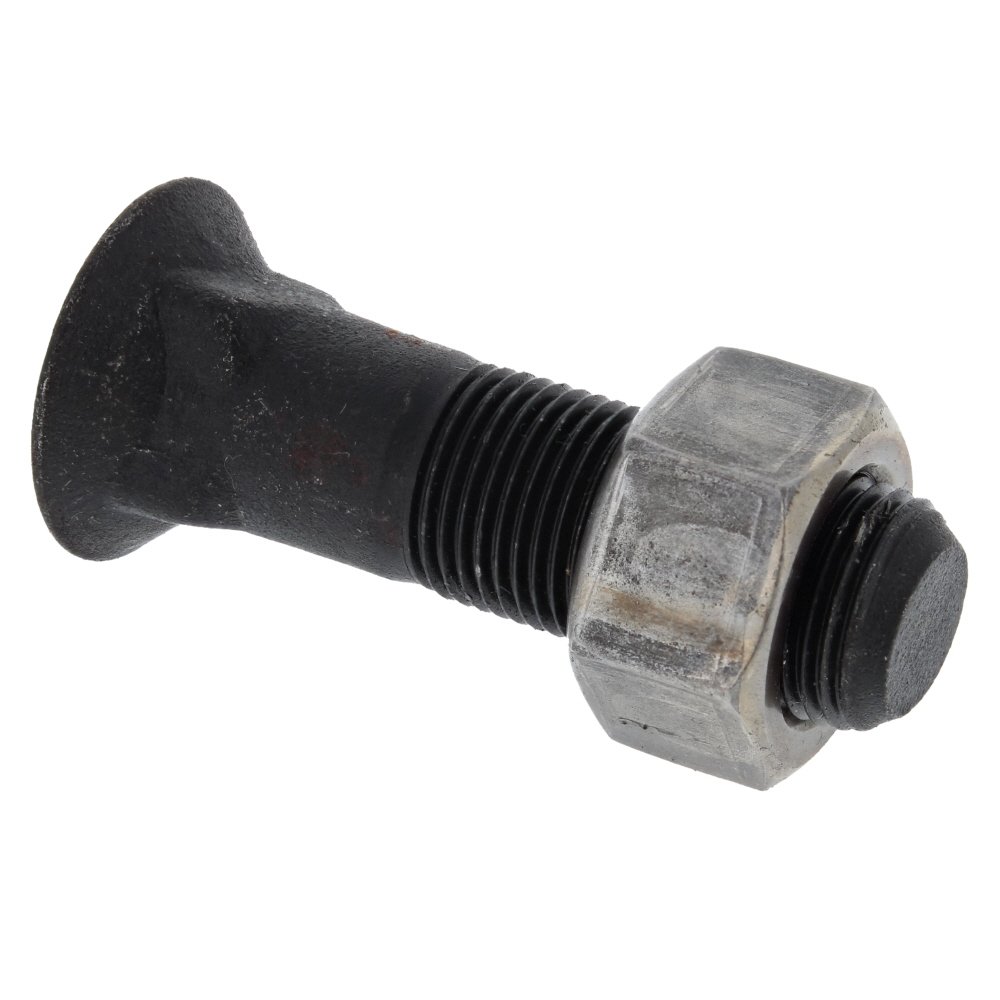

- Supplied with matching UNF nut for a ready‐to‐fit set
- Countersunk head provides a flush finish on cutting edges and wear parts
- 20 mm square plate under the head resists spin for easier tightening
- Steel construction for strength and consistent clamping under vibration
- Fine UNF thread aids secure torque and resists loosening in heavy use
- Straightforward replacement using standard spanners and torque procedures
- Suitable across loaders, excavators, telehandlers, and compact equipment
Typical Applications:
Commonly used to secure cutting edges, bucket blades, wear plates, and ground‐engaging components on JCB machines. Ideal for maintenance and repairs where a flush, high‐strength fastener is required to maintain safe operation and reduce downtime on site or in the yard.
Also known as:
Plow bolt, JCB bolt, tractor bolt, agricultural bolt, countersunk square‐neck bolt, cutting edge bolt, share bolt, earthmoving bolt.
Fits Models:
100C-1, 100C-2, 100C1, 100C2, 1105, 1105 Hi Flow, 1105HiFlow, 135E, 135I, 155E, 185, 185 HF, 185HF, 1CX, 1CX HI FLOW, 1CXHIFLOW, 210 T4, 210T4, 2CX, 2DX, 2DXL, 35Z-1, 35Z-1 G, 35Z-1G, 35Z1, 35Z1G, 36C-1, 36C1, 3CX, 3DX, 406, 407, 408, 409, 410, 415, 420, 423, 425, 428, 430, 48Z-1 T3, 48Z-1 T4, 48Z-1T3, 48Z-1T4, 48Z1T3, 48Z1T4, 4CX, 4DX, 509-23TC, 50923TC, 50Z-2, 50Z2, 510-40, 510-44S, 51040, 51044S, 51R-1 T3, 51R-1 T4, 51R-1T3, 51R-1T4, 51R-2, 51R1T3, 51R1T4, 51R2, 520, 520-40, 520-50, 52040, 52050, 530, 55Z-1 T3, 55Z-1 T4, 55Z-1T3, 55Z-1T4, 55Z1T3, 55Z1T4, 57C-1 T3, 57C-1 T4, 57C-1T3, 57C-1T4, 57C1T3, 57C1T4, 65R-1, 65R1, 67C-1, 67C1, 802, 802 Super, 802.4, 802.4 SUPER, 802.4SUPER, 802.7, 802.7 PLUS, 802.7 SUPER, 802.7PLUS, 802.7SUPER, 8024, 8025, 8025 CTS, 8025 ZTS, 8025 ZTS ORFS, 8025CTS, 8025ZTS, 8025ZTSORFS, 8026 CTS, 8026CTS, 8027, 8027Z, 8029 CTS, 8029CTS, 802Super, 803, 803 MAGNUM, 803 PLUS, 803 SUPER, 8030 ZTS, 8030 ZTS ORFS, 8030ZTS, 8030ZTSORFS, 8032Z, 8035 ZTS, 8035 ZTS ORFS, 8035ZTS, 8035ZTSORFS, 803MAGNUM, 803PLUS, 803SUPER, 804, 804 PLUS, 804 SUPER, 8040, 8040 ZTS, 8040ZTS, 8045, 8045 ZTS, 8045ZTS, 804PLUS, 804SUPER, 8050 RTS, 8050 ZTS, 8050RTS, 8050ZTS, 8052, 8055 ZTS, 8055RTS, 8055ZTS, 8056, 8060, 8065 DL, 8065 RTS, 8065DL, 8065RTS, 8080, 8085, 8085 ZTS, 8085ZTS, 85Z-1, 85Z-1 T2, 85Z-1T2, 85Z-2, 85Z-2 G, 85Z-2G, 85Z1, 85Z1T2, 85Z2, 85Z2G, 86C-1, 86C-1 T2, 86C-1 TAB, 86C-1T2, 86C-1TAB, 86C-2, 86C-2 G, 86C-2G, 86C1, 86C1T2, 86C1TAB, 86C2, 86C2G, 90Z-1, 90Z-2, 90Z1, 90Z2, 920, 921, 921-2WD, 9212WD, 930, 940, Mini CX 4WD, MiniCX4WD, TLT 2, TLT 25, TLT 3, TLT 30, TLT 35, TLT2, TLT25, TLT3, TLT30, TLT35, TM270, TM310, TM320
Alternate Part Numbers:
826/00303, 826-00303, 826 00303, 82600303
Product Specifications
| L&S Part No. | 020 953 |
|---|---|
| Manufacturer | JCB |
| OEM No. | 826/00303 |
| Unit of Sale | 1 |
| Applications | 100C-1, 100C-2, 100C1, 100C2, 1105, 1105 Hi Flow, 1105HiFlow, 135E, 135I, 155E, 185, 185 HF, 185HF, 1CX, 1CX HI FLOW, 1CXHIFLOW, 210 T4, 210T4, 2CX, 2DX, 2DXL, 35Z-1, 35Z-1 G, 35Z-1G, 35Z1, 35Z1G, 36C-1, 36C1, 3CX, 3DX, 406, 407, 408, 409, 410, 415, 420, 423, 425, 428, 430, 48Z-1 T3, 48Z-1 T4, 48Z-1T3, 48Z-1T4, 48Z1T3, 48Z1T4, 4CX, 4DX, 509-23TC, 50923TC, 50Z-2, 50Z2, 510-40, 510-44S, 51040, 51044S, 51R-1 T3, 51R-1 T4, 51R-1T3, 51R-1T4, 51R-2, 51R1T3, 51R1T4, 51R2, 520, 520-40, 520-50, 52040, 52050, 530, 55Z-1 T3, 55Z-1 T4, 55Z-1T3, 55Z-1T4, 55Z1T3, 55Z1T4, 57C-1 T3, 57C-1 T4, 57C-1T3, 57C-1T4, 57C1T3, 57C1T4, 65R-1, 65R1, 67C-1, 67C1, 802, 802 Super, 802.4, 802.4 SUPER, 802.4SUPER, 802.7, 802.7 PLUS, 802.7 SUPER, 802.7PLUS, 802.7SUPER, 8024, 8025, 8025 CTS, 8025 ZTS, 8025 ZTS ORFS, 8025CTS, 8025ZTS, 8025ZTSORFS, 8026 CTS, 8026CTS, 8027, 8027Z, 8029 CTS, 8029CTS, 802Super, 803, 803 MAGNUM, 803 PLUS, 803 SUPER, 8030 ZTS, 8030 ZTS ORFS, 8030ZTS, 8030ZTSORFS, 8032Z, 8035 ZTS, 8035 ZTS ORFS, 8035ZTS, 8035ZTSORFS, 803MAGNUM, 803PLUS, 803SUPER, 804, 804 PLUS, 804 SUPER, 8040, 8040 ZTS, 8040ZTS, 8045, 8045 ZTS, 8045ZTS, 804PLUS, 804SUPER, 8050 RTS, 8050 ZTS, 8050RTS, 8050ZTS, 8052, 8055 ZTS, 8055RTS, 8055ZTS, 8056, 8060, 8065 DL, 8065 RTS, 8065DL, 8065RTS, 8080, 8085, 8085 ZTS, 8085ZTS, 85Z-1, 85Z-1 T2, 85Z-1T2, 85Z-2, 85Z-2 G, 85Z-2G, 85Z1, 85Z1T2, 85Z2, 85Z2G, 86C-1, 86C-1 T2, 86C-1 TAB, 86C-1T2, 86C-1TAB, 86C-2, 86C-2 G, 86C-2G, 86C1, 86C1T2, 86C1TAB, 86C2, 86C2G, 90Z-1, 90Z-2, 90Z1, 90Z2, 920, 921, 921-2WD, 9212WD, 930, 940, Mini CX 4WD, MiniCX4WD, TLT 2, TLT 25, TLT 3, TLT 30, TLT 35, TLT2, TLT25, TLT3, TLT30, TLT35, TM270, TM310, TM320 |
| Fits Brands | JCB |
| Fits Models | 3CX | 802 | 802.4 | 803 | 804 | 8025 | 8040 | 8045 | 8060 | 8080 | 8085 | 36C-1 | 50Z-2 | 51R-2 | 55Z-1 T3 | 55Z-1 T4 | 65R-1 | 67C-1 | 85Z-2 | 86C-2 | 90Z-2 | 100C-2 | 802.7 | 8025 ZTS | 8025 CTS | 8027Z | 8029 CTS | 8030 ZTS | 8035 ZTS | 804 PLUS | 8040 ZTS | 8045 ZTS | 8050 RTS | 8050 ZTS | 8052 | 8055 ZTS | 8055RTS | 8056 | 8065 DL | 8065 RTS | 8085 ZTS | 48Z-1 T3 | 48Z-1 T4 | 51R-1 T3 | 51R-1 T4 | 85Z-1 T2 | 802 Super | 802.7 SUPER | 803 SUPER | 803 MAGNUM | 803 PLUS | 8030 ZTS ORFS | 804 SUPER | 35Z-1 G | 86C-2 G | 8025 ZTS ORFS | 85Z-2 G |
