Description
Overview:

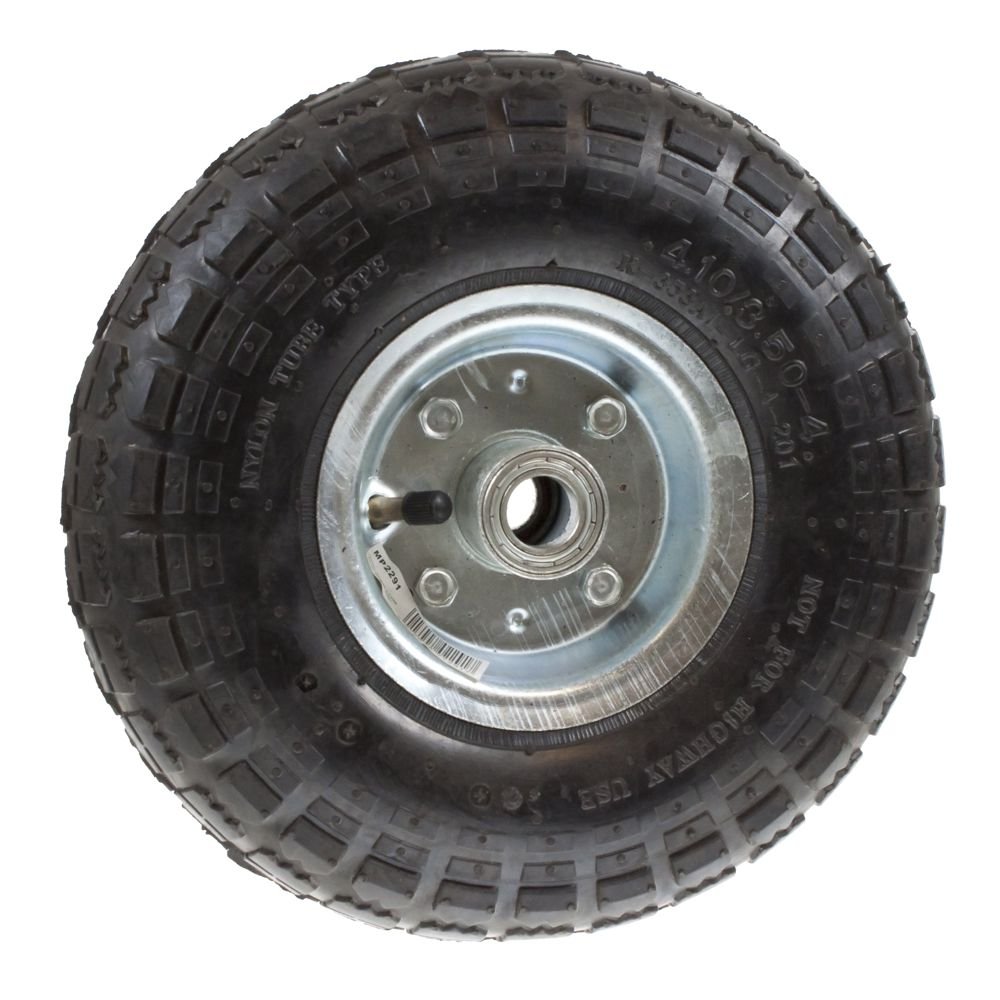

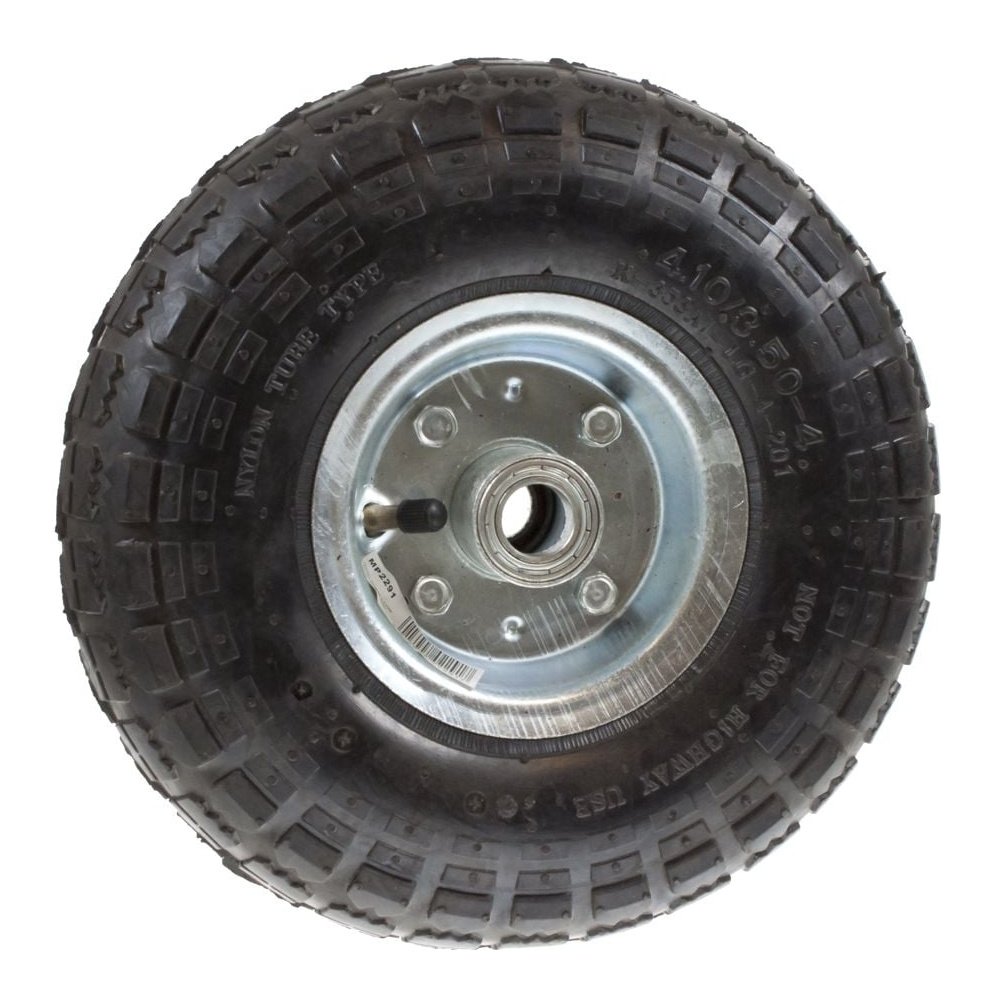

This jockey wheel spare (MPN TR2291) from Maypole is a replacement wheel and pneumatic tyre supplied on its own for a jockey wheel or jockey leg. Wheel diameter is 260mm (10.24in) with an 80mm (3.15in) tread, on a steel rim with a pneumatic rubber tyre for ground compliance. It runs on the standard 20mm jockey wheel spindle; the bore is quoted at 20.2mm (manufacturers may state 20-21mm for the same system). Supplied as a wheel only, without spindle, bolt or fixings; not a complete jockey wheel, with no tube, clamp or winding mechanism, and no separate nose-weight rating.
Specification:
- Wheel diameter: 260mm (10.24in)
- Tread width: 80mm (3.15in)
- Tyre: Pneumatic rubber
- Rim: Steel
- Bore diameter: 20.2mm (standard 20mm spindle system; 0.80in)
- Bore length: 70mm (2.76in)
- Maximum static load: 180kg (397lb)
Fits These Jockey Wheels:
- 763 816 - 48mm Jockey Wheel Pneumatic 180kg (MP4375)
Also known as:
- jockey wheel spare wheel
- nose wheel
- trailer jack wheel
- jockey leg wheel
- Maypole MP2291
Product Specifications
| L&S Part No. | TR2291 |
|---|---|
| Manufacturer | Maypole |
| OEM No. | MP2291 |
| Unit of Sale | 1 |
| Machine Type | Trailers |
| Key Features | - 260 mm diameter, 80 mm width for stable contact - 20.2 mm bore, 70 mm hub length fits standard axles - 150 kg maximum static load capacity - Pneumatic rubber tyre for shock absorption - Compatible with MP4375 and TR4375 models |
