Description
Overview:

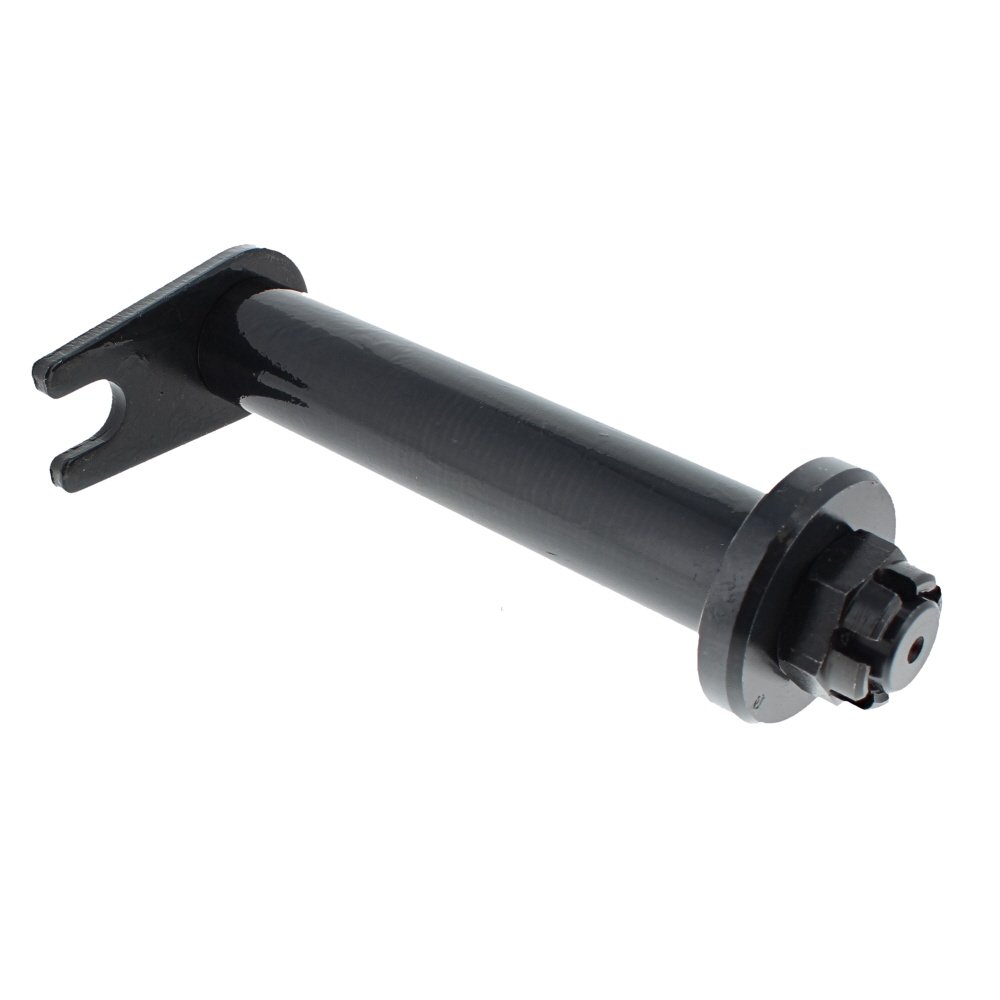

The Position 10 Link Pin is a heavy‐duty pivot pin for Takeuchi mini diggers/excavators, sized and specified for the TB125 and TB23R. Made from durable steel, it provides the rotating joint between linkage components at the dipper/bucket end, helping maintain accurate alignment and smooth movement under load. Precision machining supports consistent fit and helps reduce play when used with good condition bushes. The pin measures 200 mm in length (approximately 7.87 inches) with a diameter of 35 mm (approximately 1.38 inches). Identified by MPN 202 527, it is intended as a direct service replacement in the position indicated as "10" on relevant parts diagrams. Suitable for routine maintenance or urgent repair, it keeps your machine working reliably on site or in the yard.
Key Features:
- Direct-fit replacement for specified positions on Takeuchi TB125 and TB23R
- Precision dimensions: 200 mm length (approx. 7.87 inches), 35 mm diameter (approx. 1.38 inches)
- Durable steel construction to handle high shock and torsional loads
- Smooth, machined finish for easier insertion and consistent articulation
- Accurate tolerances to help maintain tight linkage and reduce unwanted play
- Cross-drilled hole for retaining hardware to secure the pin in service
- Supports efficient maintenance with straightforward removal and installation using standard tools
- Helps protect compatible bushes by providing a true running surface
- Suitable for daily site use in demanding conditions
- Replaces MPN 202 527 for easy identification and ordering
Typical Applications:
Used at the dipper/bucket linkage on mini excavators to restore a worn or damaged pivot point. Ideal for replacing a loose, scored, or bent pin during pin-and-bush maintenance, quick repairs between jobs, or scheduled overhauls to keep breakout force, accuracy, and control within expected limits.
Also known as:
Excavator link pin, digger pivot pin, bucket linkage pin, linkage pivot pin, digging machine pin, bucket link pivot.
Fits Models:
TB125, TB23R
