Description
Overview:

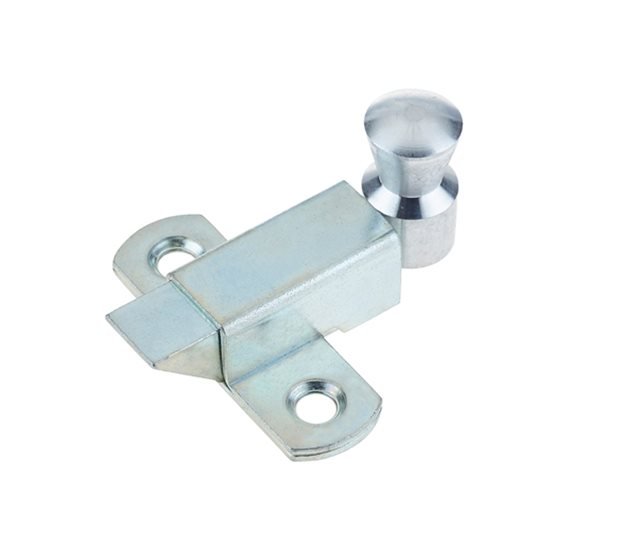

This pressed steel end slam bolt, 56 x 50 mm, nose up (MPN 800 1029) is a compact latch bolt designed for securing lightweight doors, lids and access panels on commercial vehicles and equipment. Manufactured from mild steel with a pressed body, it is zinc plated and clear passivated for surface protection in transport and site environments. The "nose up" bolt orientation suits installations where the bevel needs to face upward to aid closing. Typical uses include locker doors, toolboxes, storage boxes and service panels on trucks, trailers, buses, gensets and horseboxes, as well as cab and bodywork compartments. The unit provides a simple push‐to‐close action and is prepared with countersunk fixing holes for straightforward fitting to steel, aluminium or timber doors and frames as part of an end slam latch arrangement from the Pinet range.
Key Features:
- Material: Mild steel, pressed construction
- Finish: Zinc plated, clear passivated for corrosion protection
- Overall length: 56 mm (2.20 in)
- Overall width: 50 mm (1.97 in)
- Body thickness: 28 mm (1.10 in)
- Tongue projection: 12 mm (0.47 in)
- Bolt style: Nose up for upward bevel orientation
- Fixing: Ø4 mm (0.16 in) countersunk holes for flush screws
- Brand: Pinet
- Suitable for end slam latch installations on vehicle bodies and enclosures
Typical Applications:
Used on trucks and trailers for body access doors and lockers, on buses for service panels, on gensets for enclosure doors, and on horseboxes, cabs, toolboxes and storage boxes where a compact end slam bolt is required to secure panels and lids with a simple push‐to‐close action.
Also known as:
End slam latch bolt
Slam latch bolt, nose up
Spring bolt for lockers
End bolt latch
Panel slam bolt
Product Specifications
| L&S Part No. | 800 1029 |
|---|---|
| Unit of Sale | 1 |
