Description
Overview:

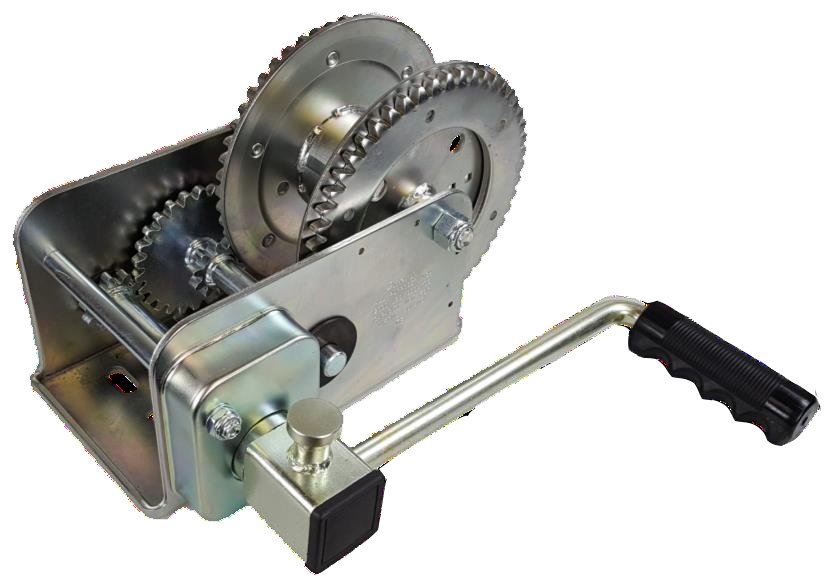

The Safety Hand Winch With Brake, 1100 kg (2500 lb) (MPN 764 133) is a heavy-duty manual winch designed for controlled pulling and lifting on trailers and transport equipment. Built with a robust steel body and corrosion-resistant plating tested to 500 hours red-rust, it performs well outdoors and in marine environments. An integral clutch brake automatically holds the load on the drum, and the handle design prevents free‐spinning for safer use. The unit is single speed with dual drive gears, providing a 13.3:1 gear ratio and a mechanical advantage of 104.8:1. The drum takes up to 25 m of 6 mm wire rope (approximately 82 ft of 1/4 in). It carries CE and UKCA approvals, with a CE rated working capacity of 625 kg (1,378 lb) and a manufacturer's recommended maximum capacity of 1100 kg (2500 lb).
Key Features:
- Heavy-duty steel hand winch for pulling and lifting applications
- Integral clutch brake holds the load; handle cannot free‐spin
- Single speed, dual drive gear design; gear ratio 13.3:1
- Mechanical advantage 104.8:1; typical operating force 9.54 kgf (approx. 21 lbf)
- CE rated working capacity: 625 kg (1,378 lb)
- Manufacturer's recommended maximum capacity: 1100 kg (2500 lb)
- Maximum rolling load: 1,631 kg (3,596 lb) on a 30% gradient (good surface)
- Drum capacity: up to 25 m x 6 mm wire rope (approx. 82 ft x 1/4 in)
- Corrosion-resistant plating tested to 500 hours red‐rust; suitable for marine use
- Removable quick‐release handle and solid gear construction
- CE and UKCA approved
- Compatible accessories and spares: MP1450 6 mm steel cable; MP1441 spare handle
Typical Applications:
Used on boat trailers, car transporters and recovery vehicles for controlled loading and positioning, and for workshop or site tasks requiring manual pulling or light lifting within the stated capacities. Suitable for mounting to trailer winch posts, A‐frames, recovery beds and fixed points. Example performance: on a 30% gradient with a good surface, the maximum rolling load is 1,631 kg (derived from a 900 kg line pull x 2.6). Use with a 6 mm steel wire rope up to 25 m to match the drum capacity; accessory and spare part options include MP1450 cable and MP1441 handle.
Also known as:
- Braked hand winch
- Self-braking manual winch
- Trailer/boat winch 1100 kg
- Maypole part number MP14425
Product Specifications
| L&S Part No. | 764 133 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
