Description
Overview:

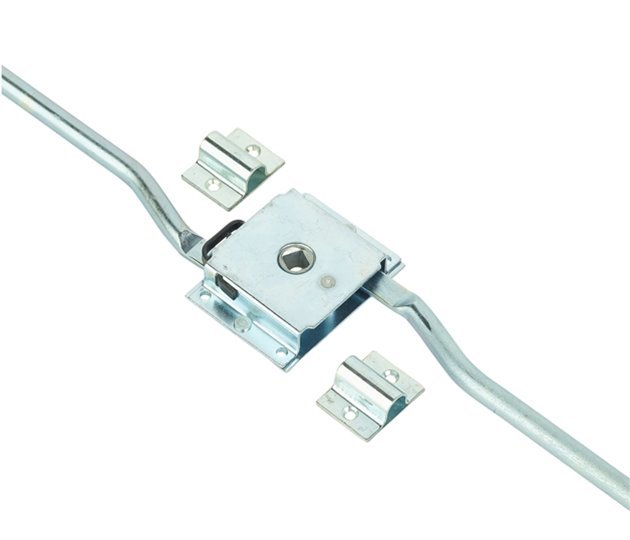

This 2-Point Rod Lock, Right Hand (MPN 800 1288) is a zinc plated mild steel locking assembly designed to secure doors and access panels on commercial vehicles and equipment. The unit provides two-point engagement to help hold taller doors shut along their height, and features a spring-loaded action for positive operation. It is supplied complete with an 8 mm (5/16 in) square drive to suit matching handles or actuators, and includes two rod guides to support the linkage during operation. The assembly length is 2210 mm (87.0 in), with a 25 mm (0.98 in) throw for reliable latch movement. Linkage rods are Ø9.5 mm (3/8 in) and typical fixing holes are Ø4 mm (5/32 in). The bright zinc plated finish offers corrosion resistance for service on truck bodies, trailers, buses, gensets, horseboxes, cabs, roller shutters and equipment compartments.
Key Features:
- Mild steel construction for robust service
- Zinc plated finish for corrosion resistance
- Right-hand configuration for matching door layout
- Length: 2210 mm (87.0 in)
- Throw: 25 mm (0.98 in)
- Linkage rods: Ø9.5 mm (3/8 in)
- Square drive: 8 mm (5/16 in)
- Fixing holes: Ø4 mm (5/32 in)
- Spring-loaded action for positive engagement
- Supplied complete with two rod guides
- Two-point locking for tall or wide doors
Typical Applications:
Used on truck and trailer body doors, bus compartments, generator set enclosures, horsebox doors, cab lockers and roller shutter panels. Suitable for securing side or rear access doors and equipment compartments where a two-point rod locking system is required in a right-hand arrangement.
Also known as:
2-point rod latch; Door rod lock; Bar lock assembly; Two-point lock rod; Right-hand rod lock; Square drive rod lock
Product Specifications
| L&S Part No. | 800 1288 |
|---|---|
| Unit of Sale | 1 |
