Description
Overview:

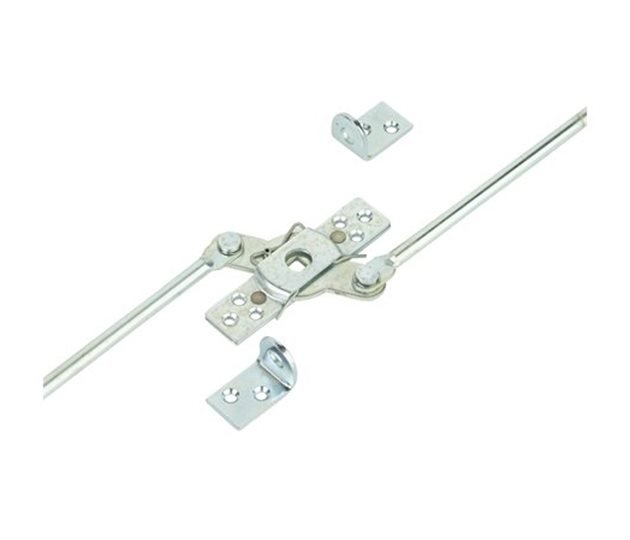

This is a right hand 2-point rod lock assembly (MPN 800 1067) for commercial vehicle and equipment body doors where secure two-point engagement is required. The unit is manufactured from mild steel with a zinc plated finish for corrosion protection in fleet and site environments. It features a spring-loaded action for positive locking, an 8 mm square drive to suit standard handles, and is supplied with two rod guides to support the linkage. The assembly length is 2310 mm to suit taller doors and shutters, with a 35 mm throw for reliable latch travel. It accepts Ø9.5 mm linkage rods and mounts using Ø5 mm countersunk fixings. A matching keeper (0770/001) is required. Typical uses include side lockers, service compartments and roller shutters on trucks, trailers, buses, gensets, horseboxes and plant bodywork.
Key Features:
- Right hand operation (Type B) with spring-loaded 2-point locking action
- Overall length 2310 mm for tall doors and shutters
- 8 mm square drive for common body hardware
- Accepts Ø9.5 mm linkage rods
- Throw: 35 mm for positive latch engagement
- Mild steel construction for strength and durability
- Zinc plated finish for corrosion resistance
- Supplied with two rod guides for smooth rod travel
- Ø5 mm countersunk fixing holes for flush mounting
- Keeper 0770/001 required (sold separately)
Typical Applications:
Used on commercial vehicle and plant bodywork for securing side doors, lockers and roller shutters. Suitable for trucks, trailers, buses, generator enclosures, horseboxes, cabs and equipment compartments where a robust right hand, two-point locking system is needed.
Also known as:
2 point door lock, rod locking assembly, multi-point door lock, Type B rod lock, RH rod lock, square drive rod latch
Product Specifications
| L&S Part No. | 800 1067 |
|---|---|
| Unit of Sale | 1 |
