Description
Overview:

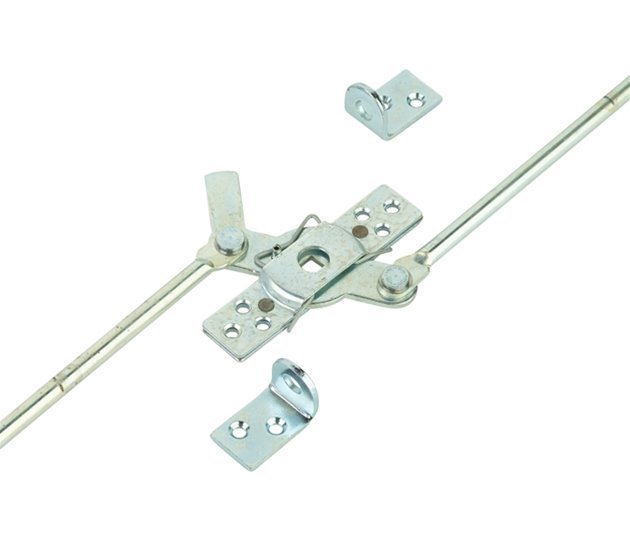

3-Point Rod Lock, Right Hand, 2310 mm, Zinc Plated Steel, Type B (MPN 800 1064) is a right-hand, spring-loaded three-point locking assembly for commercial vehicle and equipment doors. Manufactured from mild steel with a zinc plated finish, it delivers robust service in fleet and bodywork environments. The assembly provides positive three-point engagement via linkage rods to secure the door at the top, bottom and side. It is supplied with a tongue, 8 mm square drive, and two rod guides to support and align the operating rods. Overall length is 2,310 mm and the lock throw is 35 mm. Fixing is via countersunk holes for clean installation. This B-type unit requires a compatible keeper (0770/011) and is suited to trucks, trailers, buses, gensets, horseboxes, cabs, roller shutters and service compartments.
Key Features:
- Material: Mild steel construction for durability
- Finish: Zinc plated for corrosion protection
- Handing: Right hand (RH) operation
- Length: 2,310 mm (90.9 in) overall
- Throw: 35 mm (1.38 in) for positive engagement
- Linkage rods: Ø9.5 mm (3/8 in) compatible
- Drive: 8 mm square (5/16 in) for standard handles/actuators
- Fixing: Ø5 mm countersunk holes (3/16 in) for flush fitment
- Action: Spring-loaded mechanism for reliable latching
- Supplied with tongue and 2 rod guides; keeper 0770/011 required
- Type: B-type three-point rod lock assembly
Typical Applications:
Used on commercial truck and trailer body doors, service lockers and compartments, bus luggage bays, generator set enclosures, horsebox tack and storage doors, cab lockers and roller shutter housings where a right-hand, three-point locking action is needed for secure closure and alignment.
Also known as:
3-way rod lock; three-point door lock; B-type rod latch; multi-point rod lock; bar lock assembly
Product Specifications
| L&S Part No. | 800 1064 |
|---|---|
| Unit of Sale | 1 |
