Description
Overview:

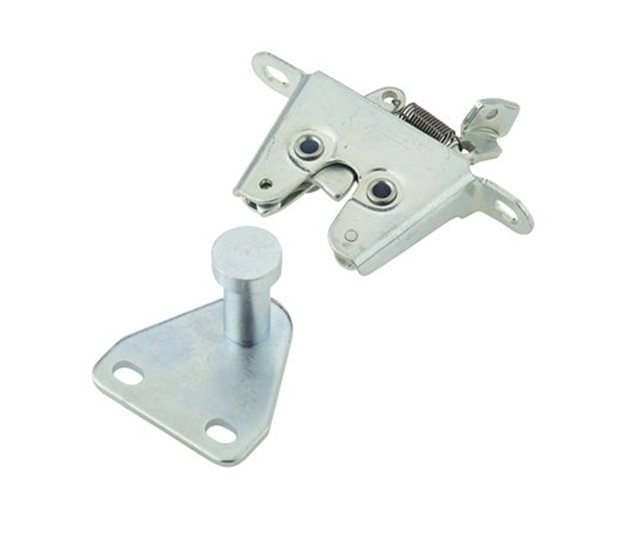

The Anti-Burst Single Rotor Latch, Top Flange, Right Hand, Zinc Plated (MPN 800 1114) is a pressed mild steel latch used on commercial vehicle and equipment doors. It features a right-hand single rotor mechanism for secure closure and a top flange mounting for straightforward installation to the door or panel. The body is zinc plated for corrosion resistance and supplied with a black PVC cover to protect the mechanism. Overall dimensions are 100.5 mm (3.96 in) length, 47 mm (1.85 in) width and 20 mm (0.79 in) body thickness. Fixing is via 7 x 9 mm (0.28 x 0.35 in) slots. Typical uses include truck and trailer body doors, service hatches, generator set canopies, horseboxes, buses and cab access panels. For correct engagement, use with the 0931/005 series striker pin (not included). Suitable for fleet maintenance and new build applications.
Key Features:
- Right-hand single rotor anti-burst latch mechanism
- Top flange mounting for door or panel fitment
- Pressed mild steel construction for durability
- Zinc plated finish for corrosion resistance
- Supplied with black PVC protective cover
- Overall length: 100.5 mm (3.96 in)
- Width: 47 mm (1.85 in)
- Body thickness: 20 mm (0.79 in)
- Fixing slots: 7 x 9 mm (0.28 x 0.35 in)
- Compatible with 0931/005 series striker pin
Typical Applications:
Used on trucks, trailers, buses and vehicle cabs, as well as plant and equipment enclosures such as genset canopies and horseboxes. Commonly fitted to body doors, access hatches and service panels where a compact, anti-burst latch is required.
Also known as:
Anti-burst door latch, rotor latch, claw latch, single-rotor door latch, vehicle body latch
Product Specifications
| L&S Part No. | 800 1114 |
|---|---|
| Unit of Sale | 1 |
