Description
Overview:

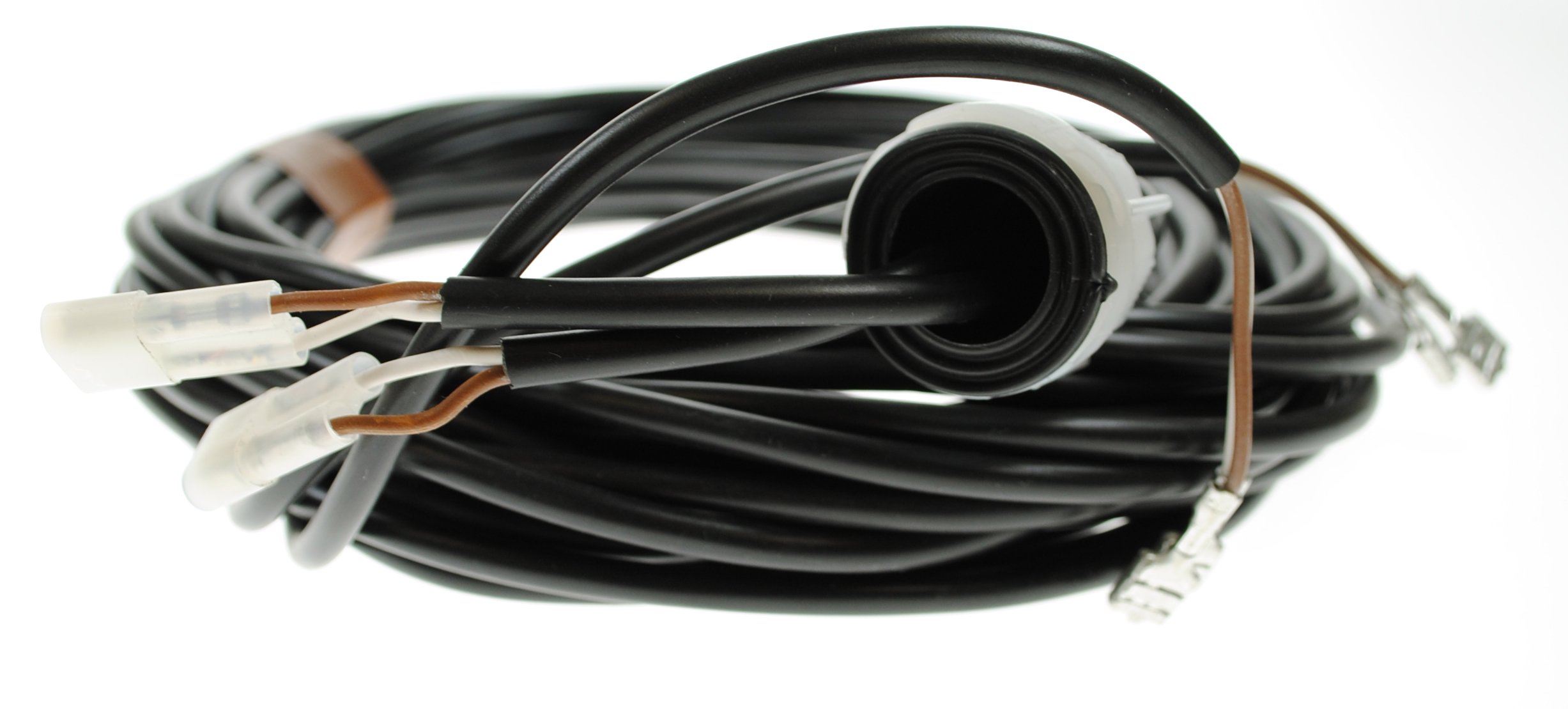

The Radex Quick-Fit 4-Pin Power Outlet Harness (MPN 763 591) is a trailer lighting loom designed to take a power feed from a Radex rear combination lamp and supply up to two side marker lamps. It uses Radex's white quick-fit outlet connector and is supplied with two twin-core leads, each 6 m (approx. 19 ft 8 in) in length, to reach along the nearside and offside of the trailer or body. Intended for marker lights that use spade terminal connections, this harness provides a clean, modular way to add or replace side marker wiring without cutting into the main loom. The assembly is E-mark approved and built by Maypole using genuine Radex components, ensuring compatibility with Radex quick-fit rear lamp systems. Suitable for use on trailers, plant and equipment transporters, commercial vans with lighting boards, and other towed applications where side marker lighting needs to be powered from a rear combination lamp with a quick-fit outlet.
Key Features:
- 4-pin quick-fit outlet harness for Radex rear combination lamps (5+4 or 6+4 formats)
- Feeds up to two side marker lamps from a single rear lamp power outlet
- Supplied with 2 x 6 m twin-core cables (approx. 19 ft 8 in each) for left and right sides
- White Radex quick-fit plug for fast, tool-free connection at the rear lamp
- For marker lamps with spade terminal connections
- E-mark approved lighting harness components
- Assembled by Maypole using genuine Radex components for system compatibility
- Modular design reduces splicing and simplifies trailer wiring maintenance
Typical Applications:
Used to extend marker light power from Radex rear combination lamps on general-purpose trailers, plant and machinery transporters, car transporters, boat trailers, box trailers, tippers and commercial lighting boards. Suits Radex quick-fit rear lamps that provide a 4-pin power outlet in 5+4 or 6+4 configurations and marker lamps equipped with spade terminals.
Also known as:
Radex Quick-Fit Marker Lamp Harness; Radex 4-Pin Power Outlet Lead; Trailer Side Marker Wiring Loom; Maypole part number MP80406
Product Specifications
| L&S Part No. | 763 591 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - 4-pin quick-fit outlet harness for Radex rear lamps - Feeds up to two side marker lamps - Includes 2 x 6 m twin-core cables - White Radex quick-fit plug for tool-free connection - E-mark approved for compliance and safety |
