Description
Overview:

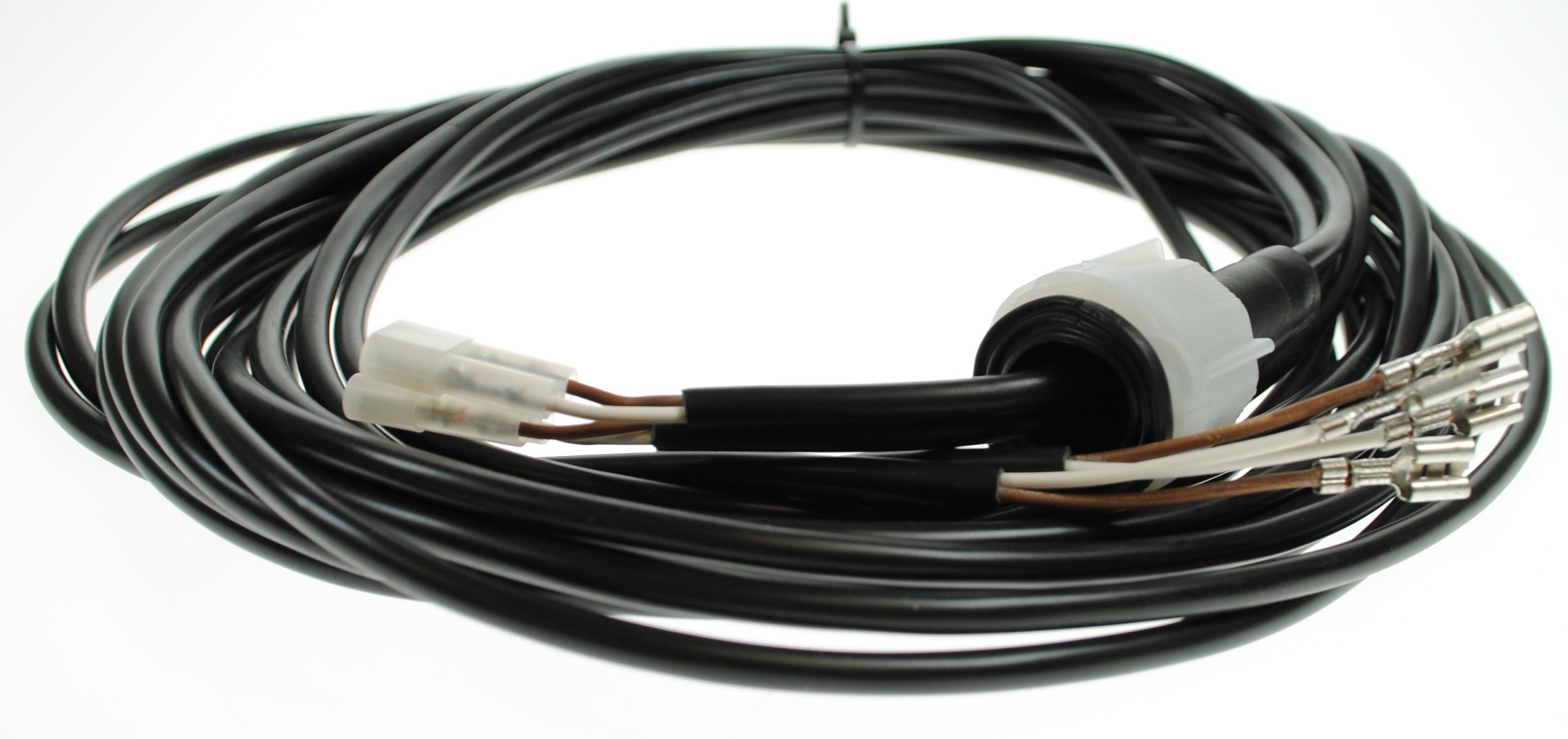

This Radex Quick-Fit 4-Pin Marker Lamp Harness (MPN 763 574) is a plug-in loom designed to take power from a Radex rear combination lamp and feed up to two front/side marker lamps. It connects to the lamp's power outlet using a Radex quick-fit interface and provides two separate runs of twin cable for marker lights with spade terminals. Supplied as two 4 m (approx. 13 ft 1 in) leads, it gives enough length for most small to medium trailers and plant transporters. The harness uses a white quick-fit plug to simplify installation and reduce wiring time on builds or repairs. Manufactured by Maypole from genuine Radex components and E approved, it offers a consistent, repeatable connection for fleets and workshops standardising on Radex 5+4 or 6+4 rear lamps across trailer, towing and light commercial applications.
Key Features:
- 4-pin Radex quick-fit power outlet connection for 5+4 and 6+4 rear lamps
- Feeds up to two marker lamps from a single rear combination lamp
- Supplied with 2 x 4 m twin cable (approx. 13 ft 1 in per run)
- Quick-fit white plug for fast, tidy installation
- Suits marker lamps with spade terminal connections
- E approved for road use
- Built by Maypole using genuine Radex components
- Reduces splicing and junctions versus conventional wiring looms
Typical Applications:
Used on trailers, plant and equipment carriers, horseboxes, boat and general-duty trailers where marker lamps need to be powered from the rear combination lamp. Fits Radex rear combination lamps equipped with 5+4 or 6+4 quick-fit power outlet connectors, allowing two marker lamps to be added or replaced without hardwiring.
Also known as:
- Radex Quick-Fit Marker Lamp Loom
- 4-Pin Marker Light Splitter Harness
- Radex 5+4/6+4 Power Outlet Harness
- Marker Lamp Extension Loom
- Maypole part number MP80404
Product Specifications
| L&S Part No. | 763 574 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - 4-pin Radex quick-fit connection for 5+4 and 6+4 rear lamps - Feeds up to two marker lamps from one rear lamp - Includes 2 x 4 m twin cable for extended reach - Quick-fit white plug simplifies installation - Compatible with spade terminal marker lamps |
