Description
Overview:

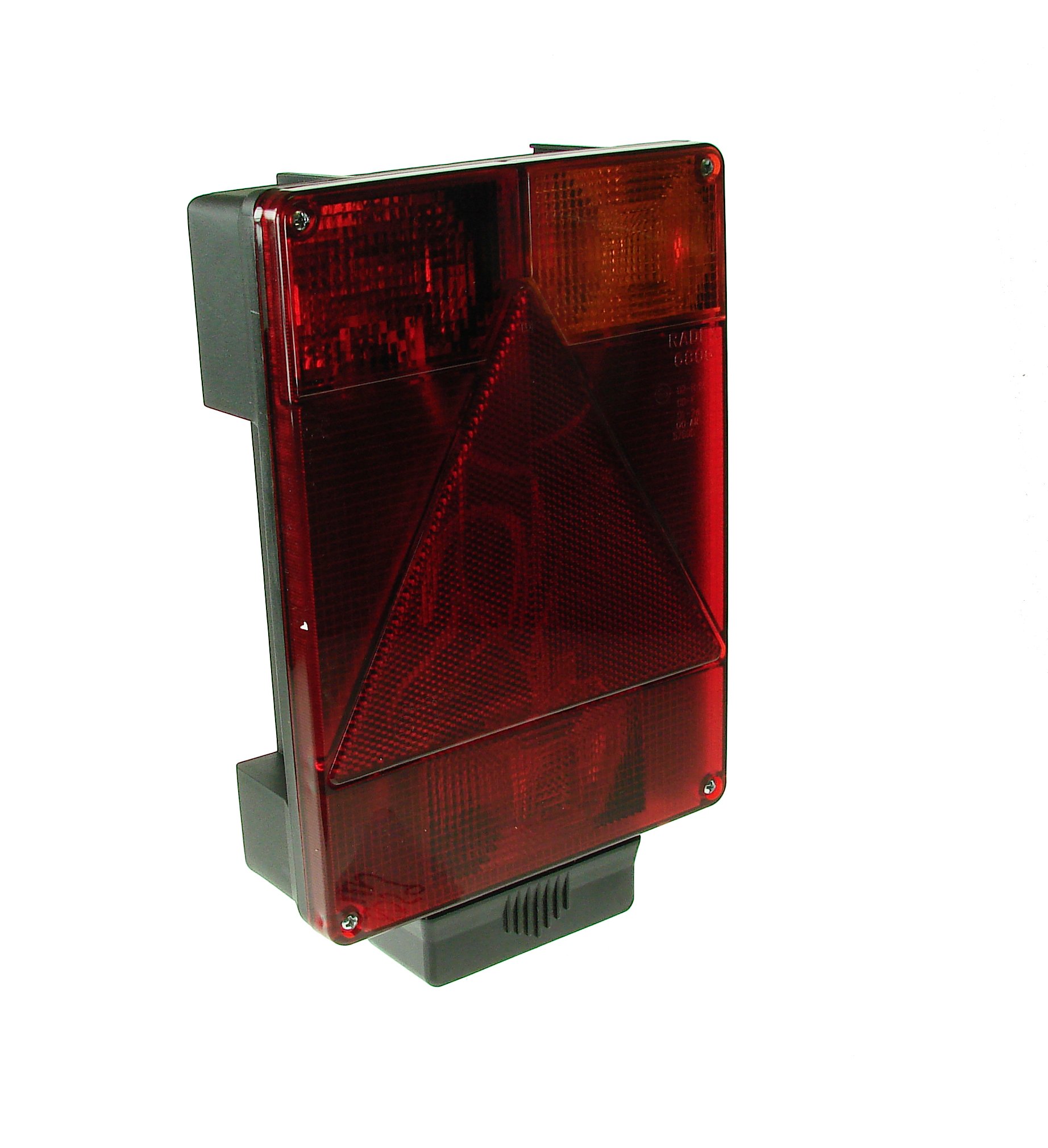

The Radex 6800 right-hand rear combination lamp (MPN 763 707) is a rectangular, bulb-type unit that brings together stop, tail, indicator, rear fog and reflector functions in a single housing for 12V trailer lighting systems. It uses the Radex 5+4 pin twin connector arrangement, allowing quick connection to compatible Radex looms and junction boxes. Supplied with bulbs fitted, the lamp is stud-mounted to the vehicle body or lighting board and is intended for the offside (right-hand) rear position. The design is E-approved for road use and is widely used across general duty trailers, plant and equipment transporters, and other commercial towing applications that use the Radex 6800 pattern. A matching left-hand unit is available separately, and a service replacement lens is offered under Maypole MP806BR.
Key Features:
- Functions: stop, tail, indicator, rear fog and reflector in one unit
- Orientation: right-hand (offside) fitment
- Voltage: 12V bulb type; bulbs included as standard
- Connection: Radex twin connector, 5-pin + 4-pin (5+4) layout
- Pattern: Radex 6800 rectangular rear combination lamp
- Compliance: E-marked/E-approved for road use
- Mounting: rear stud mounting on the lamp body
- Service parts: compatible spare lens Maypole MP806BR
Typical Applications:
Fitted to the rear offside of trailers and towed equipment using Radex 5+4 pin wiring systems, including general duty trailers, flatbeds, plant and machinery transporters, boat trailers and agricultural trailers. Suits installations built around the Radex 6800 pattern where a right-hand rear combination lamp with integrated fog and reflector functions is required.
Also known as:
Maypole part number MP8059BRN
Radex 6800 RH rear combination lamp
5+4 pin Radex rectangular rear lamp, right-hand
Bulb trailer tail/stop/indicator/fog lamp, RH
Product Specifications
| L&S Part No. | 763 707 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
