Description
Overview:

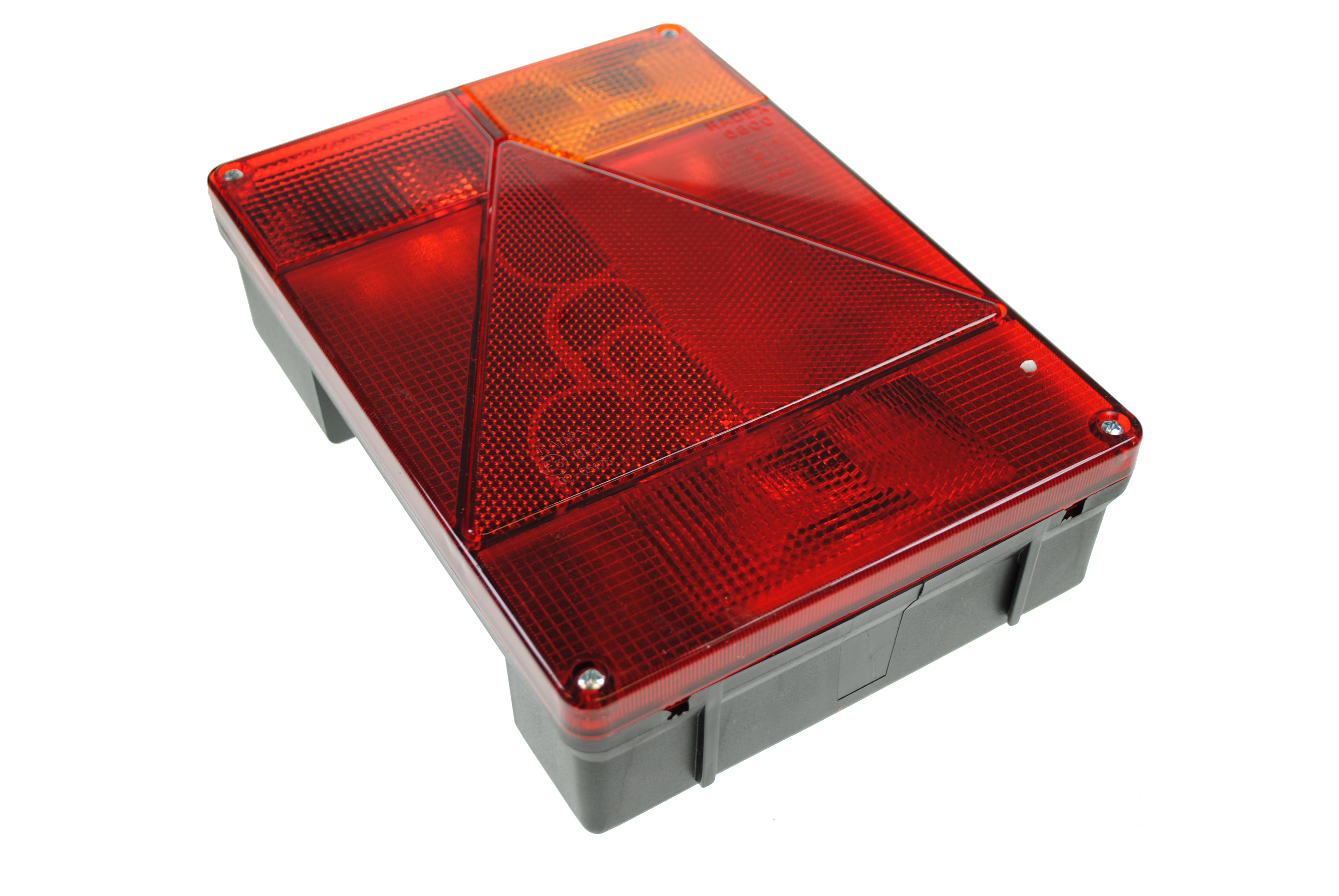

The Radex 6800 Rectangular Right Hand Rear Combination Lamp (MPN 763 662) is a 12V bulb-type rear light unit designed for trailers and towed equipment using the Radex 6800 pattern. It provides the core rear lighting functions in a single housing, covering stop, tail, indicator, rear fog, reflector and number plate illumination on the right-hand side. The lamp connects via Radex 5+4 pin plug-in connectors for quick installation and straightforward replacement of existing units. It is supplied complete with bulbs and is E approved for on-road use. Suited to general-purpose trailers, plant and equipment transporters, horseboxes, caravans and light commercial bodies operating on 12V systems, this right-hand lamp pairs with the corresponding left-hand unit to complete a matching set. Stud mounting on the rear of the housing allows secure fitment to the vehicle or bodywork.
Key Features:
- Right-hand rear combination lamp for Radex 6800 series
- Functions: stop, tail, indicator, rear fog, reflector and number plate illumination
- 12V bulb configuration; bulbs included as standard
- 5+4 pin Radex-style plug connections for fast, reliable wiring
- E approved for road use
- Stud-mount design for secure installation (fixings on rear of unit)
- Rectangular form factor to match Radex 6800 footprint
- Spare lens available separately: MP806BR
Typical Applications:
Fitted to the right-hand rear of road trailers, plant and machinery transporters, boat trailers, caravans, horseboxes and light commercial vehicle bodies that use Radex 6800 pattern lights. Suitable as a direct replacement on systems with Radex 5+4 pin connections, and used alongside the matching left-hand lamp to complete the rear lighting set.
Also known as:
- Maypole part number MP8059BR
- Radex 6800 RH Rear Lamp
- Right-Hand Rear Combination Light, 5+4 Pin
- Rectangular Trailer Tail Light RH
- Rear Cluster Lamp Right Hand
Product Specifications
| L&S Part No. | 763 662 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
