Description
Overview:

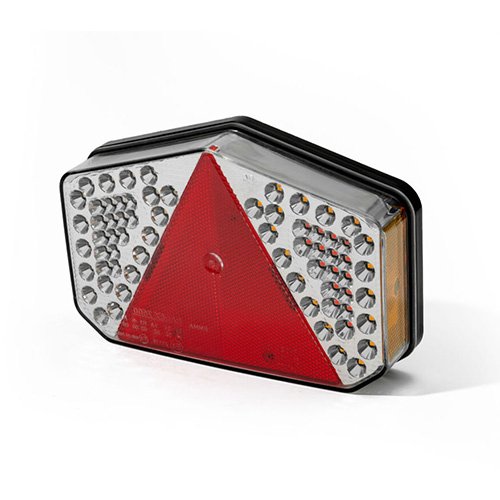

Right-hand, horizontal LED rear combination lamp from the Radex 7601 series, providing stop, tail, indicator, reverse, rear fog, rear reflector and side marker functions in a single unit. It connects via a 6‐pin Radex quick-connect for plug-in installation to compatible looms and features a chrome-effect styling. Multi-voltage electronics (10-30V) suit both 12V and 24V systems. Designed for stud mounting at the rear/right side on trailers and towed equipment.
Specification:
- Functions: stop, tail, indicator, reverse, rear fog, rear reflector, side marker
- Orientation: right-hand, horizontal
- Voltage: 10-30 V DC (suitable for 12 V and 24 V systems)
- Connection: 6‐pin Radex style plug (quick-connect)
- Series: Radex 7601
- Mounting: stud mount
- Compliance: EMC compliant, E‐marked
- Finish: chrome-effect design
- Supplied ready to fit
Typical Applications:
Right-hand rear lamp for road trailers, plant transporters and similar towed equipment using Radex 6‐pin lighting looms. Suitable where a compact, all-in-one LED rear light with multi-voltage capability is required.
Product Specifications
| L&S Part No. | 763 927 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Provides stop, tail, indicator, reverse, fog, reflector, side marker functions - 6-pin Radex quick-connect for easy installation - Multi-voltage 10-30V for 12V and 24V systems - Right-hand, horizontal orientation for trailers - EMC compliant and E-marked for road use |
